Check valve assy
M588-08-880 Issue D

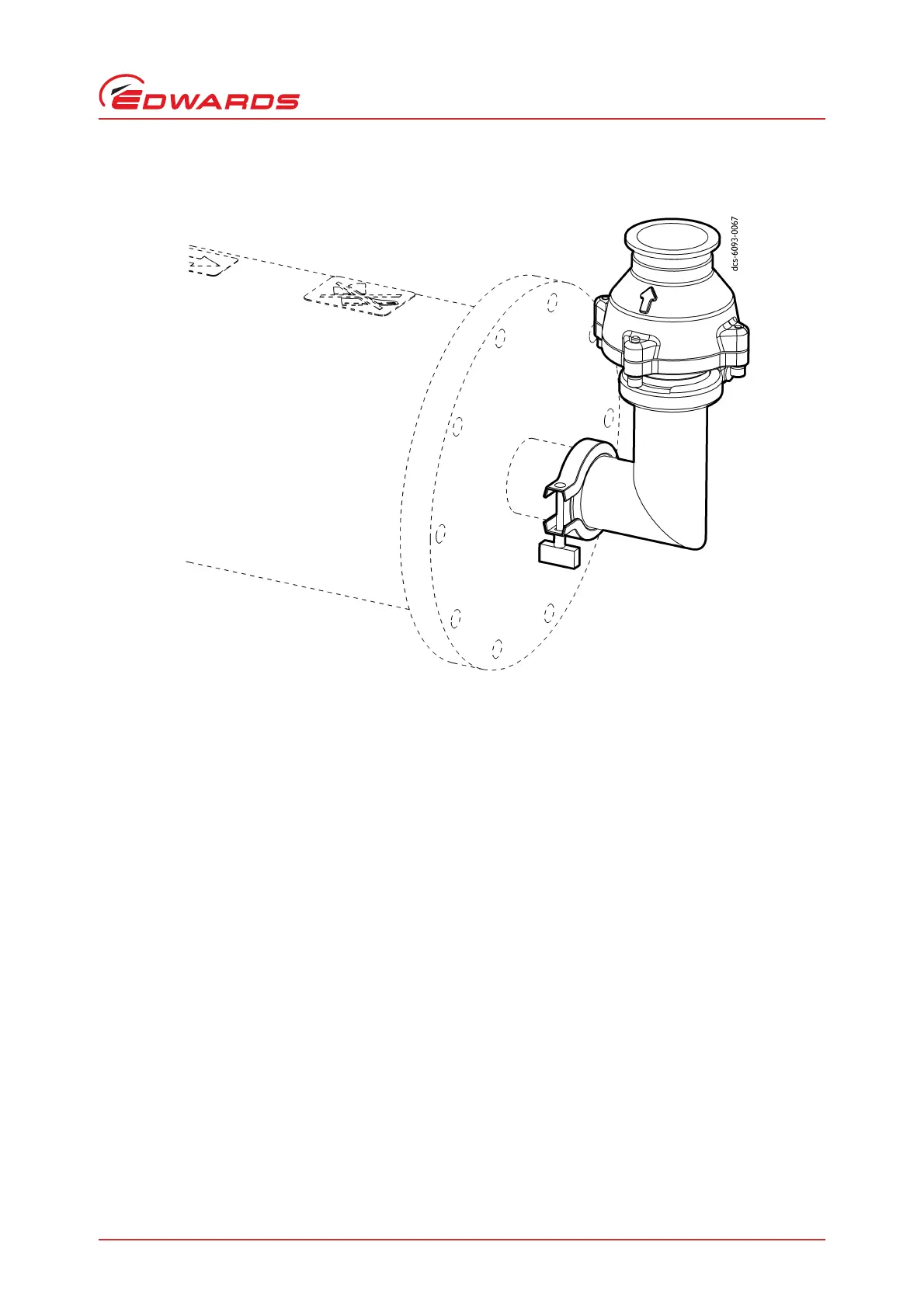

Figure 70 - Horizontal silencer
7.3.2 Installation of a check valve to a silencer
1. Remove the protective caps from the NW flanges from the check valve.
2. Fit the check valve to the outlet flanges of the silencers as shown in Figure 69 and Figure 70.
3. Ensure that the arrow on the check valve body is pointing in the direction of flow away from the Silencer body.
7.4 Storage and disposal
7.4.1 Storage
If the check valve will not be used immediately:
1. Drain and clean the check valve.
2. Protect the flange faces and place the check valve in a sealed polythene bag.
3. Store in a cool dry place.
7.4.2 Disposal
Dispose of the check valve in accordance with all local and national safety and environmental requirements.
