Inlet valve
M588-08-880 Issue D

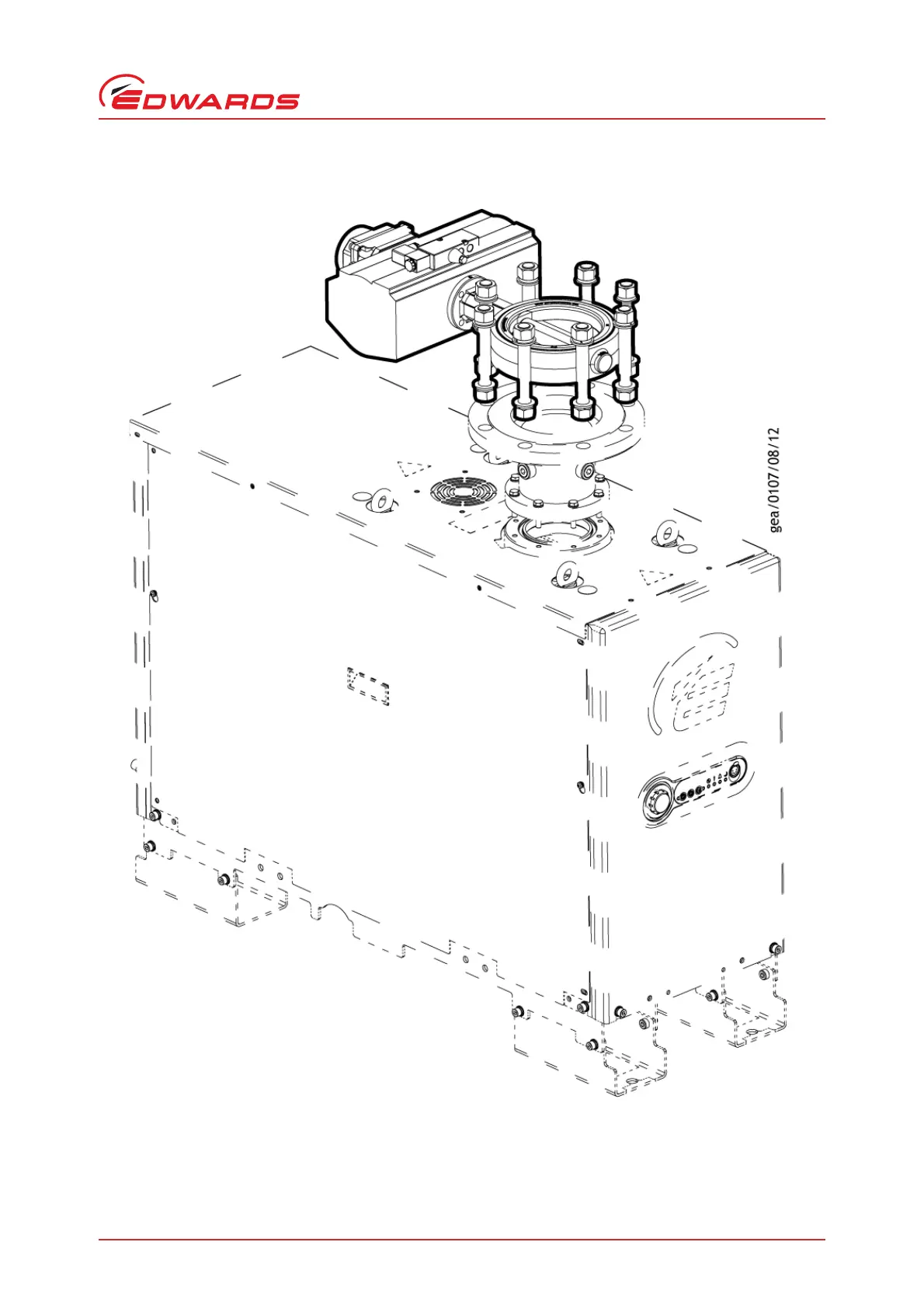

Figure 28 - Inlet valve installation and orientation
Note: Figure 28 shows the orientation of the valve in the recommended position. The valve may be installed in
other orientations according to specific requirements.
