Inlet spool

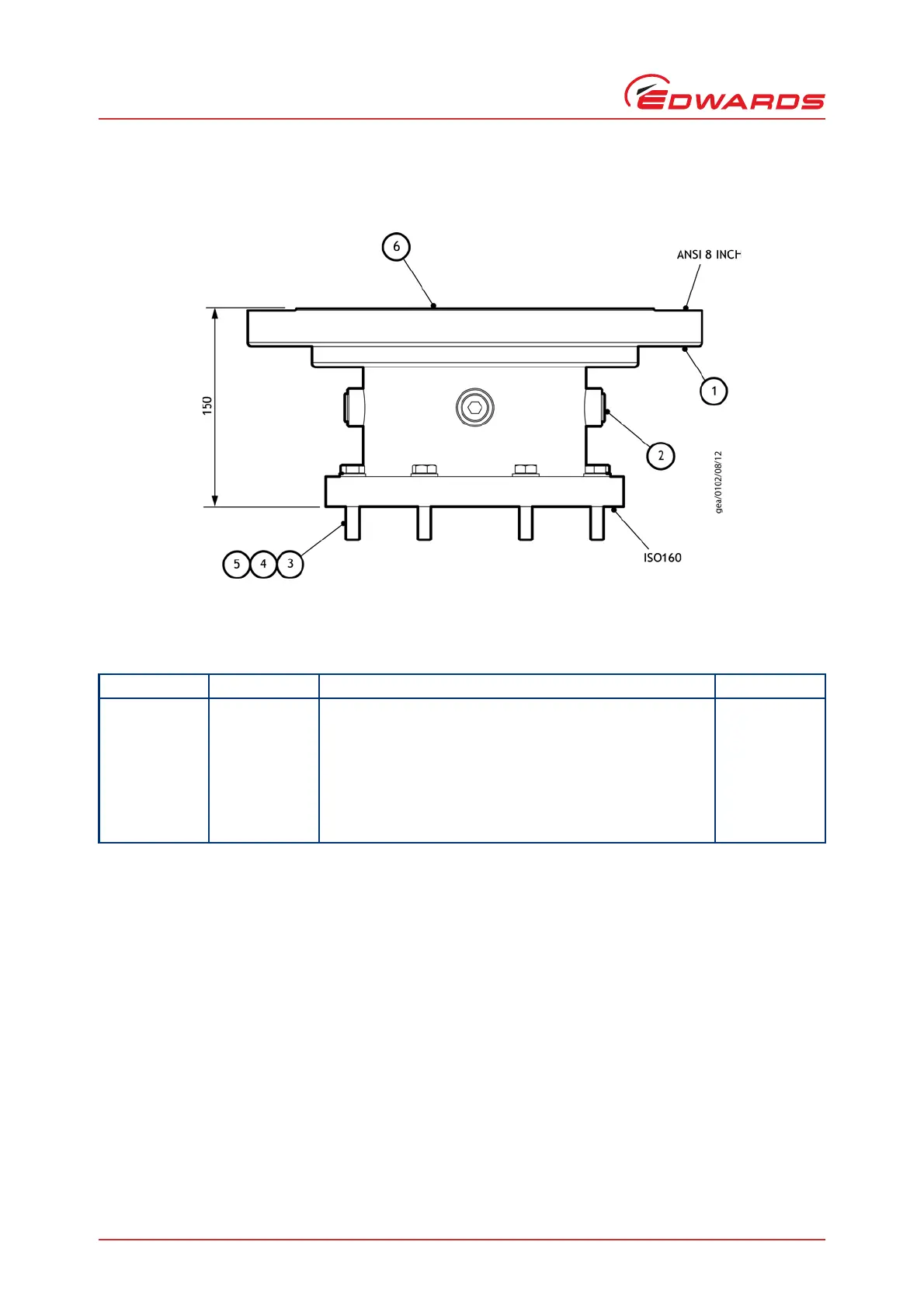

Figure 16 - M59848134 stainless steel inlet spool ISO160 - ANSI 8 inch
Table 15 - M59848134 stainless steel inlet spool ISO160 - ANSI 8 inch check list
Item Qty Description Check
1 1 ISO160 - ANSI 8 inch inlet spool - stainless steel 
24½ inch BSP taper plug 
3 8 M10 washer normal - stainless steel 
4 8 M10 x 45 hex head screw - stainless steel 
5 8 M10 washer single coil spring - stainless steel 
6 1 Gasket 8 inch ANSI x 2.5 thick 
