Inlet valve
6. Connect the other end of the cable to the 15 way socket on the back panel and secure the cables to the pump
using the P-clips supplied and the screws used on the pumps panels.

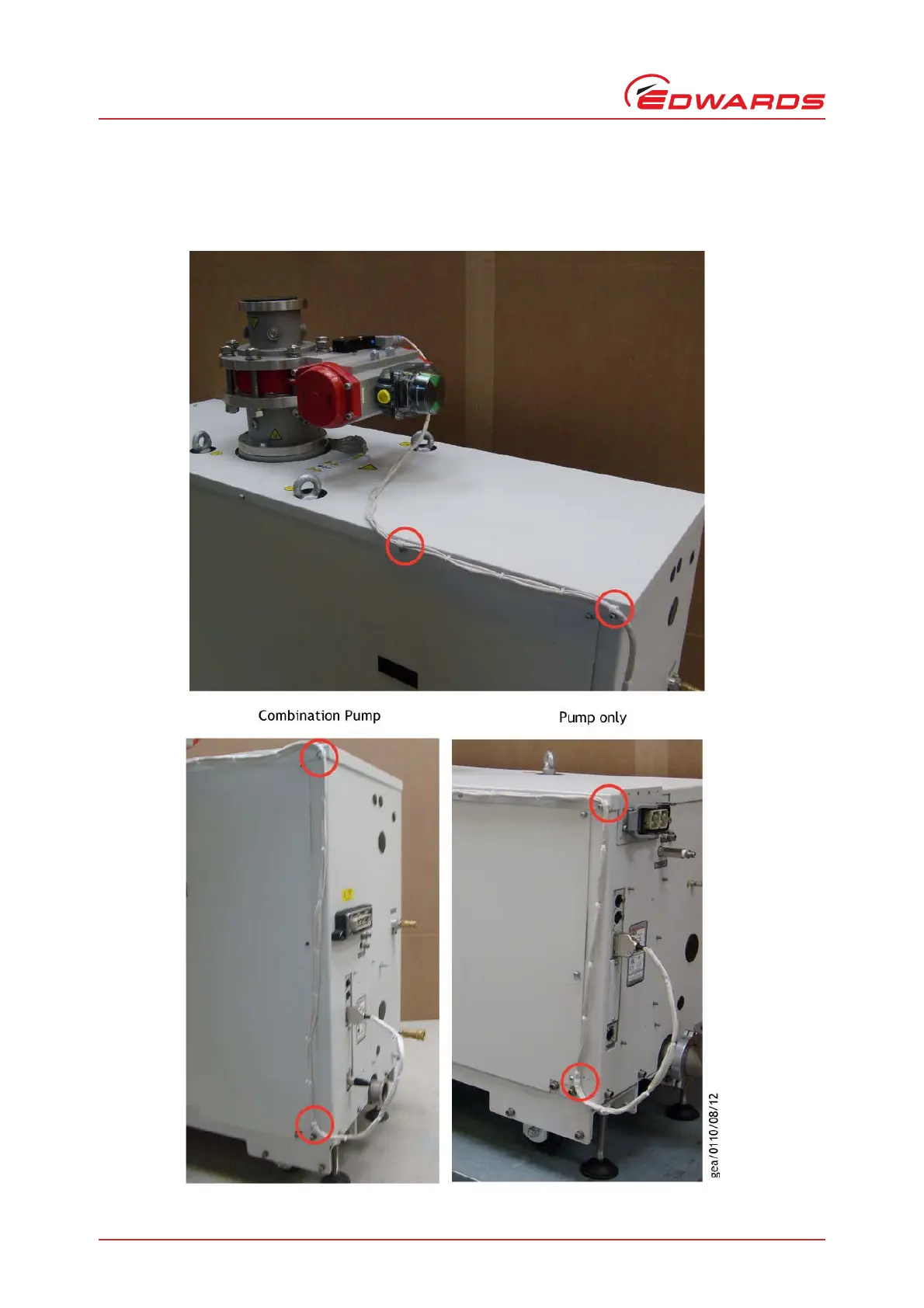

Figure 31 - Clip cable positions
