Temperature transmitter
M588-08-880 Issue D
9 Temperature transmitter
9.1 Description
The temperature transmitter is a type PT100 Resistance Temperature Dector (RTD) that uses predictable resistance
to measure temperature response. The temperature transmitter is used to temperature measurement and control.
9.2 Physical data

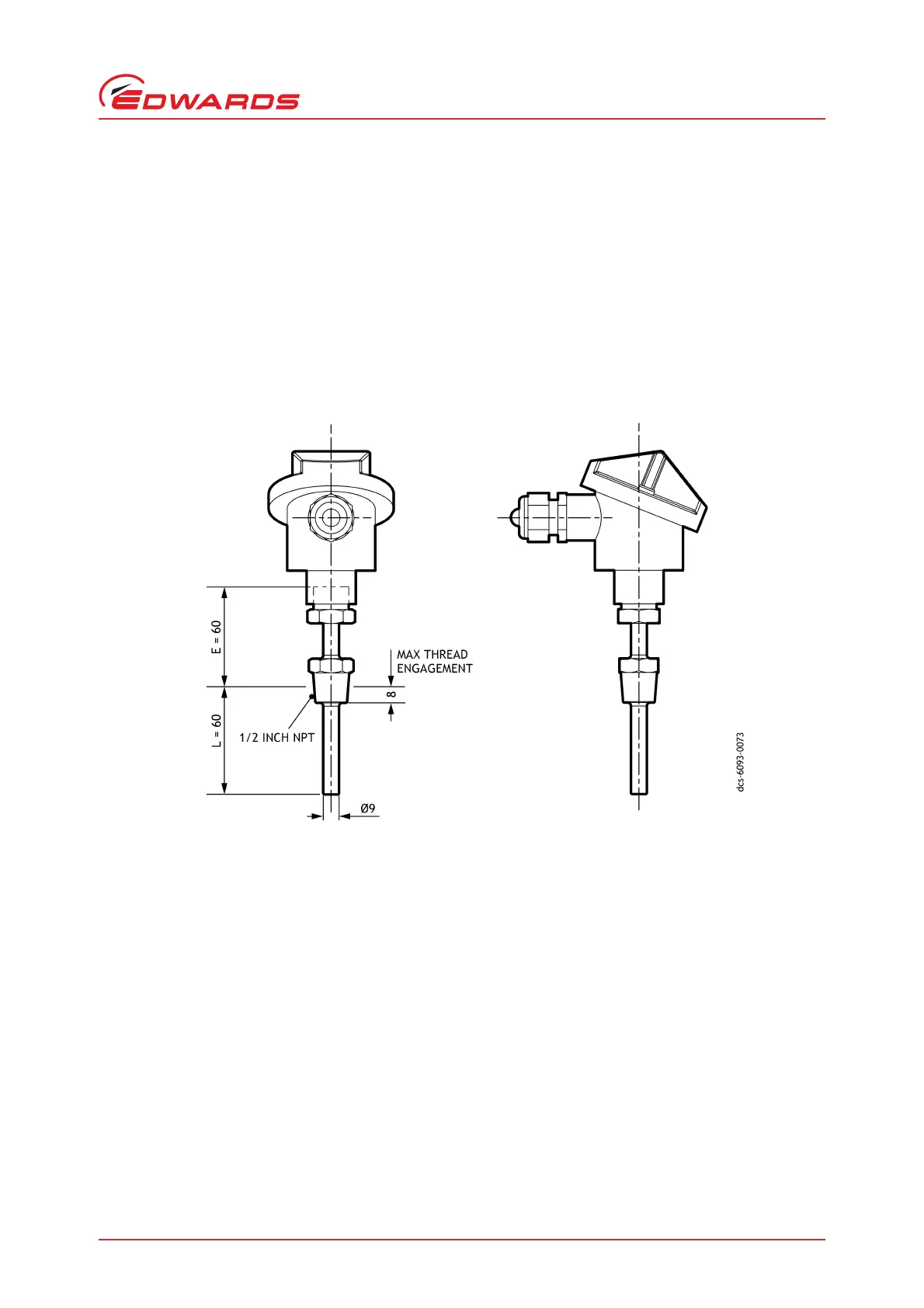

Figure 85 - Temperature transmitter assembly - GXS pump only (probe length 60 mm)
