Exhaust silencer mounting assembly
M588-08-880 Issue D
6.4.4 Installation of vertical silencer assy
When fitting the exhaust silencer, ensure that the arrow on the exhaust Silencer body points in the direction of
the gas flow; away from the pump exhaust outlet.
These exhaust silencers can be rear mounted as shown in Figure 60 and side mounted as shown in Figure 61.
The silencers are connected directly to the pumps exhaust using a trapped O-ring and clamp.
Note: The orientation of the elbow and the support leg lengths differ depending on use. The short leg is used for
assembly with side exhaust pumps and the long leg is used for assembly with rear exhaust pumps. This
facilitates the use of the support foot (refer to Figure 60 and Figure 61).

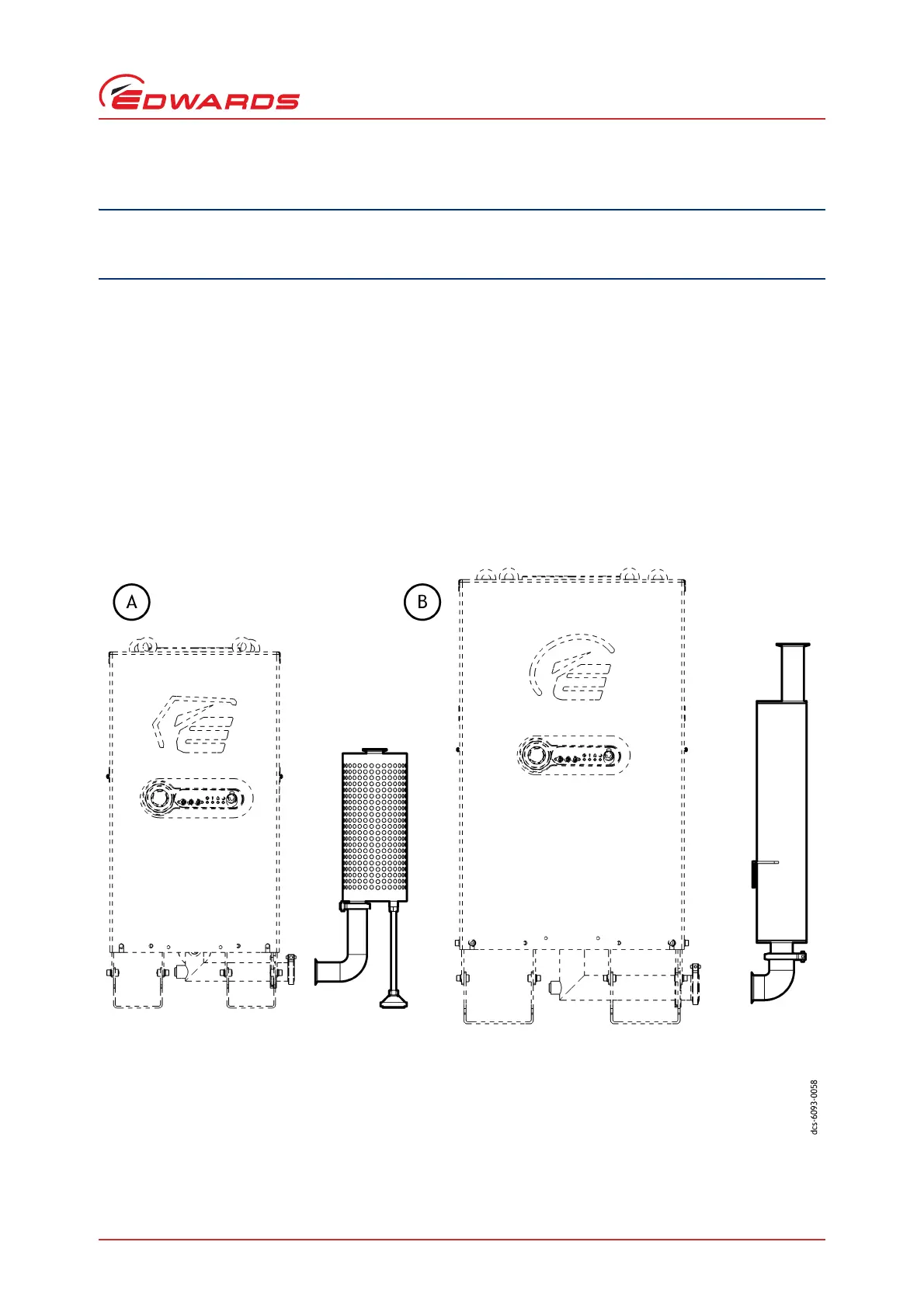

Figure 61 - Installation of the vertical silencer - side mounted
A. 100 ctr pumps
B. 150 ctr pumps
