Exhaust silencer
5.1 Description
There are two types of exhaust silencer that attenuate the noise from the GXS dry vacuum pumping systems.
Refer to Figure 42. The first exhaust silencer type is manufactured in both painted carbon steel and stainless steel
options (to suit applications) and is designed to hold a volume of liquid or particulates that maybe produced during
your process. This exhaust silencer can be drained without disassembly; it is also possible to clean and remove any
contaminates with minimal part removal.

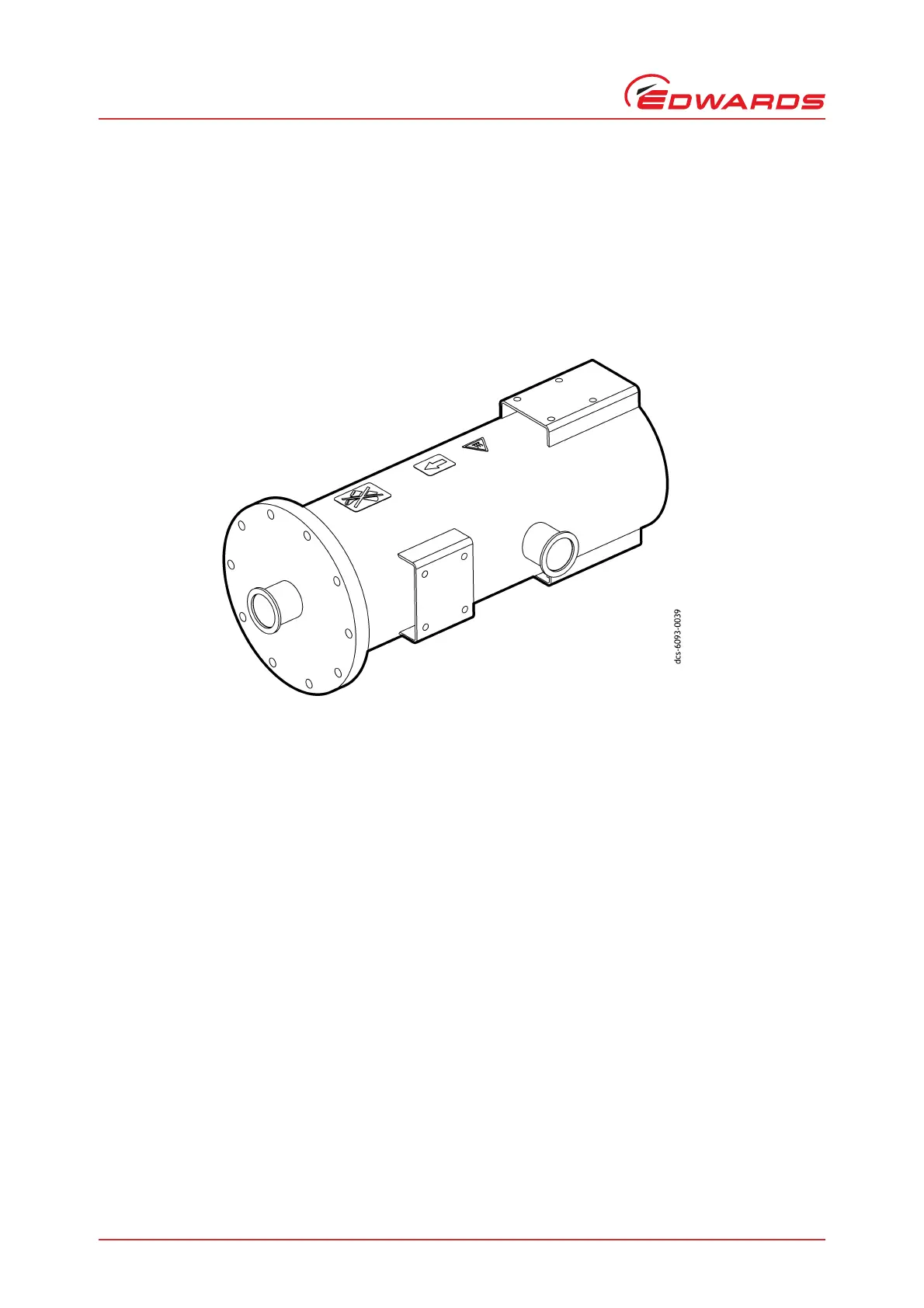

Figure 42 - Wet process exhaust silencer
Refer to Figure 43. The second exhaust silencer type is mounted vertically. Manufactured in stainless steel only, this
exhaust silencer is designed for clean and dry processes. Easy to disassemble from the GXS pumping system, it is
simple to clean and remove any contaminates with minimal parts removal.
