Exhaust silencer mounting assembly
M588-08-880 Issue D
6 Exhaust silencer mounting assembly
6.1 Description
This exhaust silencer is mounted horizontally and either bolted to the side of the pump when a side exiting exhaust
is fitted (refer to Figure 50), or free standing at the rear of the pump when a rear exiting exhaust is fitted (refer to
Figure 51).

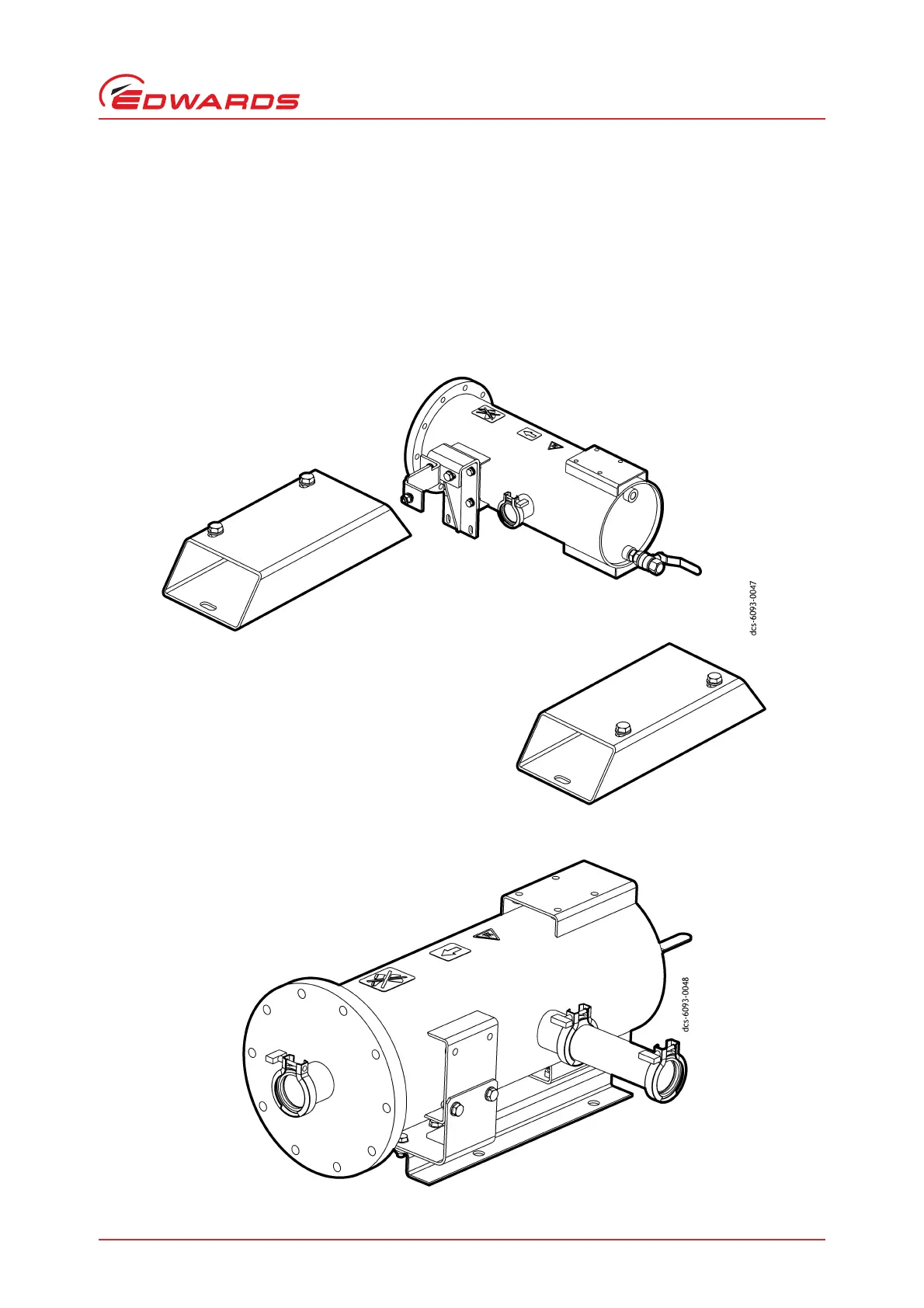

Figure 50 - Side exiting exhaust mounting
Figure 51 - Rear exiting exhaust mounting
