Inlet spool
2.4 Installation
2.4.1 Unpack and inspect
Remove all packing materials and protective covers and visually check the Inlet spool for signs of damage. If the Inlet
spool is damaged, notify your supplier and the carrier in writing within three days; state the item number of the Inlet
spool together with your order number and your supplier's invoice numbers. Retain all packing materials for
inspection. Do not use the Inlet spool if it is damaged.
Check that your package contains the items listed in the Table 1 to 20. If any of these items are missing, notify your
supplier in writing within three days.
If the inlet spool is not to be used immediately, store as described in Section 2.8.

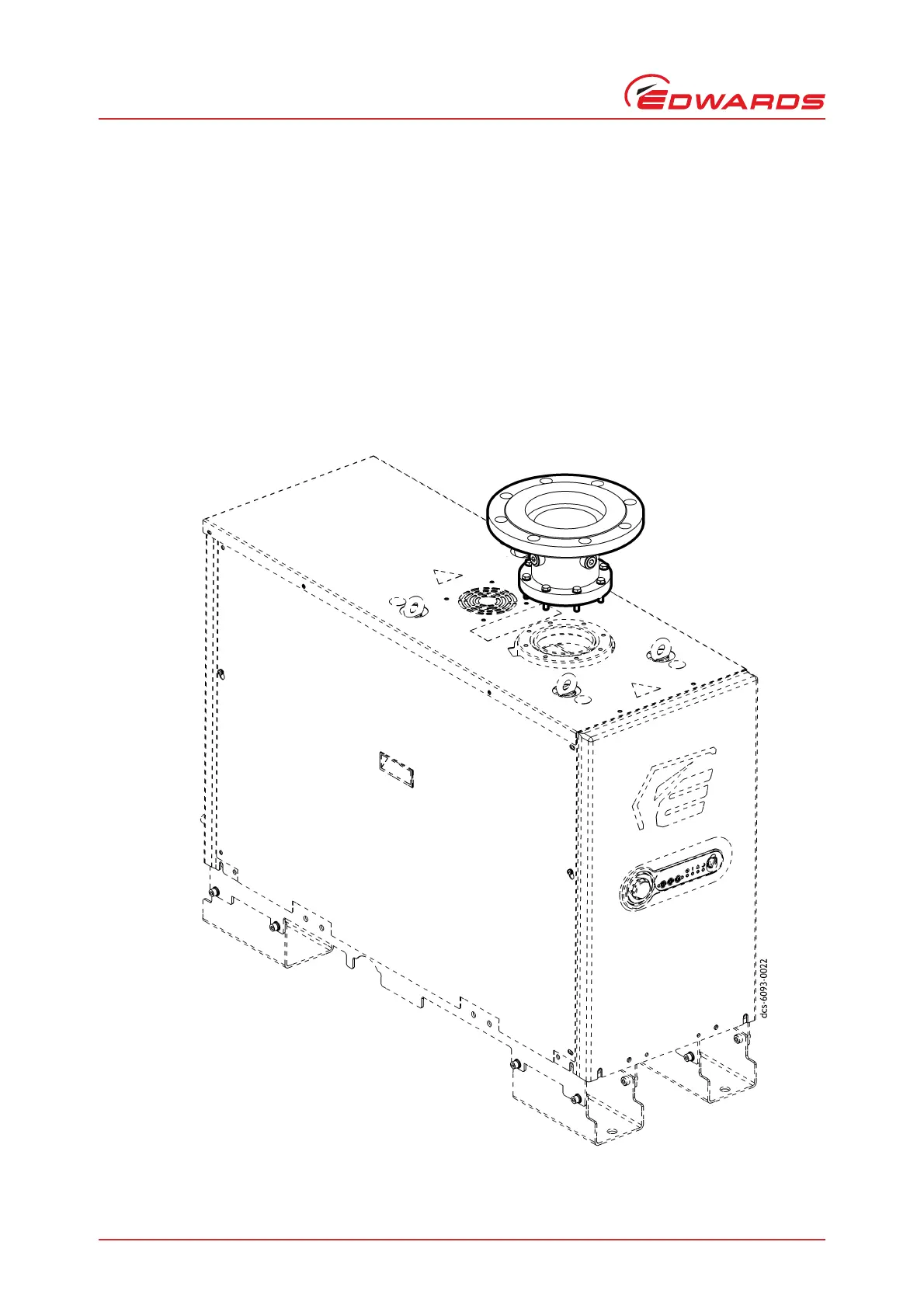

Figure 22 - Position of inlet spool
Note: Orientation of instrument ports.
