Inlet filters
M588-08-880 Issue D
4.2 Physical data
4.2.1 Carbon steel inlet filters

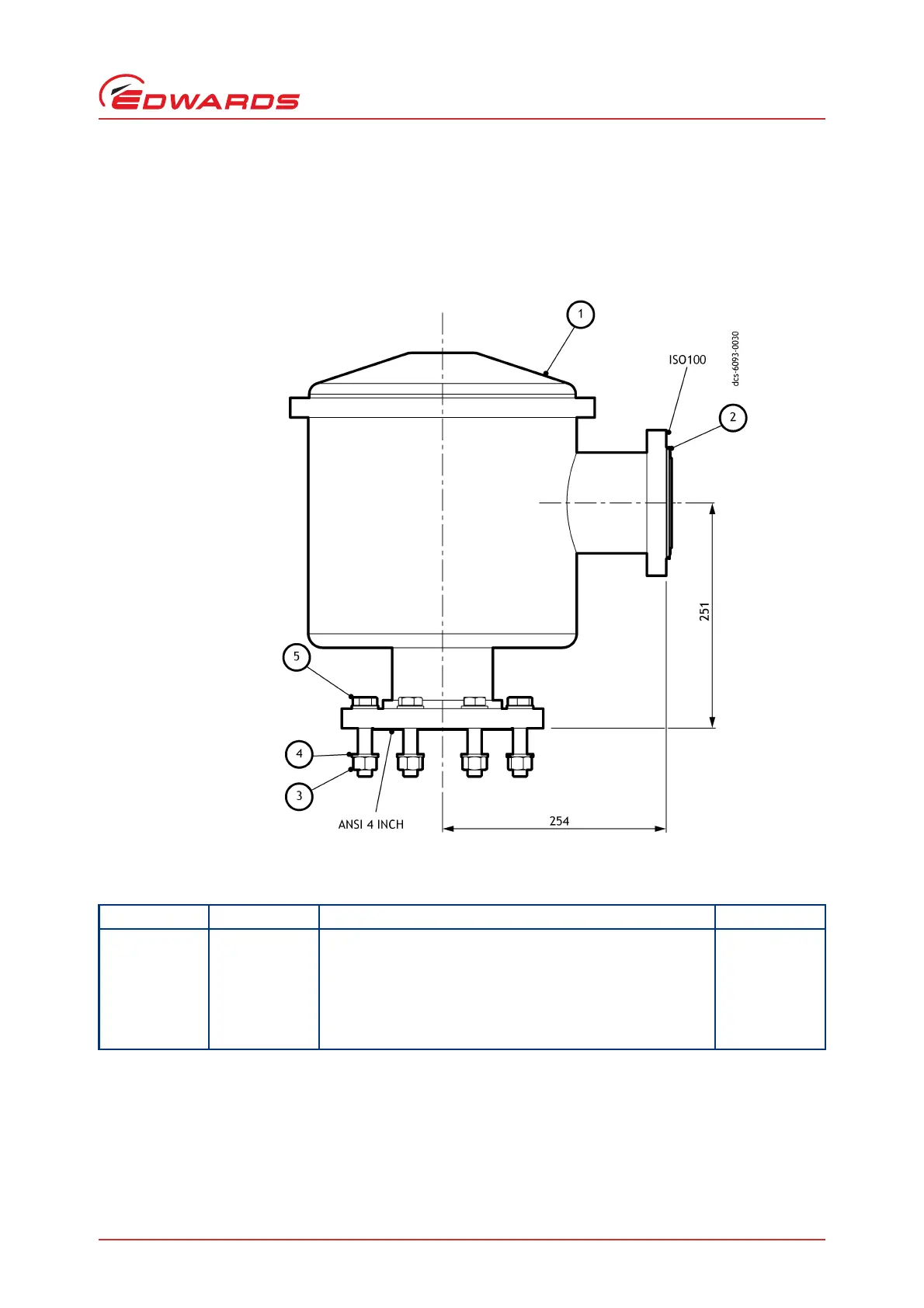

Figure 34 - M58808005 carbon steel inlet filter ANSI 4 inch - ISO100
Table 43 - M58808005 carbon steel inlet filter ANSI 4 inch - ISO100 check list
Item Qty Description Check
1 1 ANSI 4 inch - ISO100 inlet filter - carbon steel 
2 1 ISO100 trapped O-ring (Fluoroelastomer) 
3 8 M8 full nut - stainless steel 
4 16 M8 washer normal - stainless steel 
5 8 M8 x 60 hex head screw - stainless steel 
