FloBoss 407 Instruction Manual
5-4 Rev 5/00
5.3 KEYPAD FUNCTIONS
Table 5-1 defines the function associated with each of the keypad labels.
5.3.1 Normal Mode
The keypad functions shown in the Normal Mode column of Table 5-1 operate when the
key, such as I/O Summary, is independently pressed. Refer to Figure 5-3.
5.3.2 Edit Mode
The functionality listed in the Edit Mode column of Table 5-1 occurs when the
EDIT
key is first pushed. This mode continues until the
CANCEL
or
ENTER
key is pressed.
The
ENTER
key typically saves the edit to memory. Refer to Figure 5-3.
5.3.3 Alt Mode
The functions listed in the Alt Mode column of Table 5-1 are activated by pressing and
releasing the
ALT
key. Then press the desired key. The
ALT
key must be pressed each
time to activate the
ALT
mode. Refer to Figure 5-3.

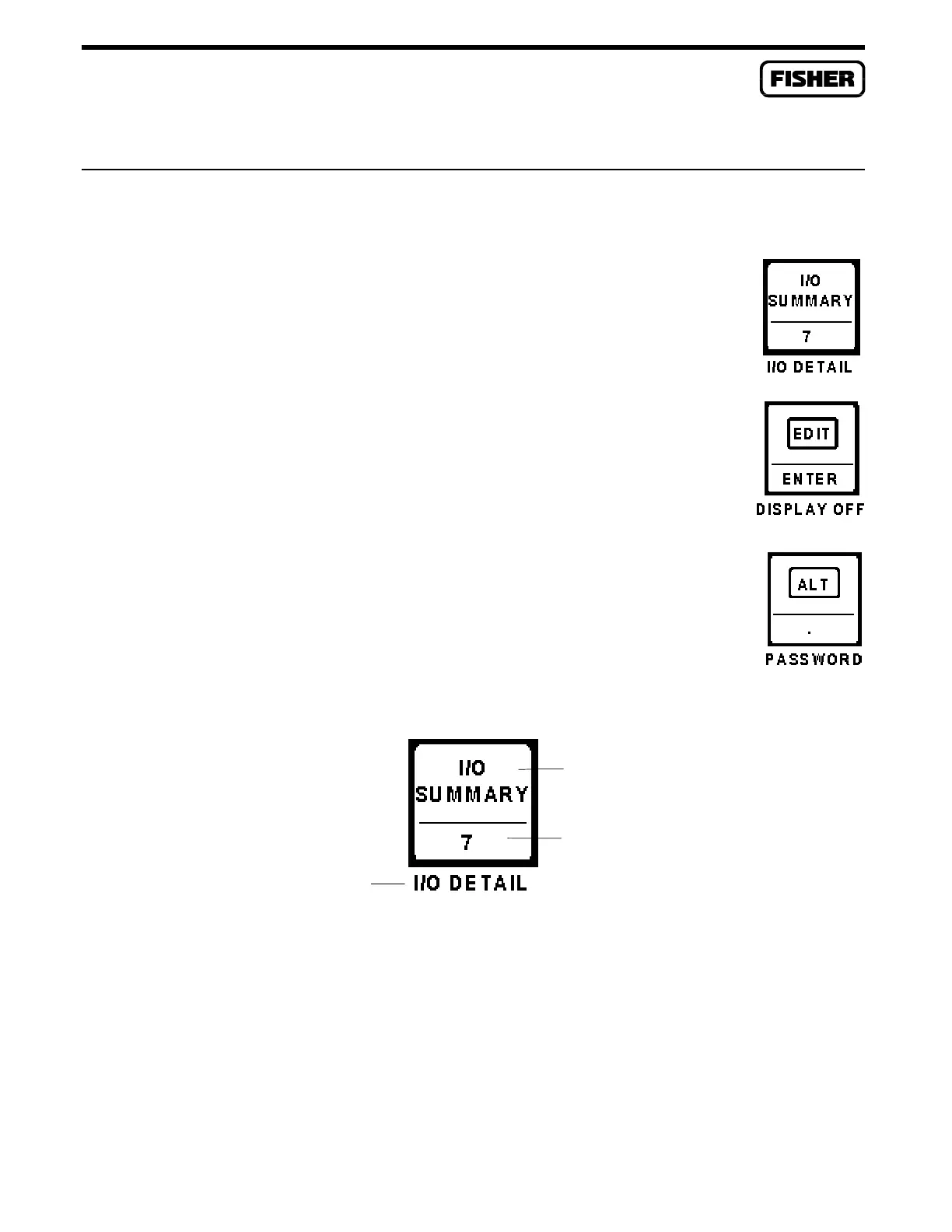

Figure 5-3. Operations Key
Press Specific
Ke
Press EDIT,
then the Key
Press ALT,
then the Key
To Next Page
