Operation of the system
Status indicators
41

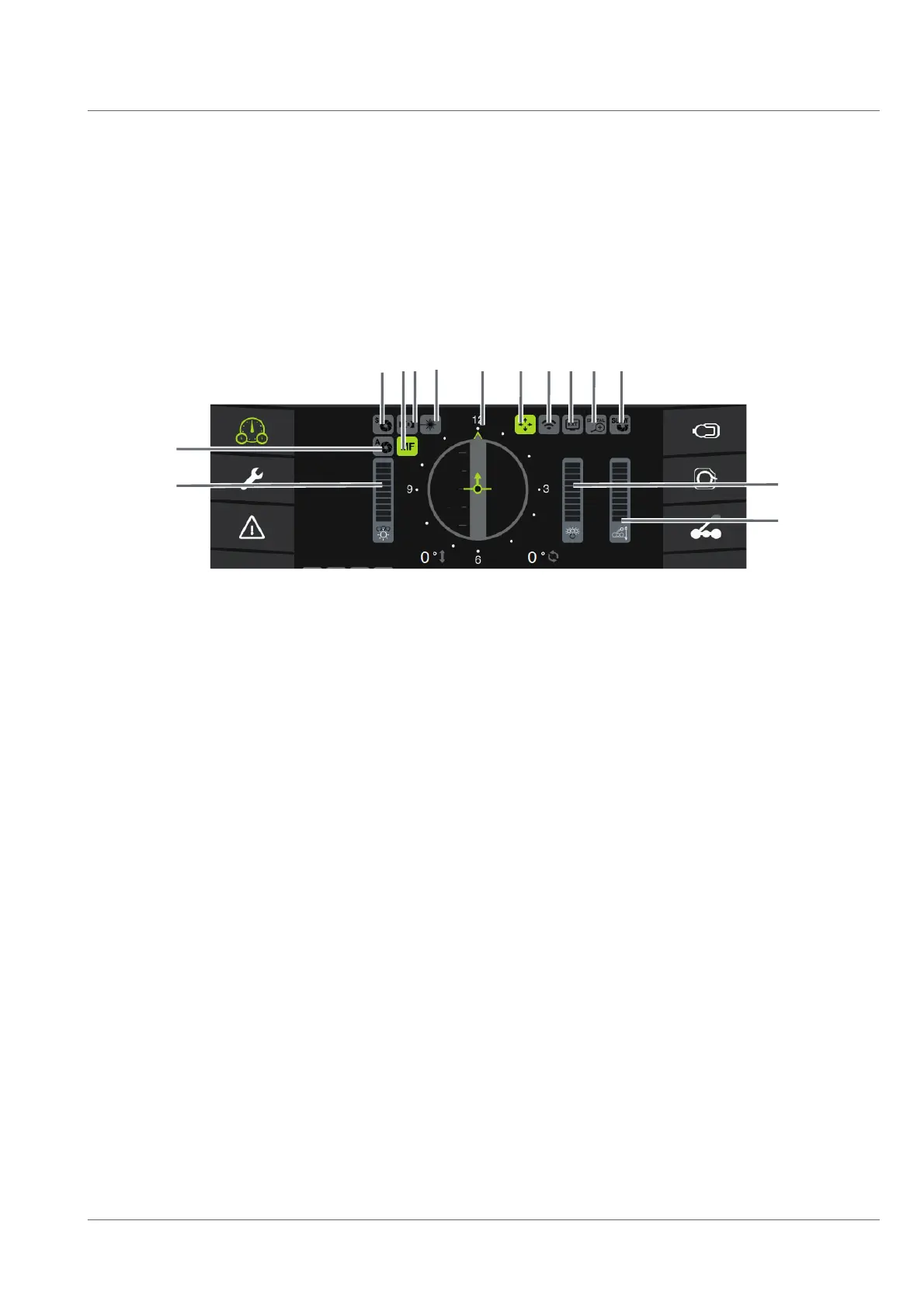

Status indicators
Status indicators camera
2
3
4
1
56
7
8
9
12
13
14
11
10
1
Shutter
2
Manual
focus
3
Backeye
camera
4
Laser
5
Roll and pitch indicator camera (in degree)
6
Operating
mode
7 Location transmission
8
External video source
9
Digital
zoom
10
Slow
shutter
11
Auxiliary light and intensity (in percent)
12
Camera elevator (in percent)
13
Camera light and intensity (in percent)
40
42
