Operation of the system
Status indicators
43

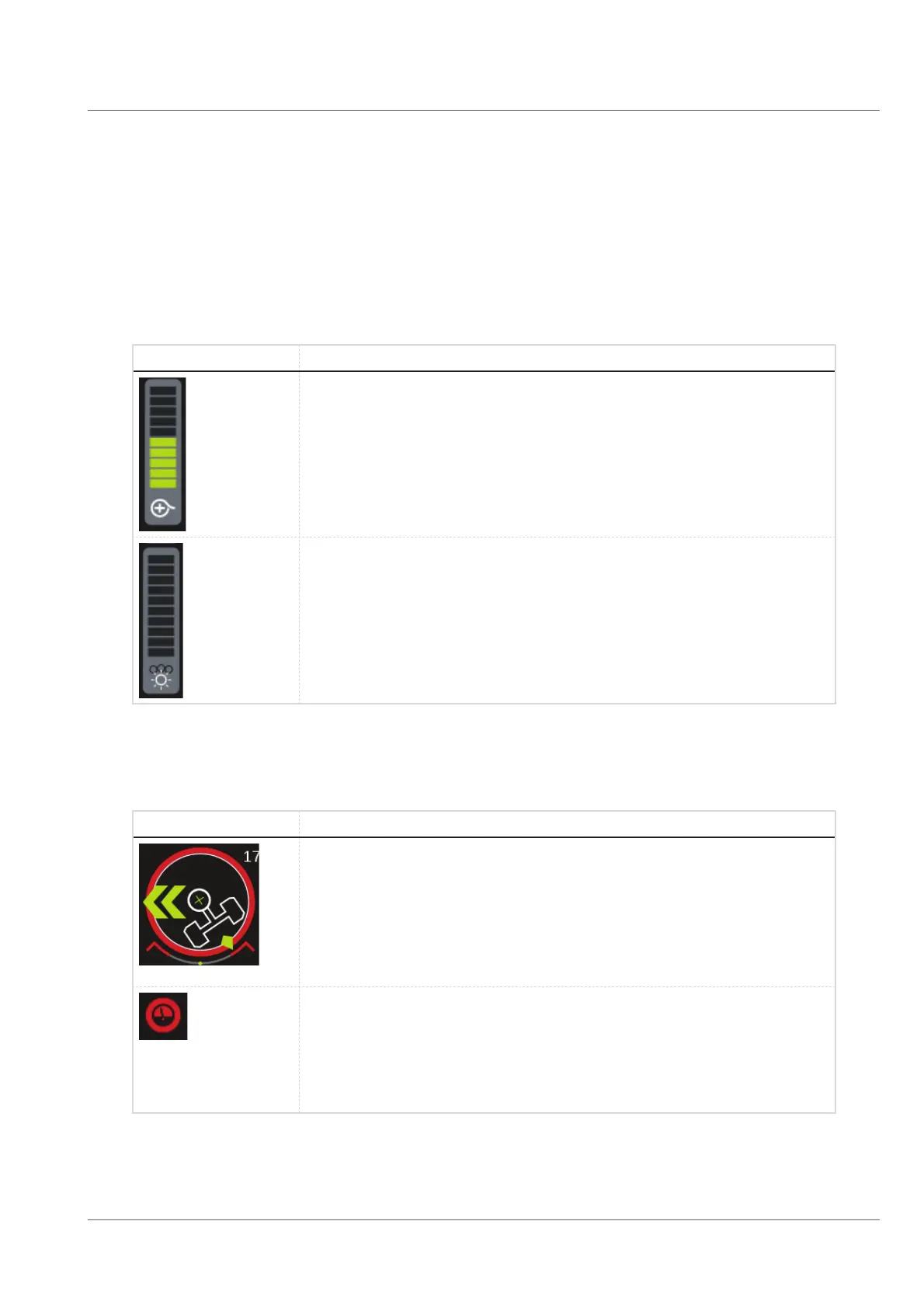

Status indicator modes
The status displays of the functions camera light, auxiliary light, camera elevator, cable reel speed and cable reel force are depicted as bar charts.
The selected intensity of the camera light / auxiliary light, the height of the camera elevator and the set speed / force and rewinding direction of
the cable reel are indicated in percent. One bar corresponds to 10 percent.
Status indicator Status
Function selected (example 50 %)
Function not selected
Warnings
Warning Description
Warning: risk of crawler tipping over
When the crawler is tilting over to one side and there is a risk of tipping over, the ring of the pitch indicator
will turn red.
At the same time green arrow keys will be displayed indicating in which direction you need to counter-steer
in order to stabilize the crawler's position again. When reaching an uncritical position the warning will turn
off (example: steer to the left).
Pressure warning:
- Indicator ƃashes: pressure is too low
- Indicator is permanently on: pressure is too high
- Indicator permanently orange: Pressure warning, one or more of the connected components has less
than 500mbar internal pressure
