Operation of the system
System Settings
60
T

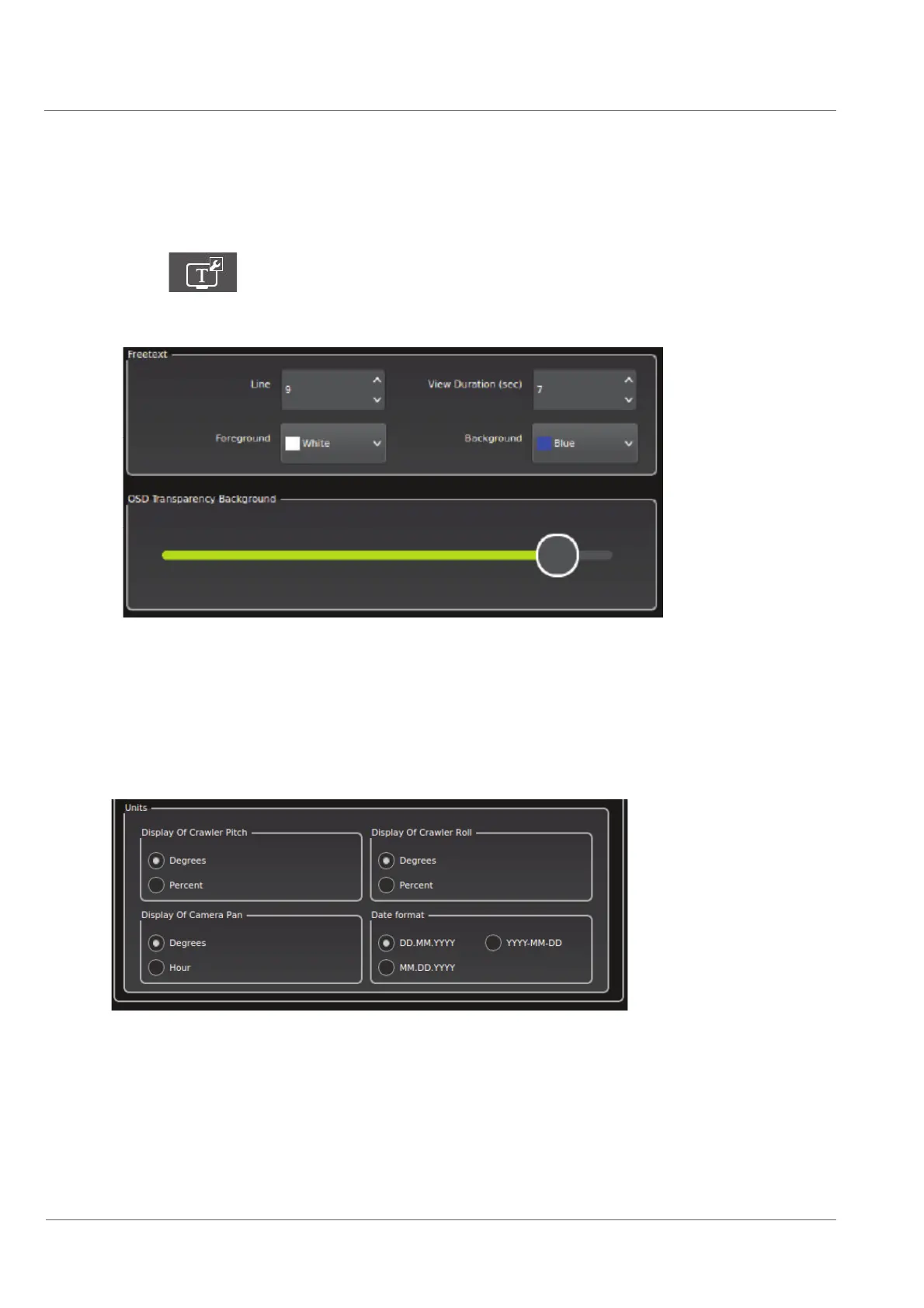

ext displays
• Press
to open up the text generator menu.
The
tab
Misc
will be displayed.
•
Enter the settings for the free text.
•
T
ouch the respective
Ƃ
eld and modify the values.
• Con
Ƃ
rm by pressing OK.
• Con
Ƃ
rm the changes by pressing OK.
• Press
the
Headlines
tab.
•
Select the desired display for the respective units.
• Con
Ƃ
rm the changes by pressing OK.
59
61
