Envirosight DCX5000 User Manual

Operation of the system

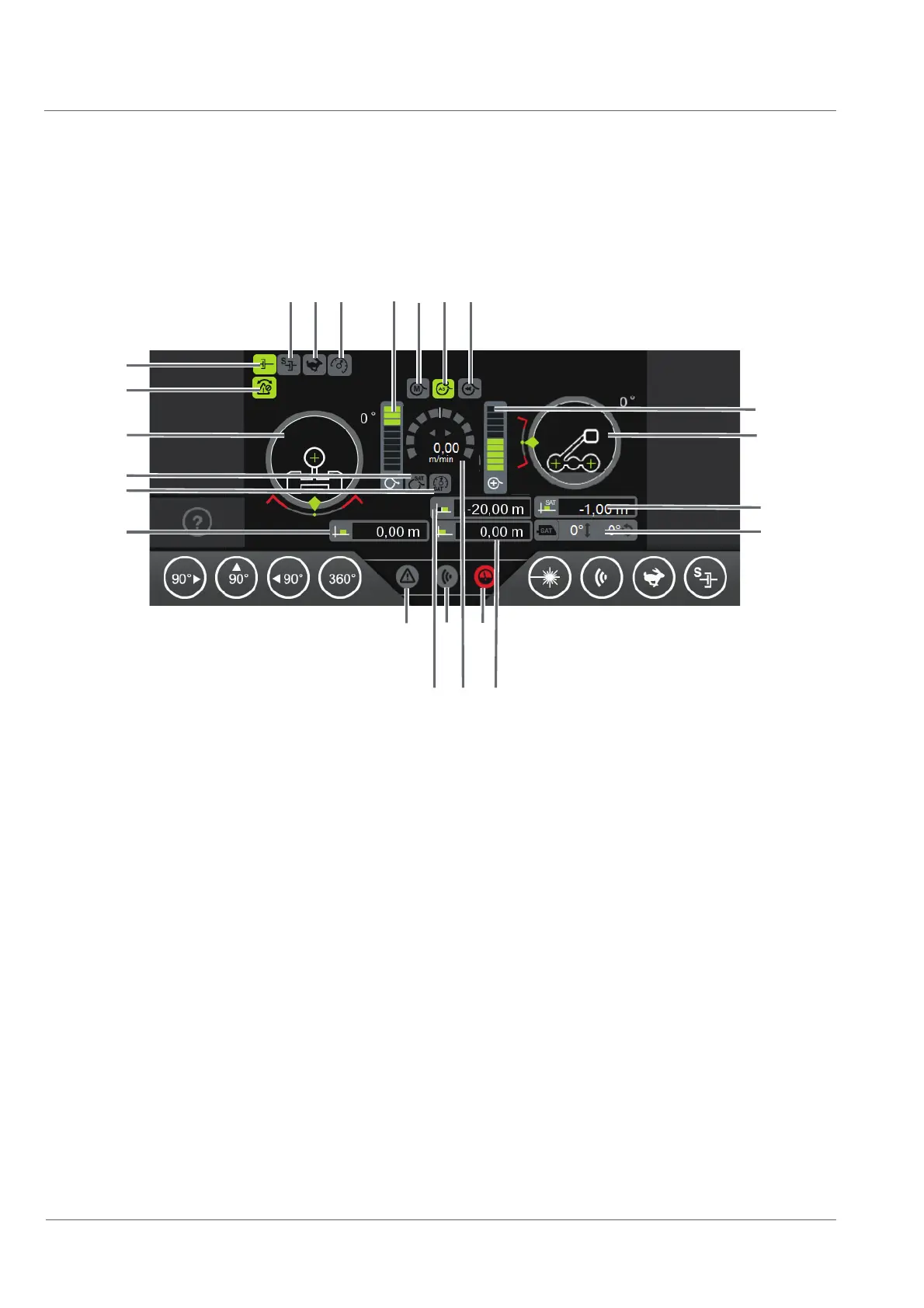

Status indicators
42
Status indicators crawler and cable reel
2
3
12
13
11
21
22
23
1
14
20 18 16
1517
19
456 89
10
7
1 Pitch indicator crawler (in degrees)
2 AntiRoll
3 Clutch
4 Clutch safety mode
5 Gears
6 Cruise control
7 Cable reel speed
8 Automatic / manual cable rewind
9 AutoStop
10 Cable reel invert mode
11 Cable reel force
12 Roll indicator crawler (in degrees)
13 SAT distance counter
14 Inclination and rotation of insertion unit (in degrees)
15 Total distance counter (in meters)
16 Pressure
17 Crawler speed (m/min)
18 Location transmission ([Ex] symbol with [Ex] components)
19 AutoStop
20 Errors / messages (Ƃlter with [Ex] components)
21 Section distance counter (in meters)
22 SAT cruise control
23 SAT cable reel
