Operation of the system
System Settings
67
•
Press the button you want to con
Ƃ
gur
e.
•

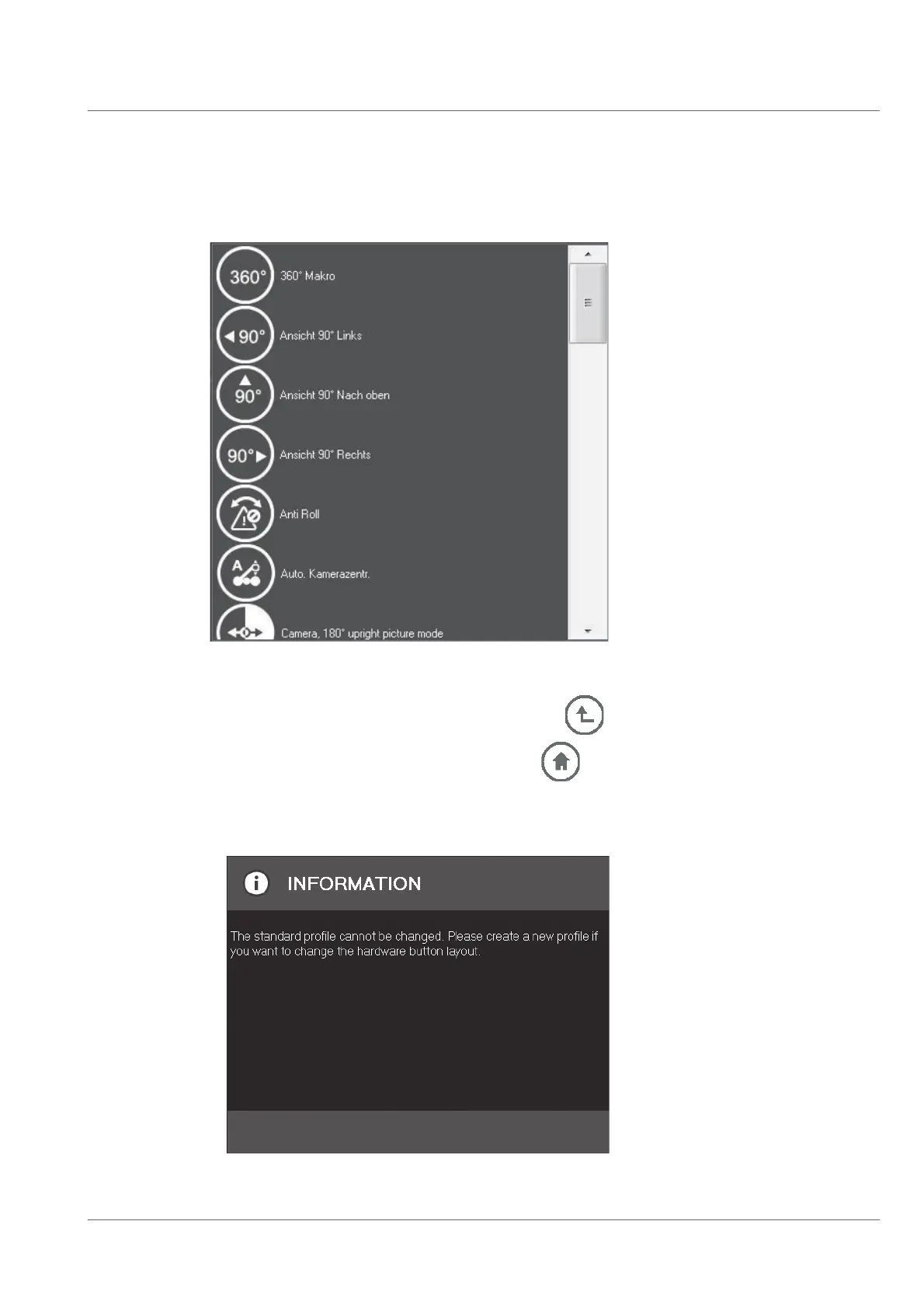

Select the function you want to assign to this button from the list.
•
Repeat this procedur
e for all buttons you want to reassign.
•
For saving the con
Ƃ
guration and r
eturning to the System Settings menu press
.
•
For returning to the S
ystem Settings menu without saving changes press
.
If the standard pro
Ƃ
le dcx
A
standard is selected the following message will be displayed:
