Operation of the system
System Settings
73

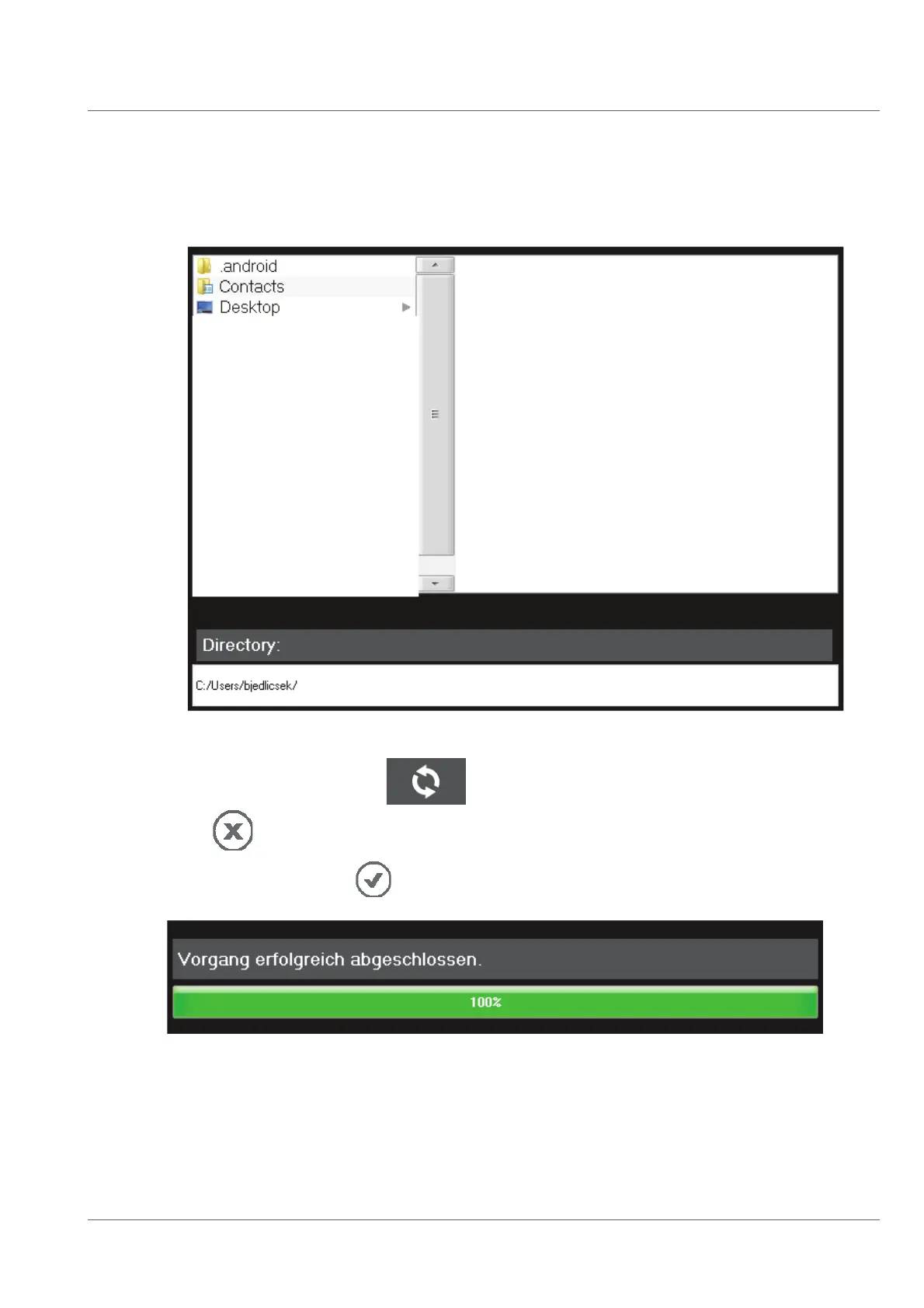

The directory will be displayed.
•
Select the directory from which the pro
Ƃ
les should be imported.
•
For updating the directory structur
e press
.
• Press
to cancel the saving process and to return to the list of events.
•
For starting the data transfer pr
ess
.
•
After completion of the data transfer press OK.
72
74
Table of Contents
Table of Contents
3
Introduction
9
About this User Manual
9
Target Groups
9
Other Applicable Documents
9
General Conventions
10
Screen Keyboard
10
Touch Screen Buttons
10
Operating Steps
10
Lists
10
Andatory Input Elds
10
Warnings and Symbols
11
Safety
13
Speci Ed Use
13
General Safety Instructions
13
Product Safety
13
Obligations of the Operator / Organizational Measures
14
Esponsible Staff and Uali Cation
14
Important Notes
15
Cleaning
15
Disposal
15
Functional Description
16
Application Possibilities
16
Connections and Operating Elements
17
Connections
17
Control Unit CCU1
17
Front Side
17
Rear Side
18
LED Display CCUI
19
Control Elements
20
Control Panel Right Side (Crawler Control)
20
Control Panel Left Side (Camera Control)
21
Bottom Side
22
Touch-Screen Monitor
23
Installation Options
24
DCX5000 with Frame Bezel Plate
24
DCX5000 Single Frame
25
DCX5000 Table Installation
26
Dashboard
27
Overview of the Dashboard (with RX140SAT Crawler and RAXSAT150 Cable Reel)
27
Overview of the Dashboard (with RX140SAT II Crawler and RAXSAT300 Cable Reel)
28
Context Window
29
Main Functions
30
Initial Set-Up
31
Unpacking the System and Visual Check
31
Selecting a Suitable Location
31
Switching on the DCX5000
31
Switching off the DCX5000
32
Normal Shutdown
32
Quick Shutdown
32
Emergency-Off
33
Operation of the System
34
Right Control Panel
34
Moving the Crawler
34
Cruise Control
34
Cable Reel Automatic / Manual Mode
35
Cable Reel Speed
35
Tensile Force Cable Rewind
35
Left Control Panel
36
Camera Movement
36
Zoom
36
Light Intensity of the Camera Light
36
Auxiliary Light
37
Autofocus / Manual Focus
37
Camera Elevator (Optional)
37
Touch-Screen Monitor
38
Operation of Function Buttons
38
Status of Function Buttons
38
Menu Navigation
39
Help Menu
40
Navigating in Submenus
40
Status Indicators
41
Status Indicators Camera
41
Status Indicators Crawler and Cable Reel
42
Status Indicator Modes
43
Warnings
43
Function Buttons
44
Camera Menu Functions
44
Cable Reel Functions
53
Crawler Functions
55
Shifting between Gears (RX400)
55
System Settings
59
Text Displays
60
Setting the System Time and the Country / Language
65
Display of Manufacturer's Information
66
Changing the Assignment of the Freely Programmable Buttons
66
Pro les
68
Creating a New Pro le
69
Selecting an Existing Pro le
69
Deleting an Existing Pro le
69
Extended Settings
70
Reset to Factory Settings
70
Exporting / Importing Pro les
71
Exporting Pro les
71
Importing Pro les
72
Performing a Software Update of the CCUI - Linux System
74
Software Update Via Touch-Screen
74
Software Update Via the Update Button
75
Inserting the USB Stick
76
Obtaining an IP-Address (for ENVIROSIGHT Service Staff Only)
77
Entering Free Texts
77
Diagnosis Settings
78
System con Guration Device Status and Serial Number
79
System con Guration
79
Device Status
79
Serial Number
80
Event Log
81
Exporting the Event Log
82
ATEX Menu
83
Exporting ATEX Messages
83
ATEX Status of Connected Components
84
Maintenance and System Information
85
Performing the Inspection
86
Antiroll Function
86
Antiroll
86
Activating Antiroll
86
Disabling Antiroll
87
Autostop Function
88
Activating Autostop
88
Manually Activating or Disabling the Autostop Function
90
Modifying the Standard Autostop Position
90
Adjusting the Digisewer Camera Settings
94
Individual Adjustment of the Light Intensity
95
Simultaneous Adjustment of the Light Intensity of All Four Light Rings
95
Simultaneous Increase of Light Intensity Maintaining the Set Ratios
96
Light Control
98
Light Ring (RCX90)
98
Operation of the SVC110 Borehole Camera
100
Operation of the Satellite System
101
Rx140Sat
101
Operating the System with the RX140SAT Crawler
101
Switching the System on / off
101
Switching between the Insertion Unit and the SAT Camera
101
Controlling the SAT Camera
102
Controlling the Insertion Unit
102
Controlling the Feed Unit
102
Using the SAT Cruise Control
103
Rx140Sat II
104
Operating the System with the RX140SAT II Crawler
104
Switching the System on / off
104
Functions of the Left Joysticks When Operating the RX140SAT II Crawler
104
Controlling the SAT Camera / Feeder Unit
106
Controlling the Insertion Unit / Feeder Unit
106
Controlling the Integrated Observation Camera or the Additional Observation Camera RCX90
107
Using the SAT Criuse Control
107
Setting the Maximum Feeder Speed for Cruise Control Operation(RX140SAT II)
108
Localization of RX140SAT II
108
Raxsat150
109
Operating the Cable Reel and the SAT Cable Reel (RAXSAT150)
109
Switching between Automatic Mode and Manual Mode of the Cable Reels
109
Switching between Cable Reel Control and SAT Cable Reel Control
110
Adjusting Reel's the Tensile Force in the Auto Mode
111
Adjusting Winding Speed and Tensile Force in the Manual Mode
111
Setting the SAT Meter Counter
111
Raxsat300
112
Operating the Cable Reel and the SAT Cable Reel (RAXSAT300)
112
Switching between Automatic Mode and Manual Mode of the Cable Reels
112
Controlling the RAXSAT300 Cable Reel
113
Controlling the Tensile Force of the Cable Reel in Automatic Mode
114
Controlling the Winding Speed and Tensile Force of the Cable Reel in Manual Mode
114
Setting the SAT Meter Counter
115
Anti-Slip Control Function and Display (Cable Reel and SAT Cable Reel)
115
Anti-Slip Control Function and Display (Feeder Unit of the RX140SATII)
116
Operating the System with the Remote Control
117
Disabling of the DCX5000 Operating Functions
117
Connecting and Rewinding the SAT Cable Reel Without Connected SAT Crawler
118
Technical Data
119
Desktop Control Unit DCX5000
119
Control Unit CCU1
120
Customer Service Addresses
121
Device Take-Back at the End of Service Life
128
Limitation of Liability
130
Guarantee Declaration
132
Scope of the Guarantee
132
Guarantee Conditions
132
Imprint
134
