Frequency Tests
248 MAX-635G
RX Tone with FED

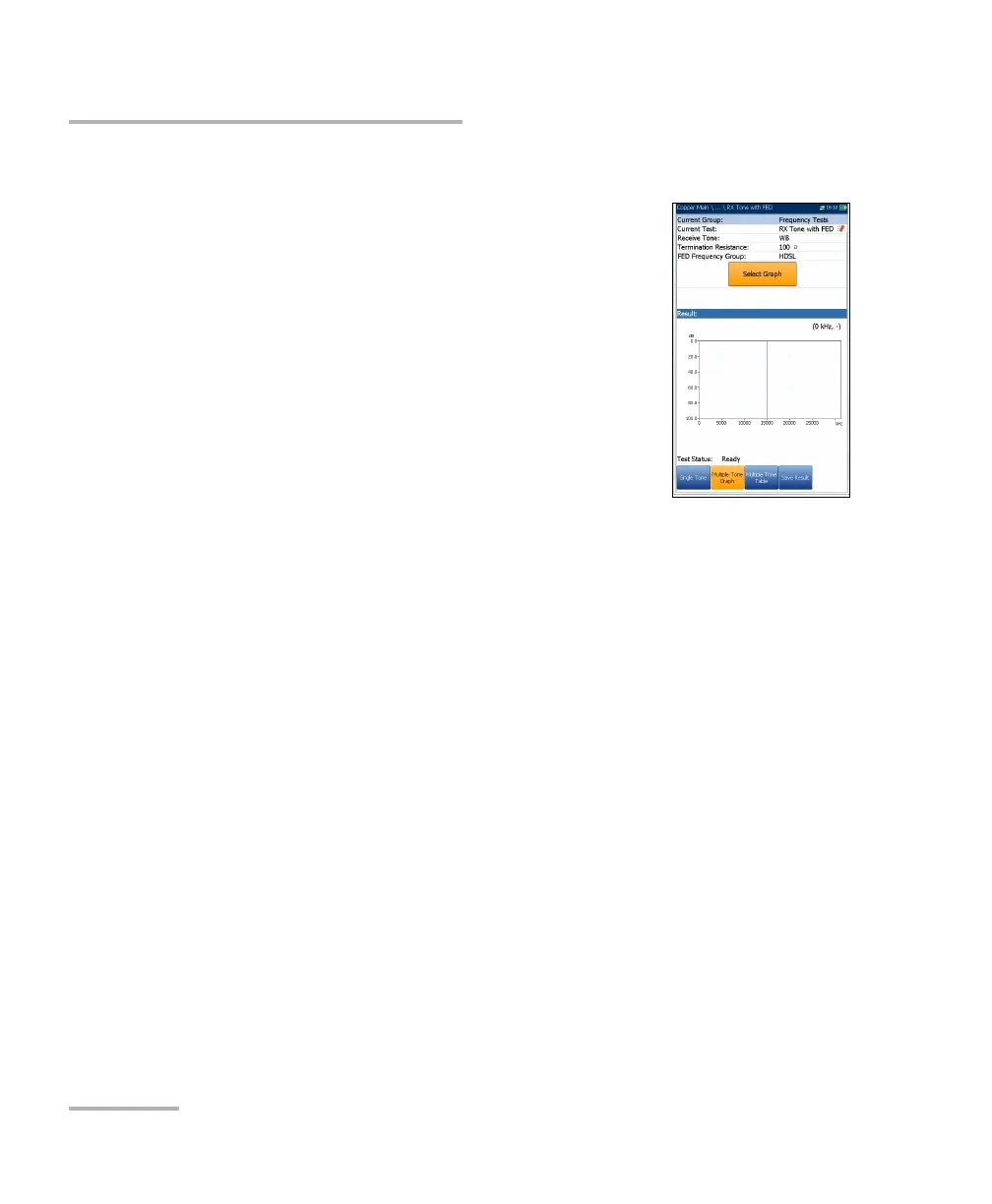

Multiple Tone Graph
The Multiple Tone Graph tab displays results in text
and graphical formats. From this page, you can run
the RX Tone with FED test using multiple frequencies,
by configuring the following parameters:
Current Group is the current test group name, for
example Frequency Tests.
Current Test displays the test being measured.
Here you can switch to another Frequency test
from the given list. However, this action will
terminate the ongoing measurement test.
Receive Tone allows you to select either a VF
(voice frequency) or WB (wideband) signal. WB selection is only
available when the 30 MHz Wideband Testing software option is
installed.
Termination Resistance defines how much resistance the tester uses
to connect to the line, and is set as follows:
for VF Receive Tone, a read-only value of 600 Ω.
for WB Receive Tone, select 100, 120, or 135 Ω.
FED Frequency Group allows you to select the frequency that the
TS125 FED will transmit, from a preset list.
for VF Receive Tone:
POTS/PSTN: 404, 804, 1004, 1204, 1804, 2204, 2404, 2804, 3204,
3404 Hz
VF 5 Tone: 404, 1004, 2804, 3004, 3604 Hz
for WB Receive Tone:
HDSL: 20, 30, 50, 70, 90, 110, 130, 196, 400 kHz
T1/E1: 200, 400, 500, 700, 772, 1024 kHz
