295
www.factoryfive.com 508-291-3443

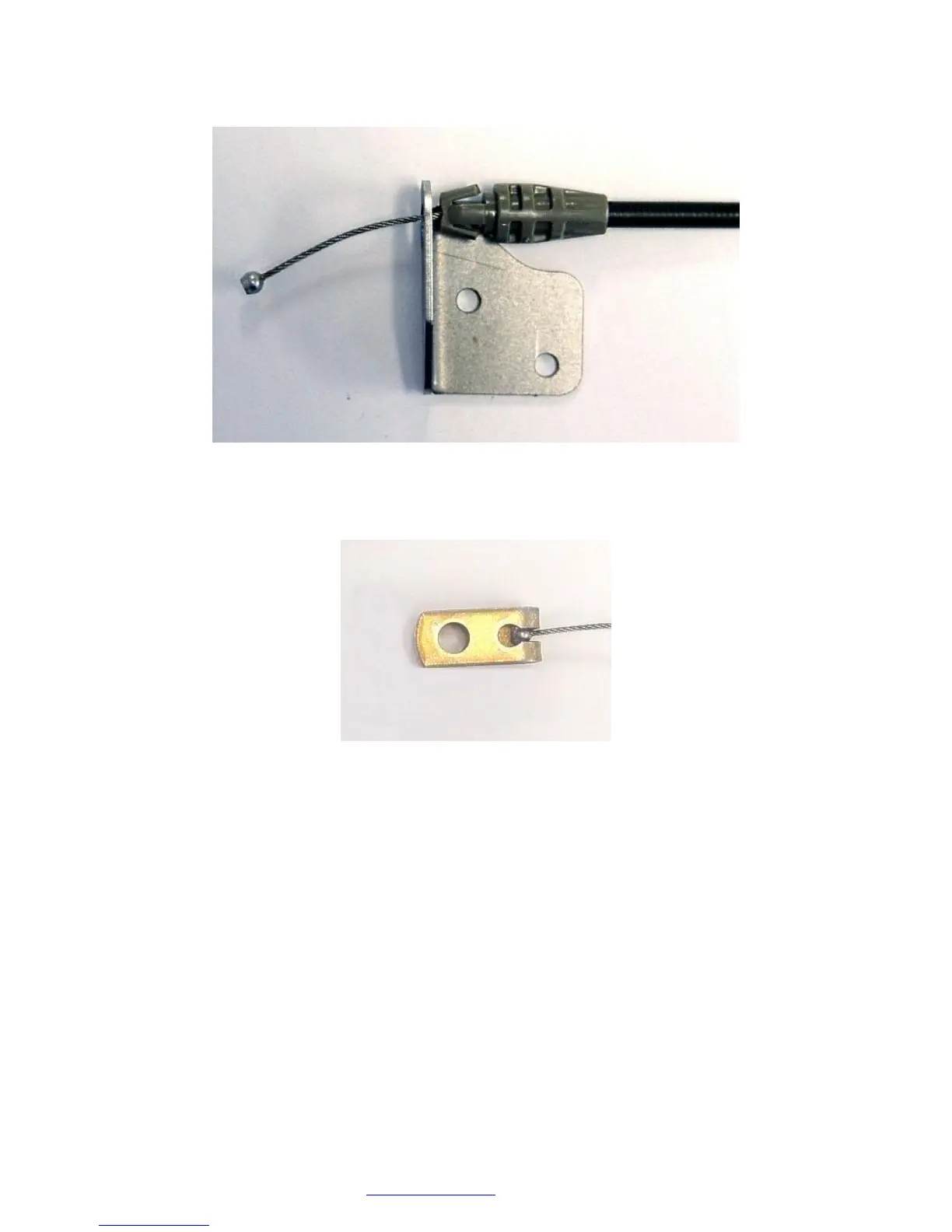

Push the other end of the cable into the cable mount tab.
Place the clevis on the end of the cable and attach it to the door latch using the black button head screw.
Tighten the screw enough so that the clevis is not sloppy but so that it can rotate on the latch.
Locate the mount tab on the door frame so that the cable has no slack in it and so it will not get in the
way of the door skin.
Mark the location of the mount on the door frame.
Drill and mount the tabs using the
3
/
16
” rivets included.
Install the driver side door frame into the driver door through the hole in the front. To get it in you will
have to start inserting it at an angle and once its part way in straighten it out and push it the rest of the
way in.
Push the frame all the way in until it touches the back of the door. Clamp the frame to the door with two
or three small clamps.
Make sure the inside surface of the frame is resting on the top edge of the recessed area of the
door.
