296
www.factoryfive.com 508-291-3443
Using a straight edge draw a line along the top and bottom edges of the recessed area. Draw a line
parallel to this line ⅝” above the top line and ¾” below the bottom line.
Mark the door for drilling using the diagram for locations.
Drill through the door and frame with a
3
/
16
” bit then open it up to
5
/
16
”.

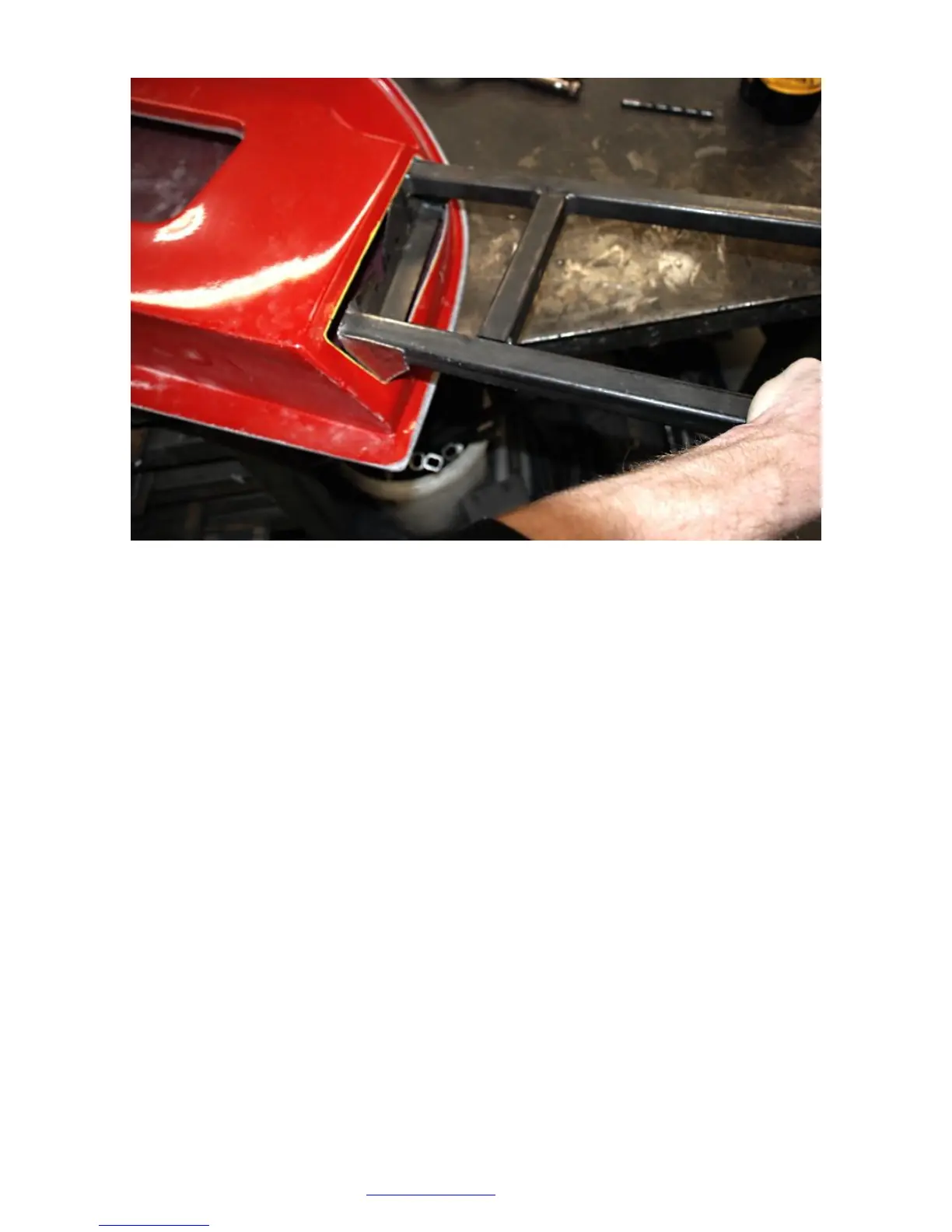

Bolt the frame to the door using the stainless steel button head bolts and nuts. Do not torque the
stainless bolts, snug is good.
