Remove the clamps.

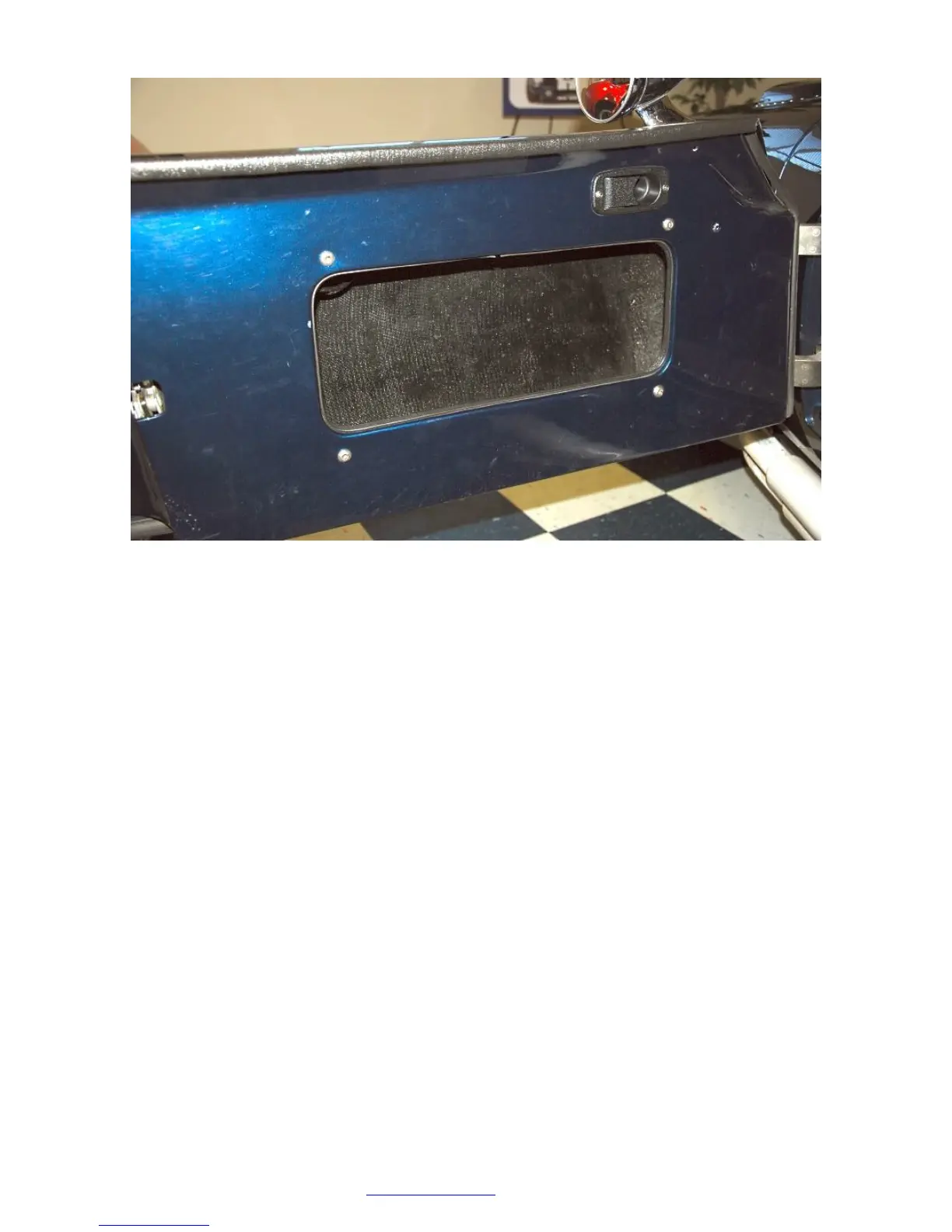

Move the door handle around inside the door and find an approximate location that you would like to
mount the handle. Make sure that the cable will be able to reach.
Do not go forward of the cut out in the door as this will hit the window frame.
Mark the location on the door.
Remove the handle from the cable by pulling the sleeve out of the recess and then removing the cable
from the handle.
Use the following template to mark the inside area to cut and to drill the
3
/
32
” mounting screw holes. Use
a ruler to check the scale before using.
