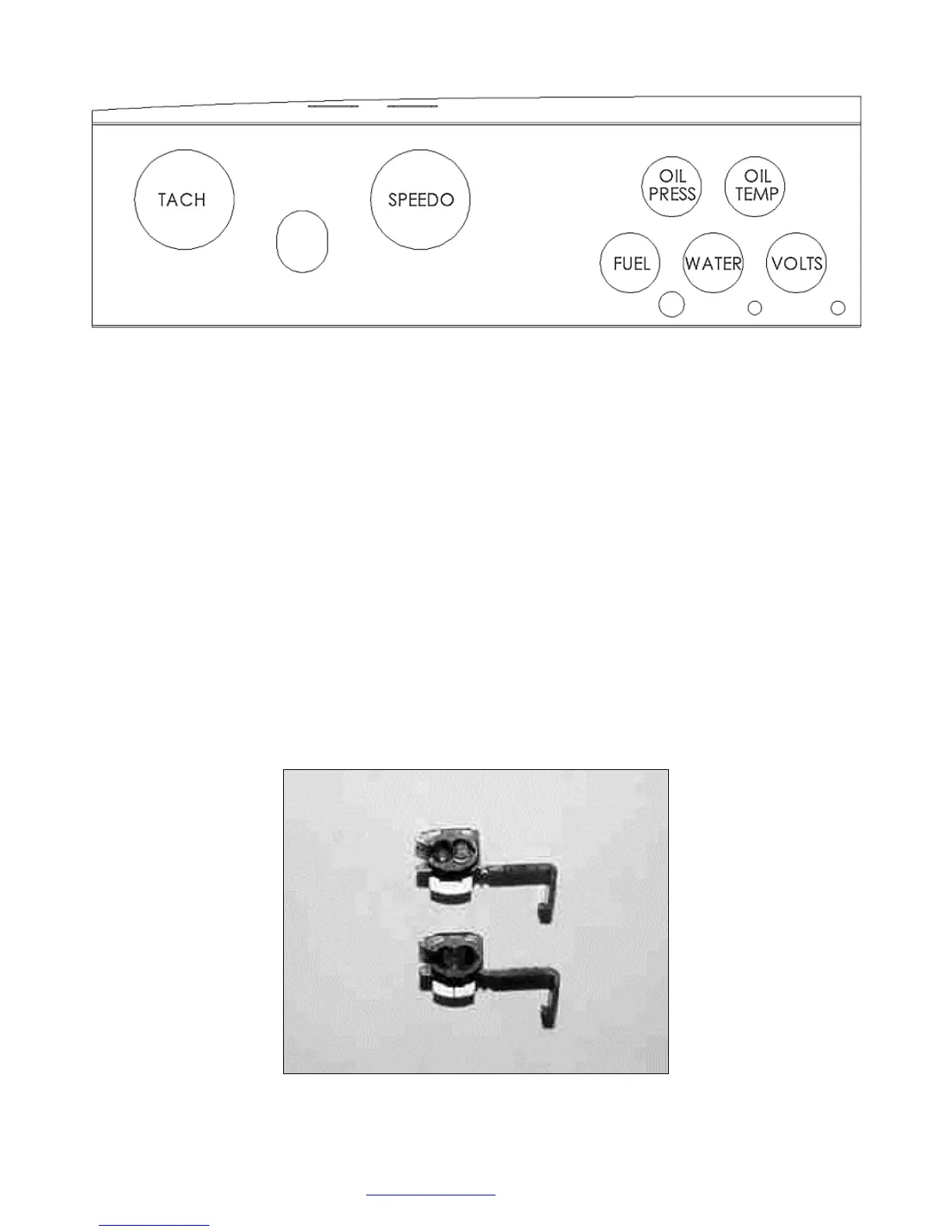

Remove the dash from the car.
Remove the gauges from the dash.
Cover/coat the dash, a matte finish or non-reflective finish is suggested. We chose spray on truck bed
liner from Wal-Mart for its finish and ease of use. Powder coating would also be a good choice. Make
sure to prep the surface properly before covering so it will not peal off. If painting sand it then wipe
clean. Do not get finger oils on it.
Wiring Harness
Included with the gauge kit are wires and connectors to create a simple gauge wiring harness.
Cut the 5’ long blue wire into sections. (1) 2’ wire, (1) 1’ wire, (3) 8” wires.
Cut the 6’ long black wire into sections. (1) 2’ wire, (1) 1’ wire, (4) 8” wires.
Cut the 5’ long red wire into sections. (1) 2’ wire, (1) 16” wire, (2) 8” wires and (1) 4” wire.
Mark the red and blue 2’ sections at 4”, 7” and 10” from one end.
Using a ⅛” Drill bit, drill the wire blockage out of (7) of the tap connectors.
Upper connector has blockage, lower is drilled.
Lay the cut dash face down on a table.
To Next Page
