Starting at the 4” mark, place one of the drilled tap connectors on the wire along with one of the 8”
wires.
Center the 8” wire on the connector and squeeze the connector with a pair of pliers. Snap the cover on
the connector with your fingers.
Repeat steps 4 and 5 for the 4” and 7” marks on the red, blue and the black wires.

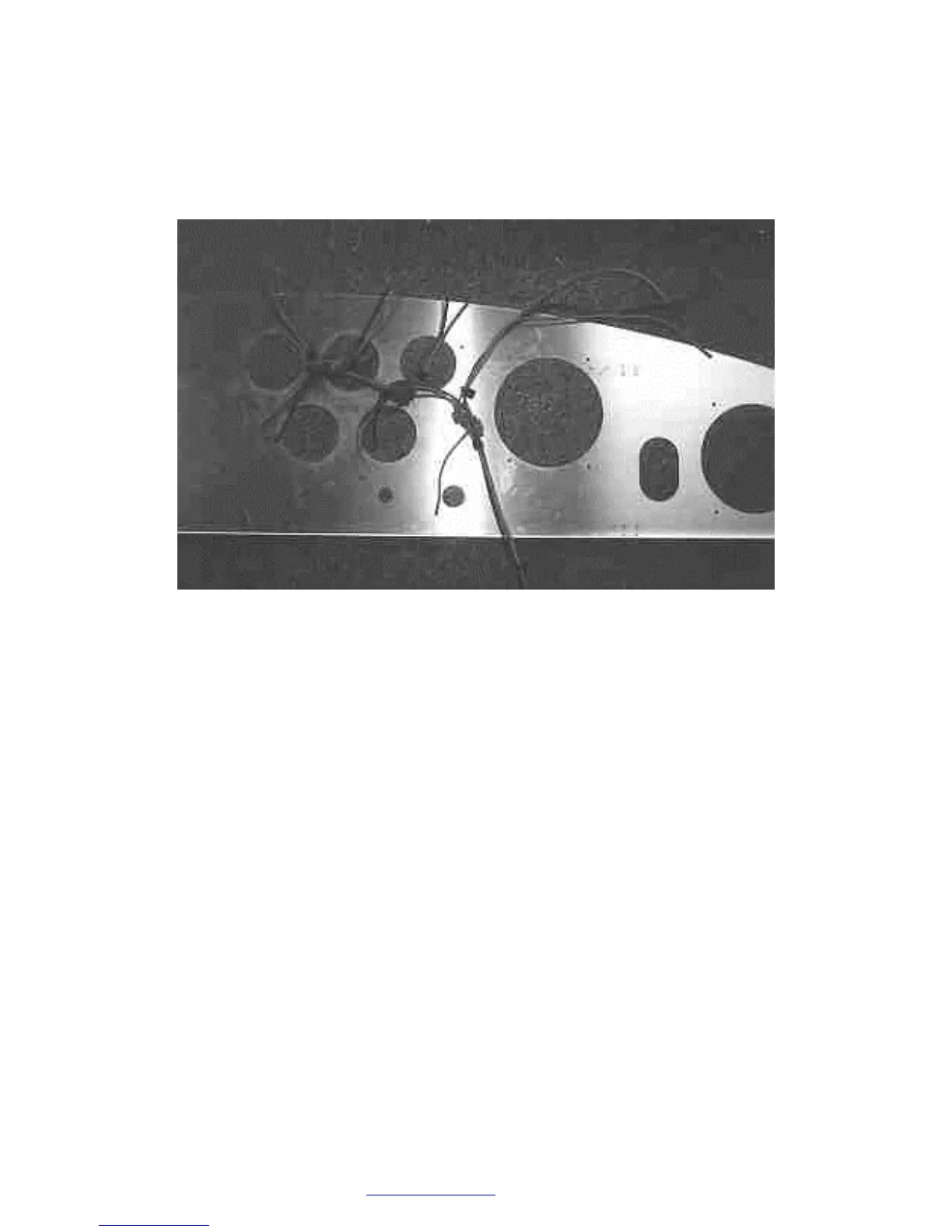

Note: Roadster dash shown
For the black and blue wires at the 10” mark, use the 1’ wire and an undrilled tap connector. This wire
will run over the top of the speedometer to the tach.
For the red wire at the 10” mark, use the 16” wire and a drilled connector. Mark the 16” wire 4” from
the end and connect the two wires at the 10” mark.
On the blue 1’ wire, attach the remaining 8” wire using an undrilled connector above the speedometer.
On the black wire, attach the two remaining 8” wires using drilled connectors centering the 8” wire on
the connector. Position the connectors over the steering column for the small lights and so that one lead
will reach the speedo light.
