12.1 Connecting external devices

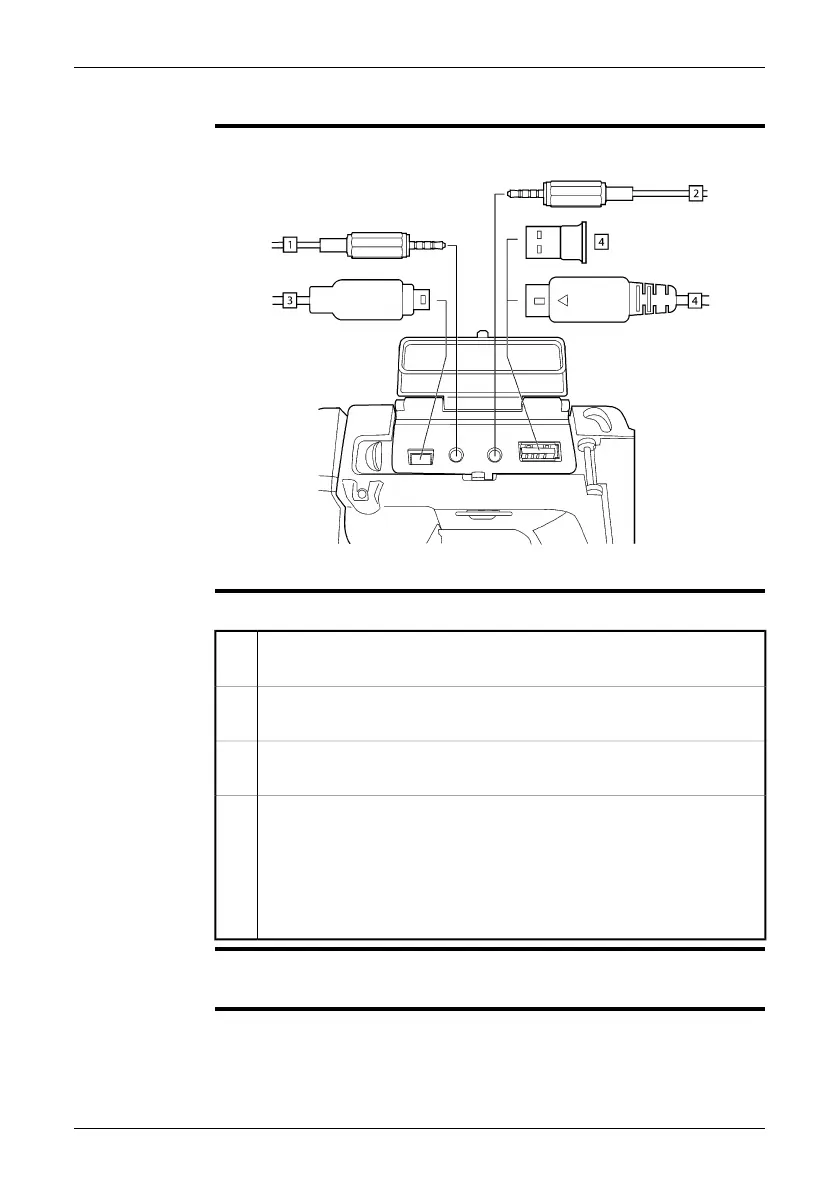

Figure
10759303;a3
Explanation
This table explains the figure above:
To connect a headset to the camera to record and listen to voice comment,
use a headset cable and this socket.
1
To connect a video monitor to the camera, use a CVBS cable (a composite
video cable) and this socket.
2
To connect a computer to the camera to move images and files to and from
the camera, use a USB Mini-B cable and this socket.
3
One of the following:
■
To connect a Bluetooth
®
USB micro adapter to the camera, in order to
capture measurement results from an Extech
®
external meter (such as
a clamp meter or a moisture meter), use this socket.
■
To connect an external USB device, such as a USB memory stick, use
this socket.
4
Supported
Extech
®
meters
Extech
®
Moisture Meter MO297
■
■
Extech
®
Clamp Meter EX845
