Fortinet FortiGate Series Administration Guide

System Status Changing system information
FortiGate Version 4.0 MR1 Administration Guide
01-410-89802-20090903 125
http://docs.fortinet.com/ • Feedback

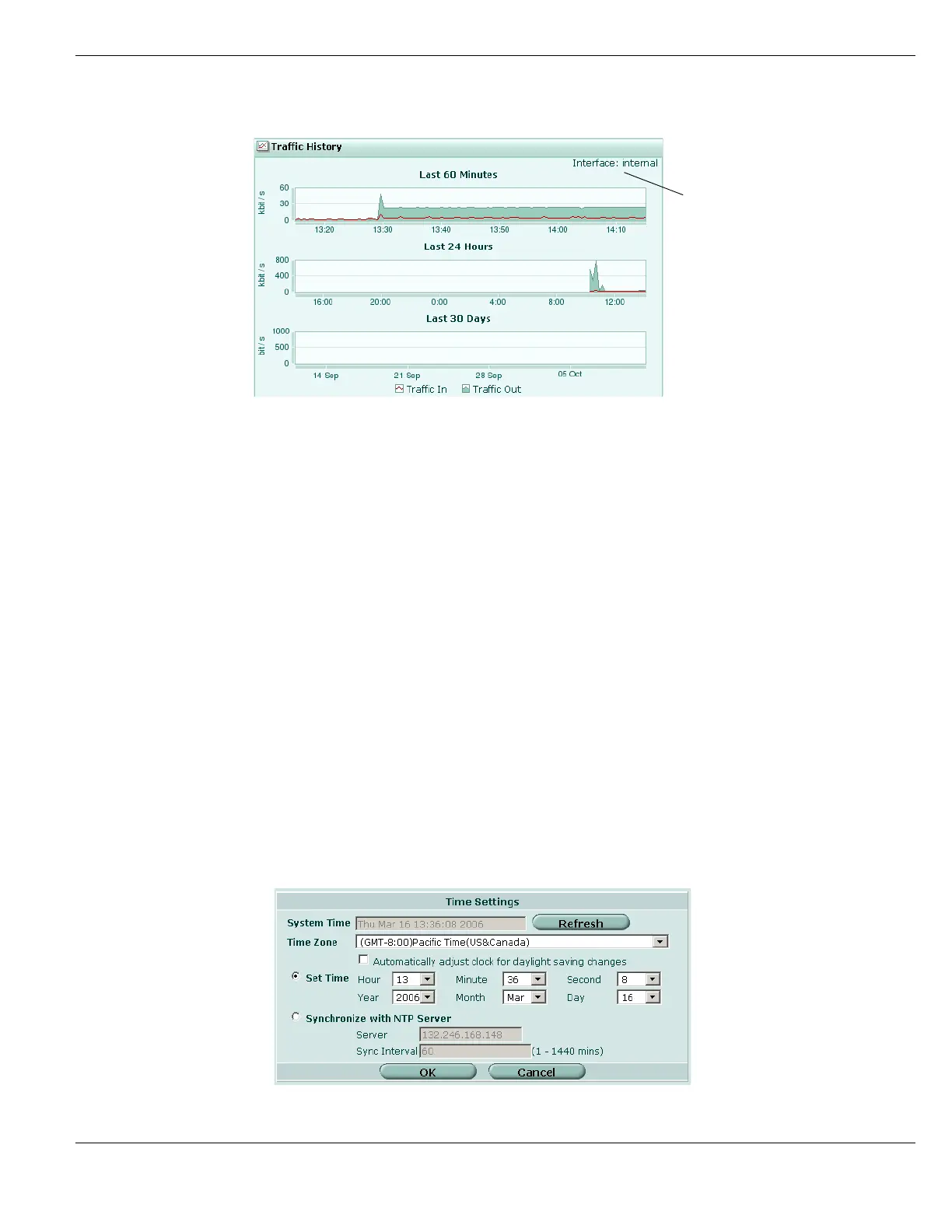

Figure 43: Traffic History
Changing system information
FortiGate administrators whose admin profiles permit write access to system configuration
can change the system time, host name and the operation mode for the VDOM.
Configuring system time
1 Go to System > Status > Dashboard.
2 In the System Information section, select Change on the System Time line.
3 Select the time zone and then either set the date and time manually or configure
synchronization with an NTP server.
Figure 44: Time Settings
Interface The interface that is being monitored .
kbit/s The units of the traffic graph. The scale varies based on traffic levels to
allow it to show traffic levels no matter how little or how much traffic there is.
Last 60 Minutes
Last 24 Hours
Last 30 Days
Three graphs showing the traffic monitored on this interface of the FortiGate
unit over different periods of time.
Certain trends may be easier to spot in one graph over the others.
Traffic In The traffic entering the FortiGate unit on this interface is indicated with a
thin red line.
Traffic Out The traffic leaving the FortiGate unit on this interface is indicated with a dark
green line, filled in with light green.
Interface being
monitored

Fortinet FortiGate Series Specifications

General

Model	FortiGate Series
Category	Firewall
Throughput	Varies by model
Interfaces	Varies by model
Concurrent Sessions	Varies by model
VPN Support	Yes
High Availability	Yes
Firewall Throughput	Varies by model
VPN Throughput	Varies by model
IPS Throughput	Varies by model
NGFW Throughput	Varies by model
Threat Protection Throughput	Varies by model
New Sessions per Second	Varies by model
Power Supply	Varies by model
Security Features	Firewall, IPS, Application Control, Web Filtering, Antivirus, VPN
Virtual Domains	Yes
Form Factor	Desktop, Rackmount
