Fortinet FortiGate Series Administration Guide

Configuring VDOMs and global settings Using virtual domains
FortiGate Version 4.0 MR1 Administration Guide
170 01-410-89802-20090903
http://docs.fortinet.com/ • Feedback

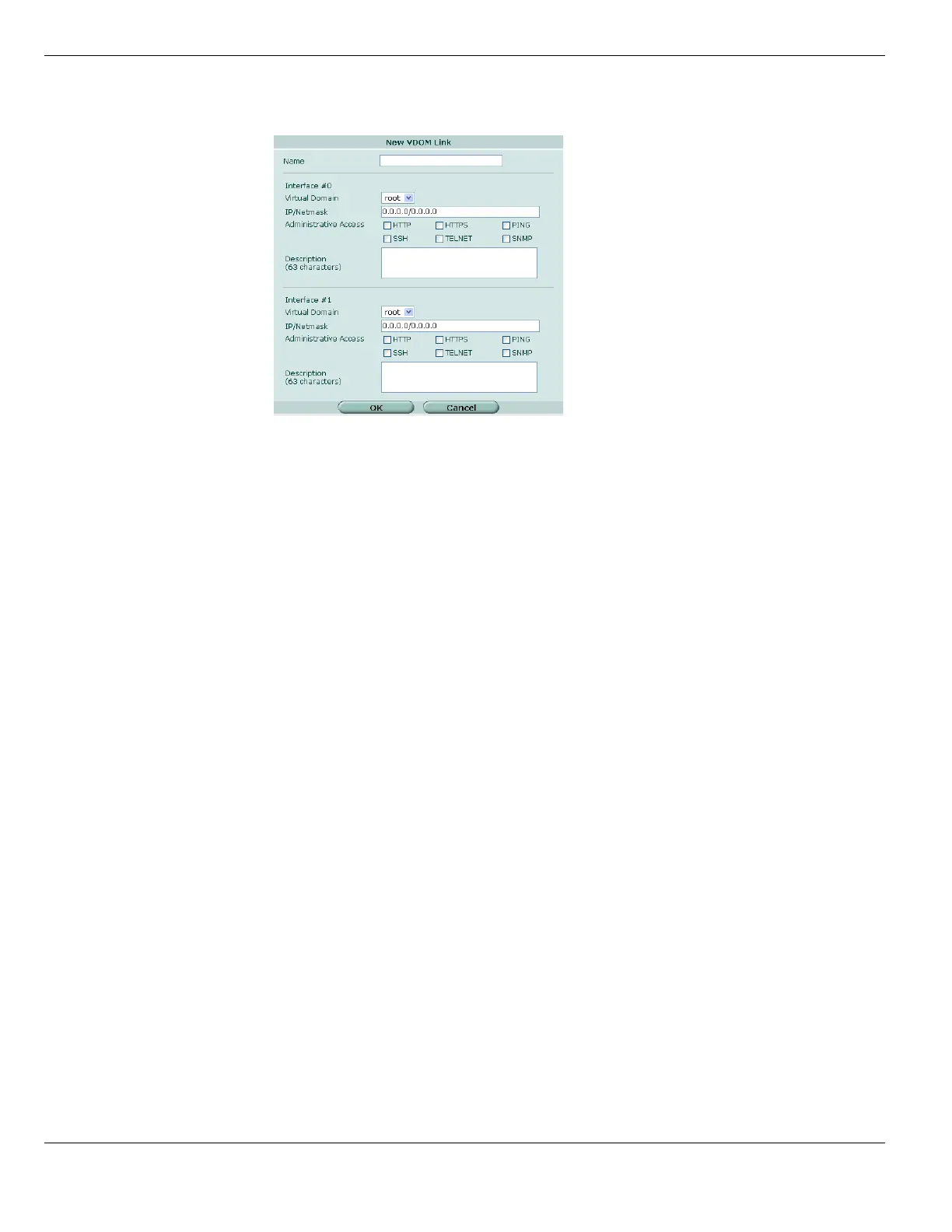

Figure 64: New VDOM link
5 Enter the name for the new VDOM link, up to a maximum of 11 characters.
The name must not contain any spaces or special characters. Hyphens (“-”) and
underlines (“_”) are allowed. Remember that the name will have a “0” or “1” attached to
the end for the actual interfaces.
6 Configure VDOM link “0”.
7 Select the VDOM from the menu that this interface will connect to.
8 Enter the IP address and netmask for this interface.
9 Select the administrative access method or methods. Keep in mind that PING,
TELNET, and HTTP are less secure methods.
10 Optionally enter a description for this interface.
11 Repeat steps 7 through 10 for VDOM link “1”.
12 Select OK to save your configuration and return to the System > Interface screen.
Assigning an interface to a VDOM
The following procedure describes how to reassign an existing interface from one virtual
domain to another. It assumes VDOMs are enabled and more than one VDOM exists.
You cannot delete a VDOM if it is used in any configurations. For example, if an interface
is assigned to that VDOM, you cannot delete the VDOM. You cannot remove an interface
from a VDOM if the interface is included in any of the following configurations:
• DHCP server
•zone
• routing
• firewall policy
• IP pool
• proxy arp (only accessible through the CLI).
Before removing these configurations, it is recommended that you back up your
configuration, so you can restore it if you want to create this VDOM at a later date.
Delete the items in this list or modify them to remove the interface before proceeding.

Fortinet FortiGate Series Specifications

General

Model	FortiGate Series
Category	Firewall
Throughput	Varies by model
Interfaces	Varies by model
Concurrent Sessions	Varies by model
VPN Support	Yes
High Availability	Yes
Firewall Throughput	Varies by model
VPN Throughput	Varies by model
IPS Throughput	Varies by model
NGFW Throughput	Varies by model
Threat Protection Throughput	Varies by model
New Sessions per Second	Varies by model
Power Supply	Varies by model
Security Features	Firewall, IPS, Application Control, Web Filtering, Antivirus, VPN
Virtual Domains	Yes
Form Factor	Desktop, Rackmount
