Fortinet FortiGate Series Administration Guide

Viewing the system dashboard System Status
FortiGate Version 4.0 MR1 Administration Guide
120 01-410-89802-20090903
http://docs.fortinet.com/ • Feedback
Customize allows you to change the appearance of the console by defining fonts and
colors for the text and background.

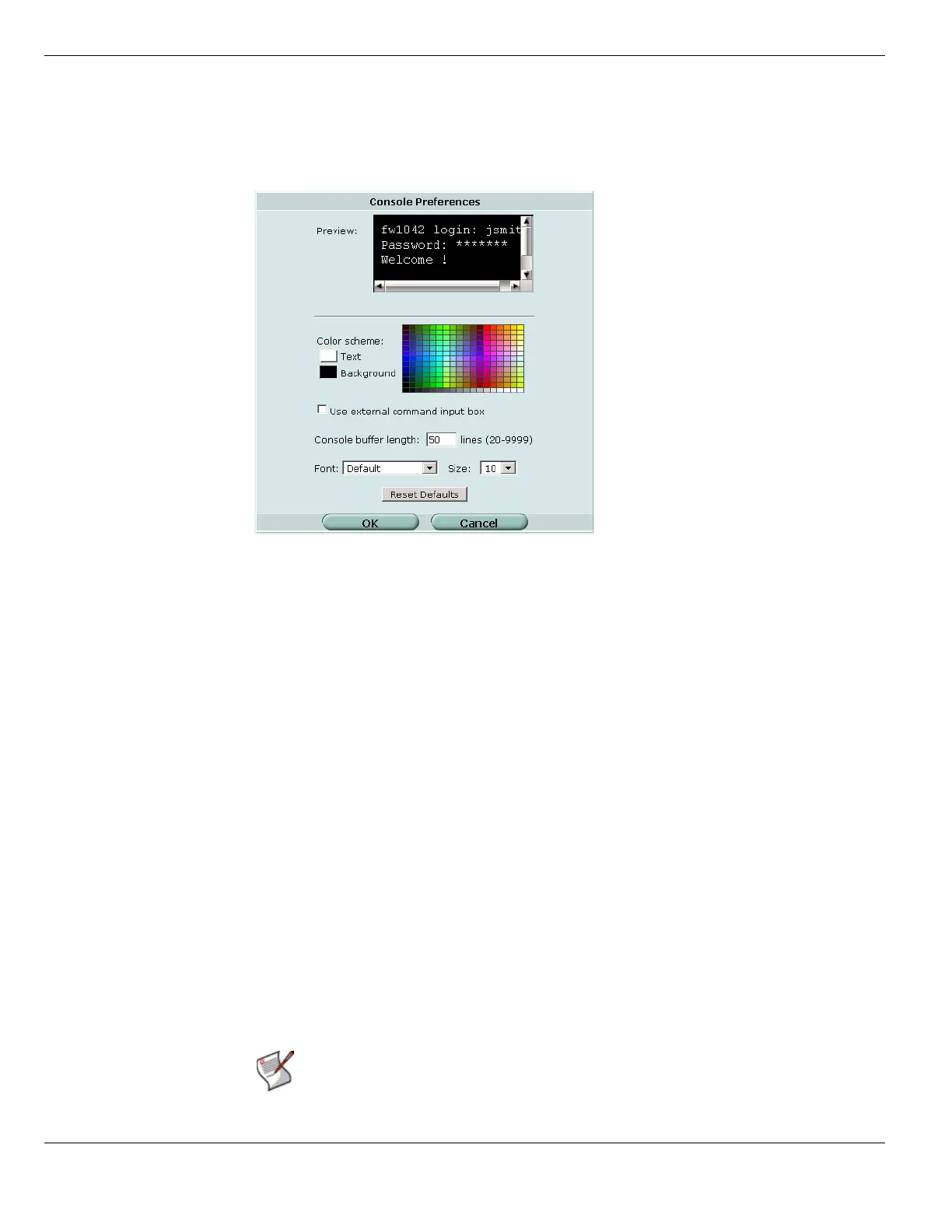

Figure 39: Customize CLI Console window
Top Sessions
Top Sessions displays either a bar graph or a table showing the IP addresses that have
the most sessions currently open on the FortiGate unit. The sessions are sorted by their
source or destination IP address, or the port address. The sort criteria being used is
displayed in the top right corner.
The Top Sessions widget polls the FortiGate unit for session information, and this slightly
impacts the FortiGate unit performance. For this reason when this display is not shown on
the dashboard, it is not collecting data, and not impacting system performance. When the
display is shown, information is only stored in memory.
Preview A preview of your changes to the CLI Console’s appearance.
Text Select the current color swatch next to this label, then select a color from
the color palette to the right to change the color of the text in the CLI
Console.
Background Select the current color swatch next to this label, then select a color from
the color palette to the right to change the color of the background in the
CLI Console.
Use external
command input box
Select to display a command input field below the normal console
emulation area. When this option is enabled, you can enter commands by
typing them into either the console emulation area or the external command
input field.
Console buffer length Enter the number of lines the console buffer keeps in memory. Valid
numbers range from 20 to 9999.
Font Select a font from the list to change the display font of the CLI Console.
Size Select the size of the font. The default size is 10 points.
Note: Rebooting the FortiGate unit will reset the Top Session statistics to zero.
