Fortinet FortiGate Series Administration Guide

System Status Viewing application, policy, and DLP archive usage data
FortiGate Version 4.0 MR1 Administration Guide
01-410-89802-20090903 139
http://docs.fortinet.com/ • Feedback
Top Policy Usage
Top Policy Usage shows the volume of traffic passing through the FortiGate unit classified
by firewall policy as either a chart or a table.
From the chart or table display you can:
• View details about firewall policies by pausing the mouse pointer over each bar in the
chart.
• Select a firewall policy on the graph to view and optionally change the firewall policy.
Top Policy Usage data is collected by all firewall policies. You can configure Top Policy
Usage to show data for up to 20 firewall policies. Only firewall policies that have accepted
sessions appear on the chart or table.

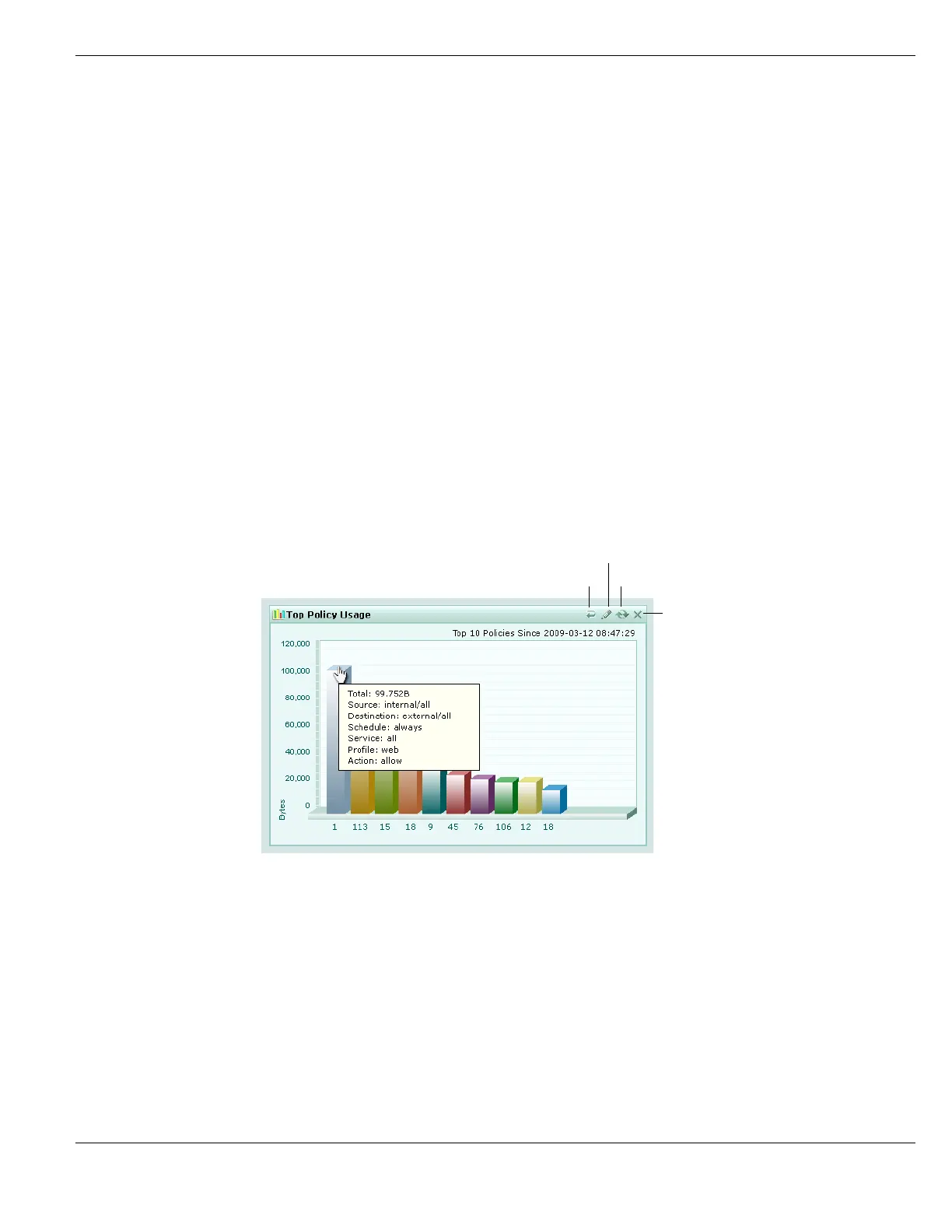

Figure 52: Top Policy Usage chart display
VDOM Select the VDOM to monitor or select Global. This is available for
global administrators only. VDOM administrators see only their only
VDOM.
Display Format Select Chart or Table display.
Top Entries To Show Select whether to display top 5, 10, 15, or 20 applications.
Refresh Interval Select display update interval in seconds. Range 10 to 240 seconds.
Select 0 to disable updating. You can also update using the Refresh
icon in the module header.
Reset
Edit
Refresh
CloseClose
