Air conditioning
116
Controls in detail

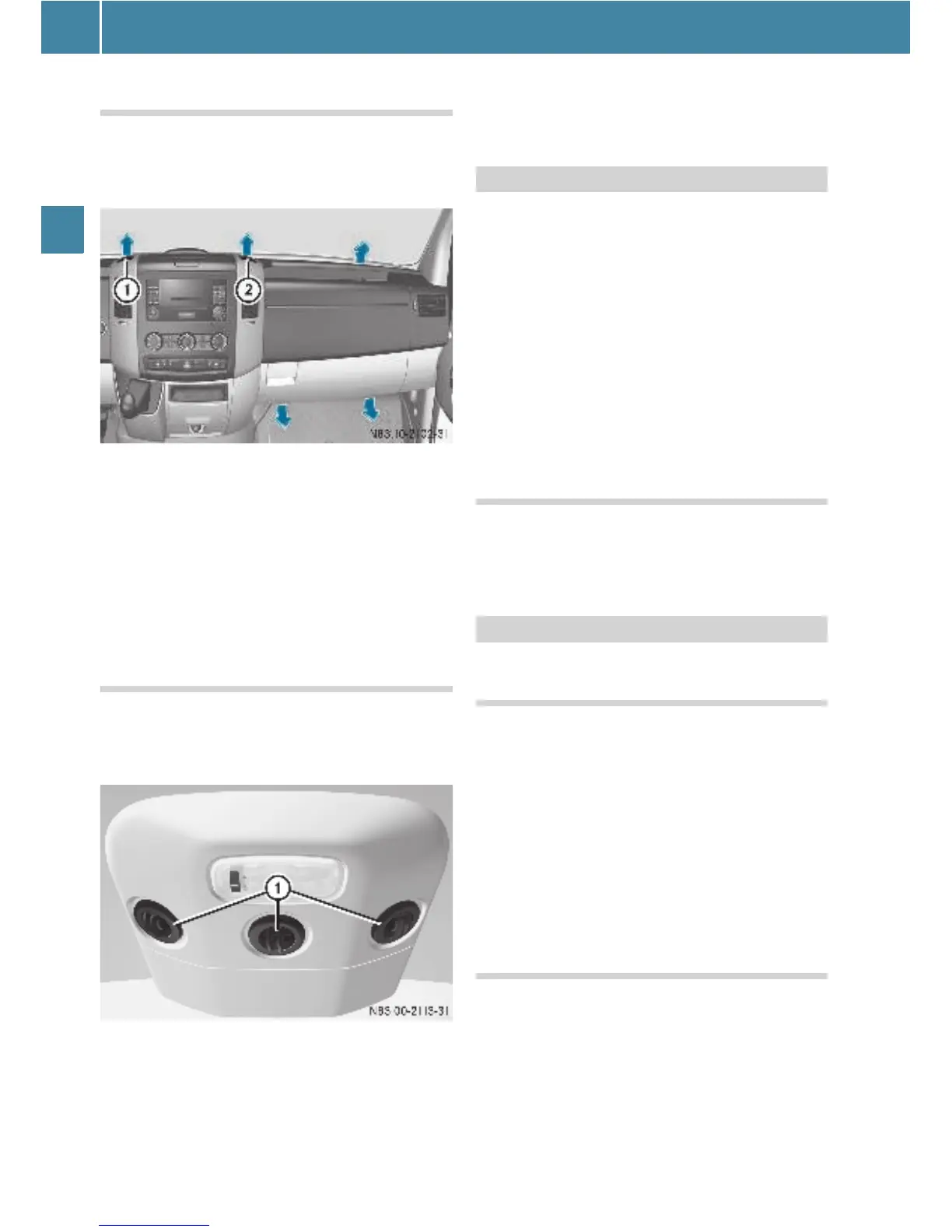

Air vents
You can use the air vents to ventilate the
vehicle interior on the left and right, in the
rear and the headroom.
Example on the right-hand side
1 Air vent thumbwheel, left-hand side of
the vehicle
2 Air vent thumbwheel, right-hand side of
the vehicle
E Turn thumbwheel : or ; clockwise
to open and counterclockwise to close
the air vents.
Air vents in the roof air duct
On vehicles with an air-conditioning-sys-
tem in the rear compartment, adjustable
air vents are integrated in the roof air duct.
E Adjust the airflow by opening/closing
the air flaps.
E Alter the air distribution by turning air
vents :.
! Never close all the air vents; otherwise,
there is a risk of damage to the air-conditioning
system in the rear compartment.
The air distribution symbols have the fol-
lowing meanings:
m Directs air through the center and
side air vents
s Directs air to the windshield and
Z through the air vents
q Directs air to the windshield, the air
vents and into the footwell
r Directs air through the air vents and
into the footwell
Air-conditioning system/heater
E Set the air-distribution control of air-
conditioning system A (
e page 112)
or heating ? (e page 113) to the cor-
responding symbol.
Air-conditioning system/air-condition-
ing system in the rear
E On vehicles with rear-compartment air
conditioning, make sure that the rear-
compartment climate control is activat-
ed (
e page 114).
E Press the I button to reduce the
airflow; press the K button to in-
crease the air flow.
The blower speeds are shown in bars
next to the buttons.
Heater/rear heating
E On vehicles with rear-compartment
heating, make sure that the rear-com-
partment climate control is activated
(e page 114).
E Set airflow control to the desired level
(e page 114)(e page 113).
Setting air distribution
Setting the airflow
