freightliner Sprinter Operator's Manual

Fuses
274
Practical hints
Fuse block F55/1
Fuse block F55/2

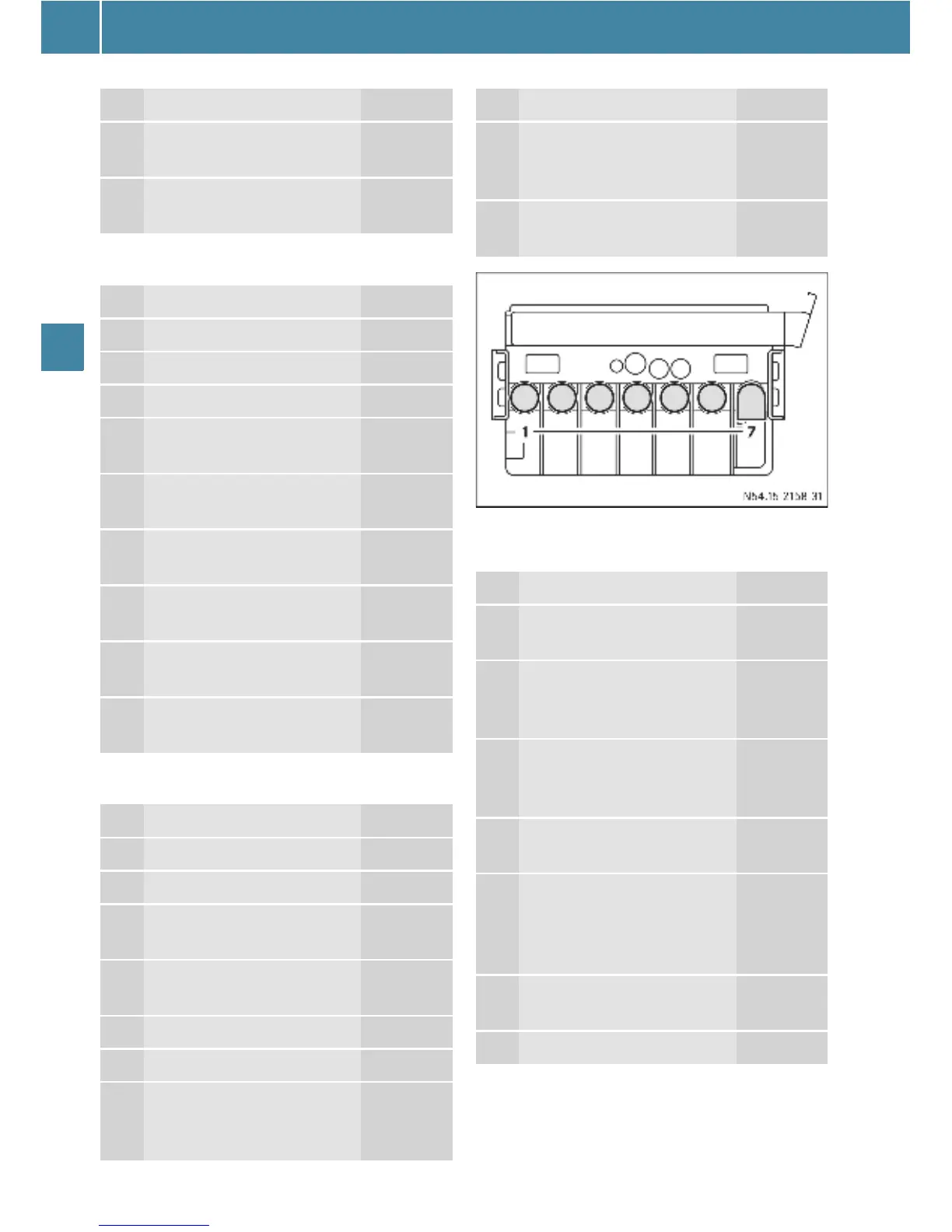

Preliminary fuse box in the battery recess in
the driver‘s footwell F59
24 Diesel engine
components
10 A
25 12V socket
(center console)
25 A
No. Consumer Amp.
1 Control panel, left door 25 A
2 Diagnostic socket 10 A
3 Brake system (valves) 25 A
4 Brake system (delivery
pump)
40 A
5 Terminal 87 (5) engine 7.5/10
A
6 Terminal 87 (6) engine 7.5/10
A
7 Headlamp cleaning
system
30 A
8 Anti-theft alarm system
(ATA)
15 A
9 Auxiliary indication
module
10 A
No. Consumer Amp.
10 Radio 15 A
11 Telephone 7.5 A
12 Front blowers/auxiliary
heating blower speed 1
30 A
13 Pre-wiring mounting slot
(center console)
7.5 A
14 Seat heating 30 A
15 Unassigned —
16 Heater, rear heating/air-
conditioning system,
front/CD player
10 A
No. Consumer Amp.
17 Motion detector/
convenience interior
lighting
10 A
18 Air conditioning in the
rear
7.5 A
No. Consumer Amp.
1 Pre-glow relay/
secondary air pump
80/40 A
2 Engine fan air-condition-
ing system – cab
chassis/crewcab
60/40 A
3 Signal acquisition and
actuation module SAM/
fuse and relay block SRB
80 A
4 Auxiliary battery/
retarder
150 A
5 Terminal 30 fuse boxes,
signal acquisition and
actuation module SAM/
fuse and relay block SRB
150 A
6 Connecting point in
drive‘s seat base
Bridge
7 Heat booster (PTC) 150 A
No. Consumer Amp.
