Fuses
273
Practical hints
Fuses

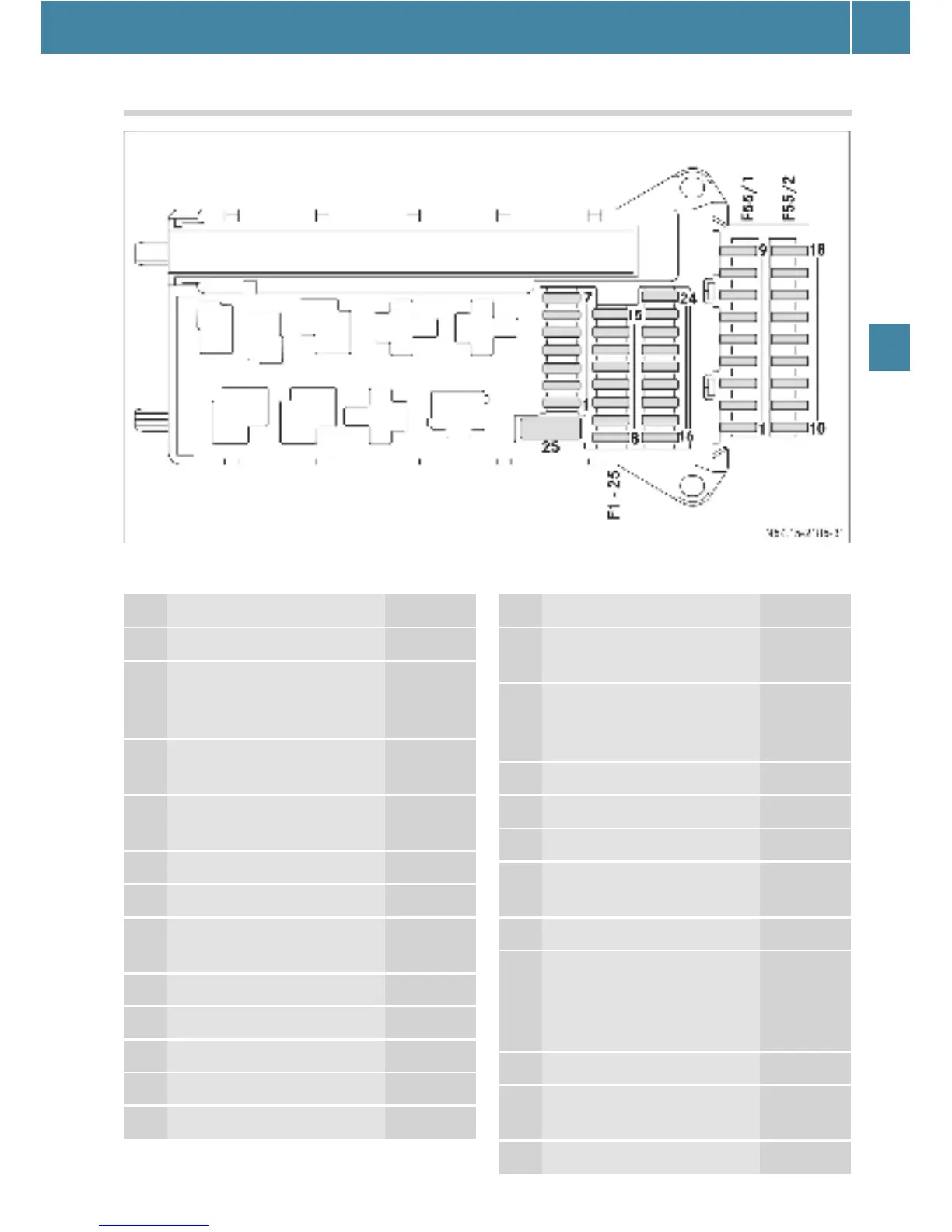

Fuse and relay block SRB
No. Consumer Amp.
1 Horn 15 A
2 Electric steering lock
ESTL (electronic ignition
switch EIS)
25 A
3 Electronic ignition
switch EIS
10 A
4 Light switch/center
console switch unit
5 A
5 Windshield wipers 30 A
6 Fuel pump 15 A
7 MRM (jacket tube mod-
ule)
5 A
8 Terminal 87 (2) 20 A
9 Terminal 87 (3) 25 A
10 Terminal 87 (4) 10 A
11 Terminal 15 R vehicle 15 A
12 Airbag control unit 10 A
13 Cigarette lighter/glove
box lighting/radio
15 A
14 Diagnostic socket/light
switch/instrument clus-
ter
5 A
15 Front heating system 5 A
16 Terminal 87 (1) 10 A
17 Airbag control unit 10 A
18 Terminal 15 vehicle,
brake lamp switch
7.5 A
19 Interior lights 7.5 A
20 Power window, co-driv-
er's side/terminal
30/2 signal acquisition
and actuation module
25 A
21 Engine control unit 5 A
22 Anti-lock Brake System
(ABS)
5 A
23 Starter motor 25 A
No. Consumer Amp.
