Engine compartment
160
Operation
i Engine oil level display:
O
quart(s)
in USA only
O
liter(s)
in Canada only

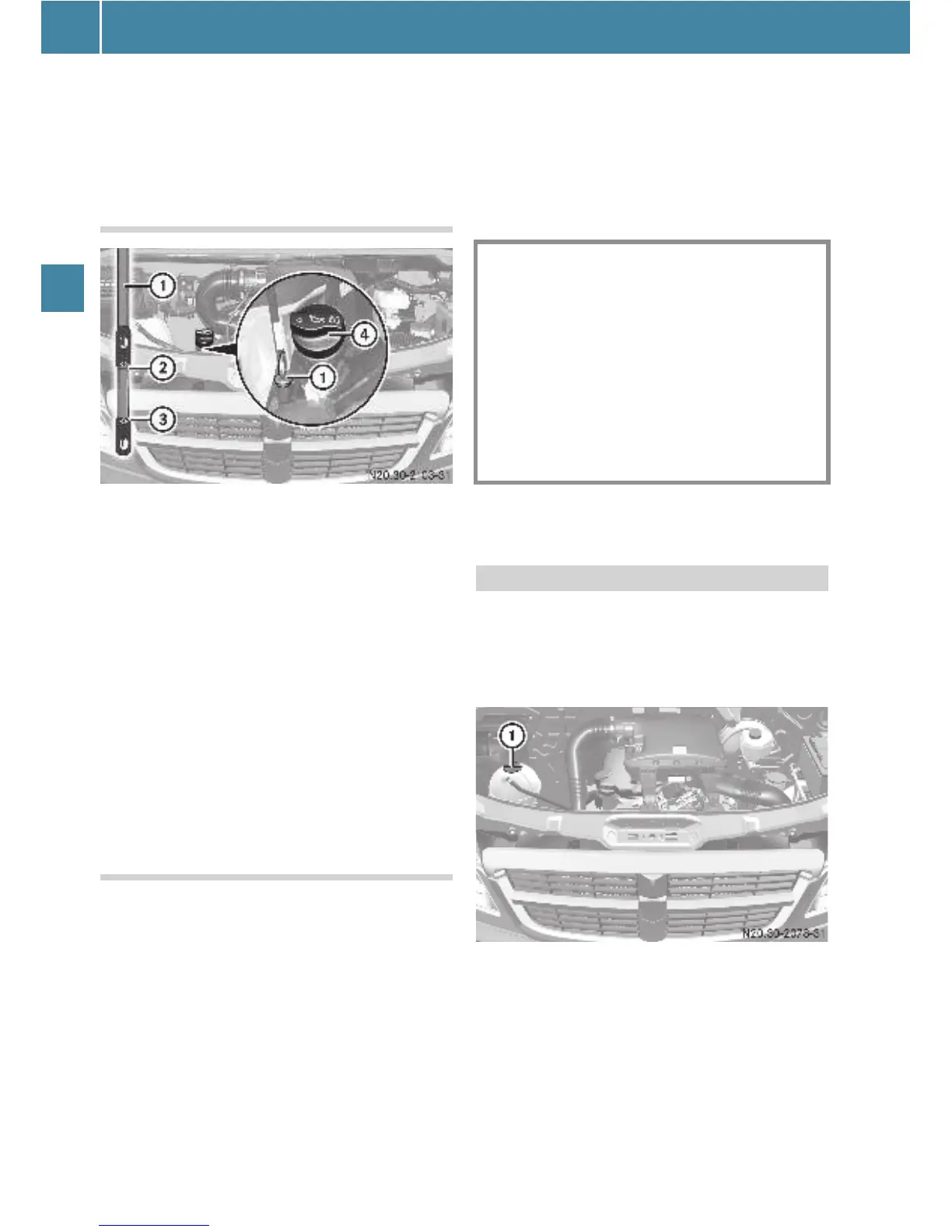

Checking the engine oil level with the
dipstick
E Pull out dipstick 1.
E Wipe it clean with a lint-free cloth.
E Insert it into the dipstick tube as far as
the stop and pull it back out.
E Check the engine oil level.
The oil level is correct if the oil is be-
tween lower min 3 and upper max 2
marks on the dipstick.
The difference in the quantity of oil be-
tween the upper and lower marks on
the dipstick is approximately 2 US qts
(2 l).
E Add engine oil if necessary.
Adding engine oil
For specifications of engine oils see "Ser-
vice products and capacities"
(e page 279).
E Unscrew cap 4 on the engine oil filler
neck.
! The alternator is underneath the engine oil
filler neck. For this reason, add the engine oil
carefully. There is a risk of damage to the alter-
nator from engine oil dripping down.
E Make sure that you only fill the engine
oil as far as the upper max 2 mark.
! Have any excess engine oil drained or si-
phoned off at an authorized Sprinter Dealer. Oth-
erwise, the engine or catalytic converter could
be damaged.
E Screw cap 4 on the engine oil filler
neck.
Only add coolant with the vehicle standing
on a level surface and with the engine
switched off. The coolant temperature
must have dropped below 122 °F (50 °C).
Coolant expansion tank
H Environmental note
When adding oil, take care not to spill any.
No engine oil must be allowed to enter sew-
age systems, surface water, ground water or
soil.
You would otherwise be damaging the envi-
ronment.
Dispose of engine oil in an environmentally
responsible manner.
Coolant
