freightliner Sprinter Operator's Manual

Where will I find...?
207
Practical hints
Panel van/crewbus

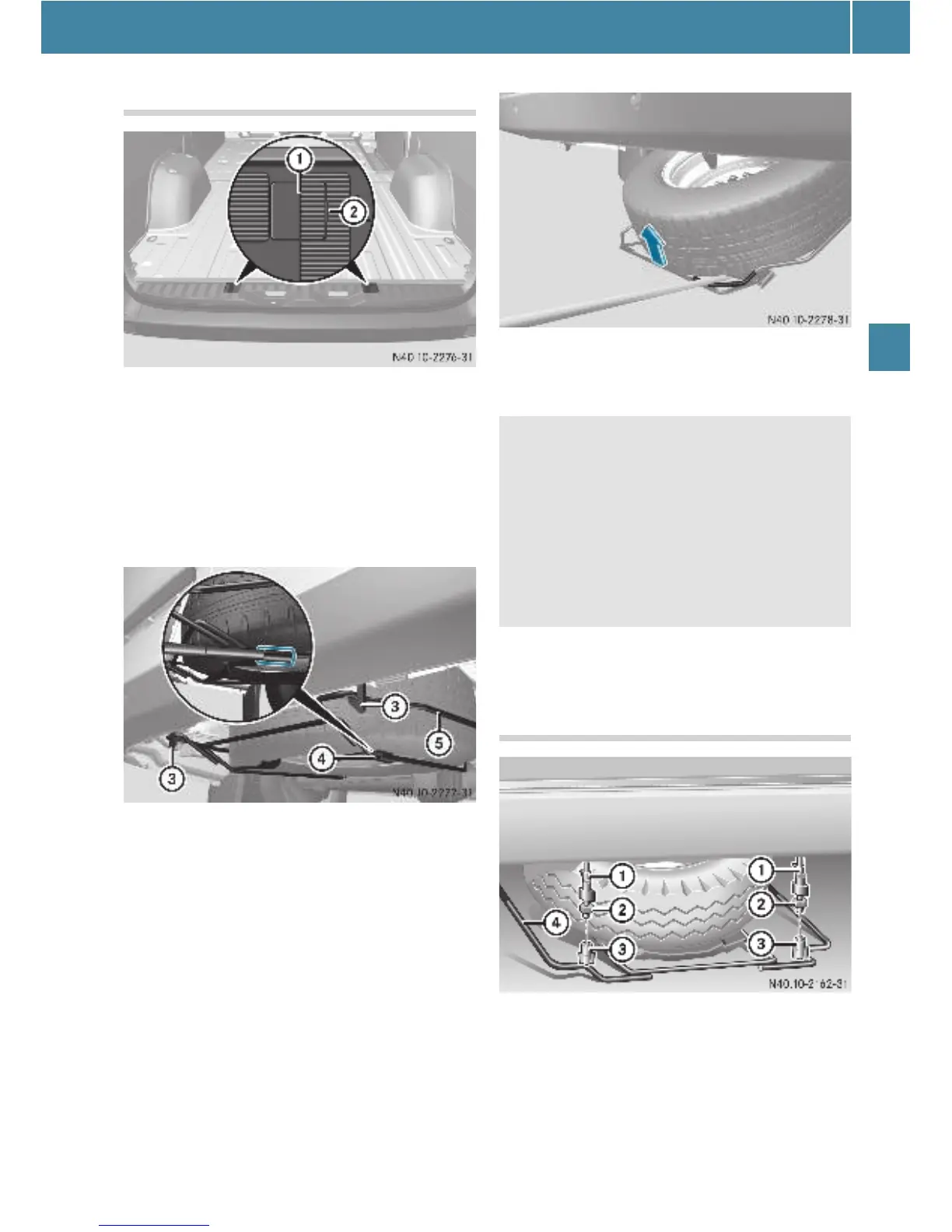

E Open the rear doors.
E Insert a screwdriver into recesses 2
and pry off covers 1.
E Using the wheel wrench from the vehi-
cle tool kit (e page 204), now unscrew
the visible bolts approximately
20 turns counterclockwise.
E Raise spare wheel bracket 5 slightly
and release left securing hook 3.
E Assemble the pump lever for the jack
and slide it into sleeve 4 on spare
wheel bracket 5.
E Raise spare wheel bracket 5 using the
pump lever and release right securing
hook 3.
E Slowly lower spare wheel bracket 5 to
the ground.
E Raise spare wheel bracket 5 slightly
and pull the pump lever out of
sleeve 4.
E Use the pump lever to raise the spare
wheel beyond the rear end of the spare
wheel bracket.
E Carefully remove the spare wheel from
the bracket.
Chassis
E Loosen thumb nuts 3 by hand and re-
move.
E Loosen fixing nuts 2 to the thread
end.
E Raise spare wheel bracket 4 slightly
and release left securing hook 1.
G Warning
When the spare wheel is removed, the center
of gravity changes due to the heavy weight of
the wheel. The spare wheel could slip off or
tip and cause injury to you or others. Pull the
spare wheel out carefully.
Take care not to trap your fingers when lifting
out the spare wheel.
