Fuji Electric FRENIC-MEGA - Example of Sequence Circuit

5-71

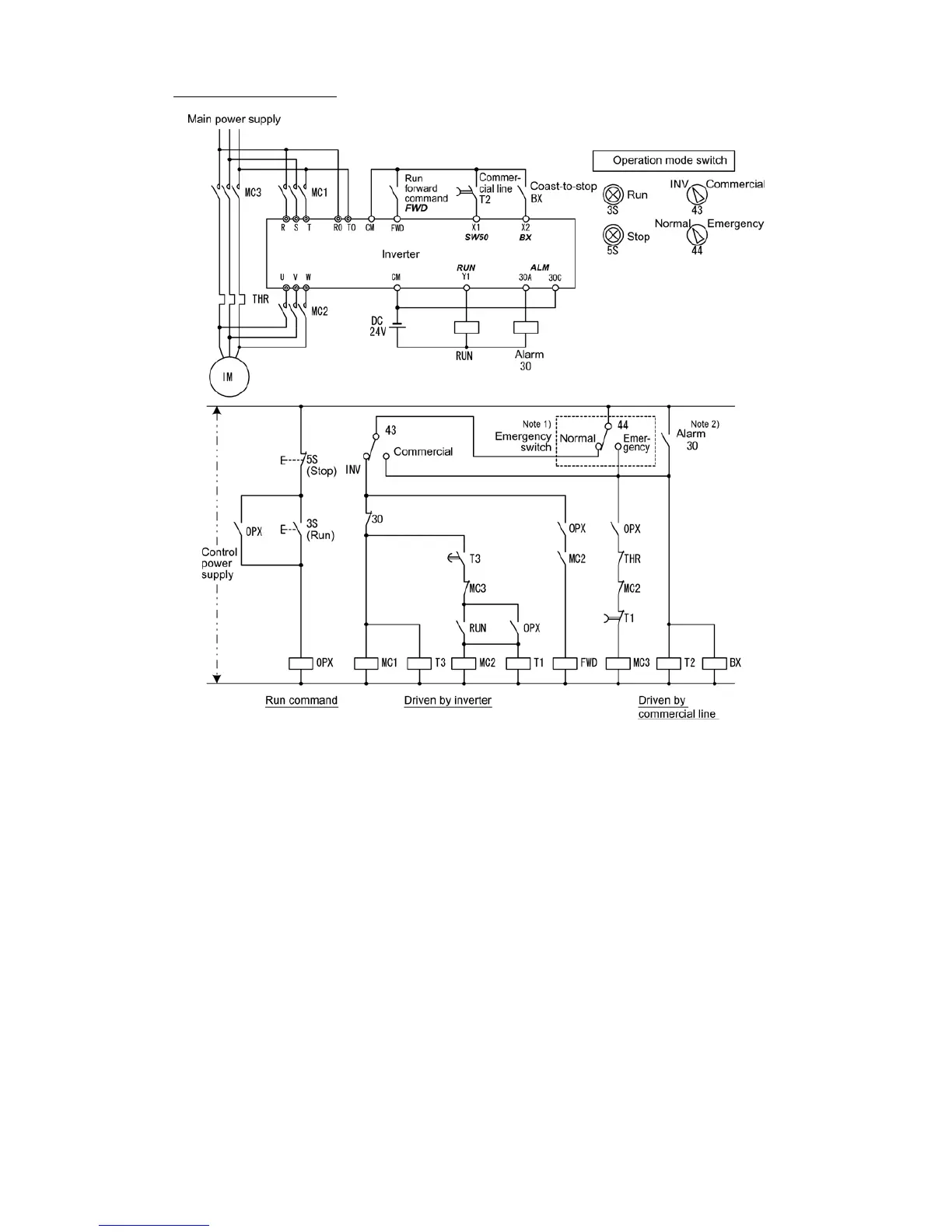

Example of Sequence Circuit
Note 1) Emergency switch
Manual switch provided for the event that the motor drive source cannot be switched normally to the
commercial power due to a serious problem of the inverter
Note 2) When any alarm has occurred inside the inverter, the motor drive source will automatically be switched to the
commercial power.
