1-2
Chap. 1
BEFORE USING THE INVERTER

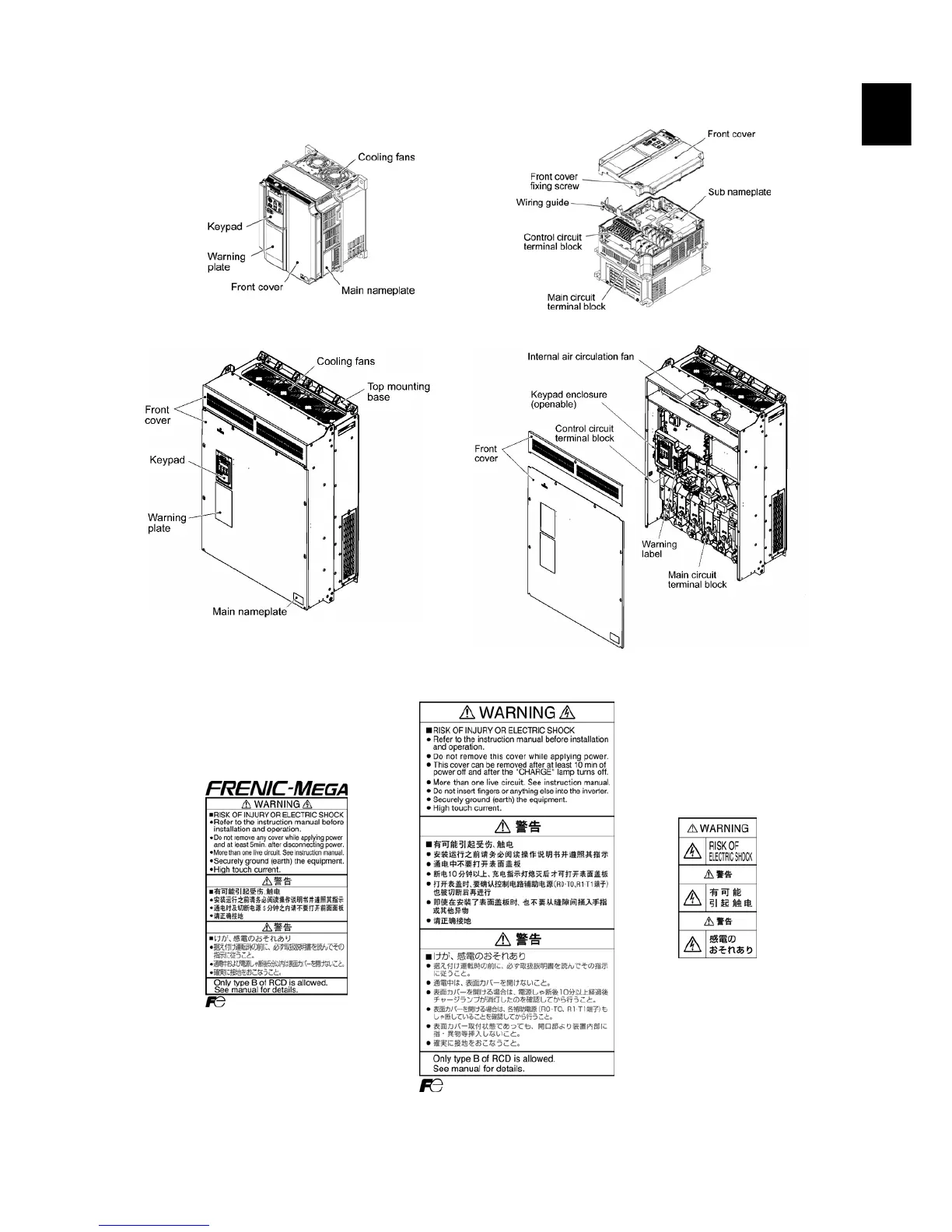

1.2 External View and Terminal Blocks
(1) Outside and inside views
(a) FRN11G1
-4
(b) FRN220G1
-4
Figure 1.2 Outside and Inside Views of Inverters
(2) Warning plates and label
(a) FRN11G1
-4 (b) FRN220G1
-4
Figure 1.3 Warning Plates and Label
Note: A box (
) in the above figures replaces S or E depending on the enclosure.
A box (
) in the above figures replaces A or E depending on the shipping destination.
