2.4 Mounting and Connecting a Keypad
You can mount a keypad on the panel wall or install one at a remote site (e.g. for operation on hand).

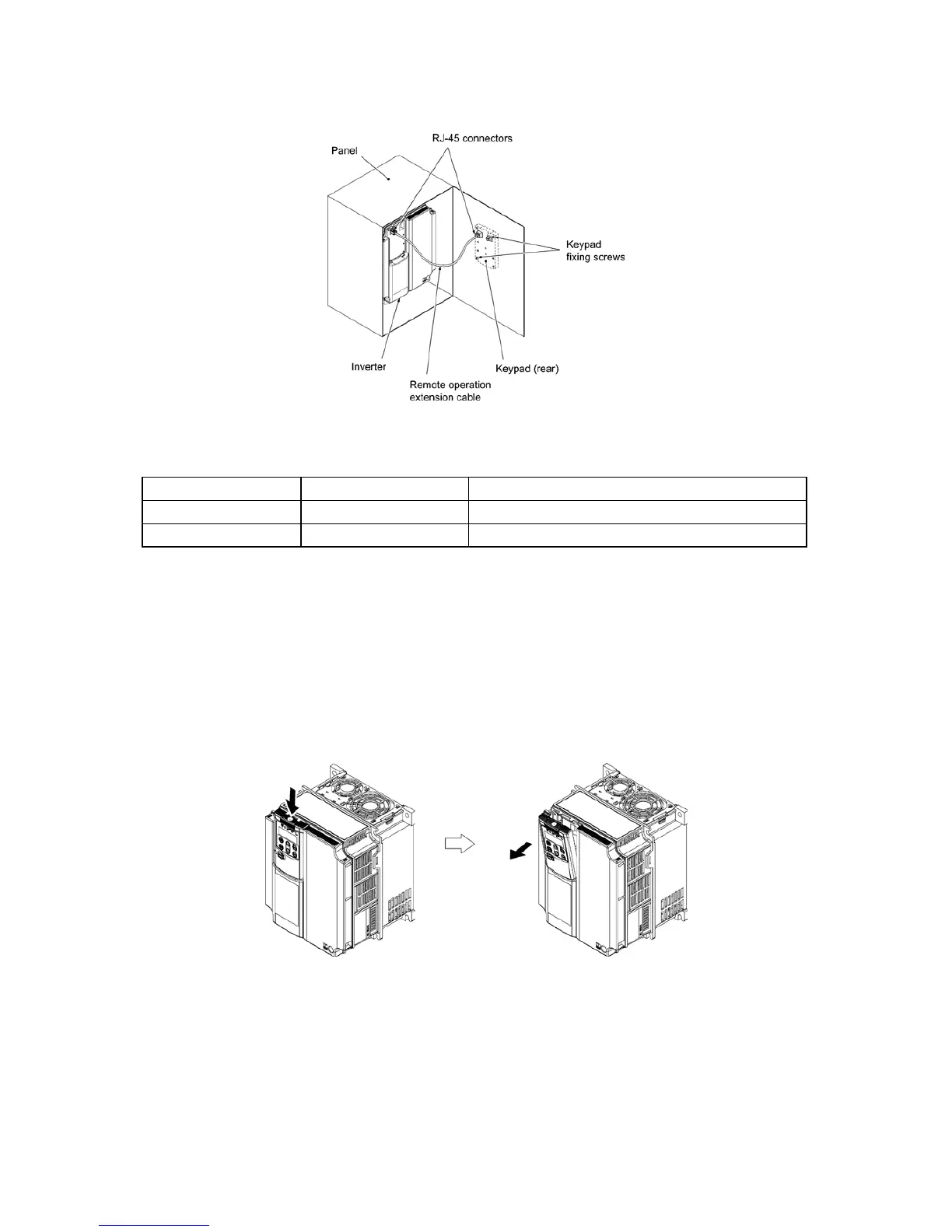

Figure 2.21 Mounting a Keypad on the Panel Wall
To mount/install a keypad on a place other than in an inverter, the parts listed below are needed.
Parts name Model Remarks
Extension cable (Note 1) CB-5S, CB-3S and CB-1S 3 types available in length of 5 m, 3 m, and 1 m.
Fixing screw M3 ×
(Note 2) Two screws needed. Purchase off-the-shelf ones separately.
(Note 1) When using an off-the-shelf LAN cable, use a 10BASE-T/100BASE-TX straight type cable compliant with US
ANSI/TIA/EIA-568A Category 5. (Less than 20m)
Recommended LAN cable
Manufacturer: Sanwa Supply Inc.
Model: KB-10T5-01K (1 m)
KB-STP-01K: (1 m) (Shielded LAN cable)
(Note 2) When mounting on a panel wall, use the screws with a length suitable for the wall thickness.
(Depth of the screw holes on the keypad is 11 mm.)
Removing and mounting a keypad
To remove the keypad, pull it toward you while holding down the hook (pointed by the arrow in Figure 2.22). When
mounting it, put the keypad back into place in the reverse order of removal.
Figure 2.22 Removing a Keypad
