6.6
High-S
peed Serial Communication
-Capable
T
erminal Block
6-125
Chap. 6
CONTROL
OPTIONS

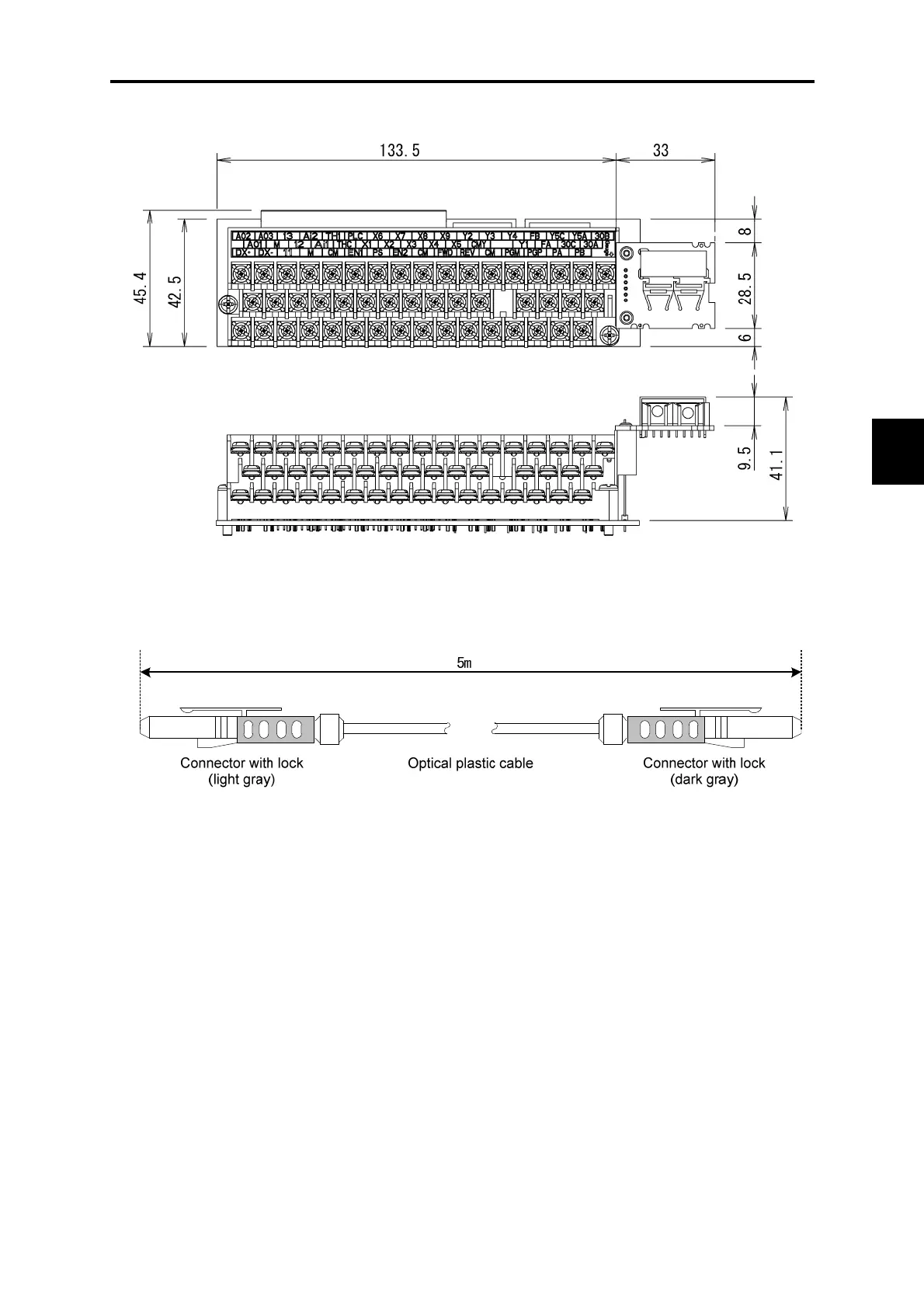

6.6.3 External
dimensions
(Unit: mm)
Figure
6.6.2 External
Dimensions
of
Option
Figure 6.6.3
Plastic Opti
cal Fiber Cable (Accessory)
200
202
