Fuji Electric FRENIC-VG Series - Wiring Length in MD Specification; Wiring Length in LD Specification

6-152
Composition of inverter and wire length of motor power line for direct parallel connection for motor capacity are
described below.
However, combination other than as given in the chart may be used for direct parallel connection. Please feel
free to contact us.
6.6.12.1 Wiring length in MD specification
Table 6.6.22 Rating in Direct Parallel Connection
(MD Specification)
Motor specification Rating specification in direct parallel connection
Current
specification
Rated
capacity
[kW]
Rating
[A]
Overload
[A]
INV type
FRN-4
No. of
units
Rated
current
[A]
Wiring
length
[m]
Fig.
355 650 975 200SVG1 x 2 716 14.6 (a)
400 740 1110 220SVG1 789 13.2
500 960 1440 280SVG1 988 12.0
630 1170 1755 220SVG1 x 3 1183 17.6 (b)
710 1370 2055 280SVG1 1482 15.6
800 1480 2220 14.1
1000 1850 2775 630BVG1 x 2 2223 4.7 (c)
1200 2220 3330
1500 2775 4163 800BVG1 2812 4.0
1800 3330 4995 630BVG1 x 3 3335 6.3 (d)
2000 3700 5550 710BVG1 3905 5.3
2400 4218 6327 800BVG1 4218 4.9
6.6.12.2 Wiring length in LD specification
Table 6.6.23 Rating in Direct Parallel Connection
(LD Specification)
Motor specification Rating specification in direct parallel connection
Current
specification
Rated
capacity
[kW]
Rating
[A]
Overload
[A]
INV type
FRN-4
No. of
units
Rated
current
[A]
Wiring
length
[m]
Fig.
400 740 1110 200SVG1 x 2 789 13.2 (a)
500 960 1440 250SVG1 988 12.0
630 1170 1755 315SVG1 1235 17.6
710 1370 2055 250SVG1 x 3 1482 17.6 (b)
800 1480 2220 250SVG1 15.6
1000 1850 2775 315SVG1 1853 14.1
1200 2220 3330 630BVG1 x 2 2603 4.7 (c)
1500 2775 4163 710BVG1 2812
1800 3330 4995 800BVG1 3515 4.0
2000 3700 5550 630BVG1 x 3 3905 6.3 (d)
2400 4218 6327 710BVG1 4218 5.3
3000 5178 5695 800BVG1 5273 4.9

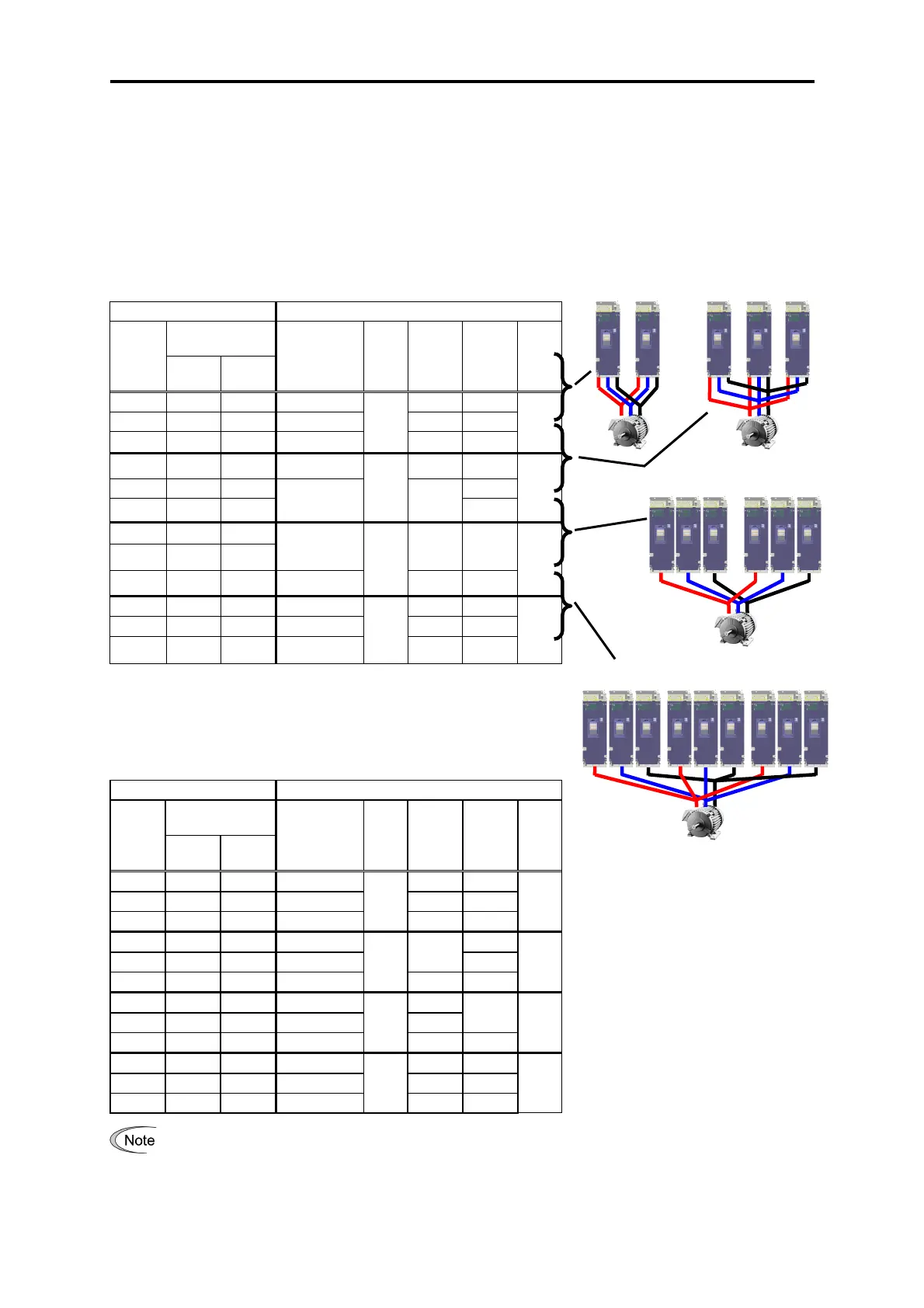

Figure 6.6.15
Explanation diagram
The electric wire sizes are specified by recommended electric wire sizes (FLSC electric wires) in the
case of atmospheric temperature of 40°C or lower in Chapter 4. When significantly different electric
wire sizes or cabtire cables/shielded wires are used, wiring length should be reconsidered as inductance
of power line change.
In identical power line size in cabtire radio shield wire, a long power line with approximately 3 times
the length shown in the chart should be used.
(a) Stack 2 units
U V W U V W
UVW U V W UVW
(c) Stack for each phase 2 units
(d) Stack for each phase 3 units
(b) Stack 3 units
