6.12 DIO Expansion Card
6-227
Chap. 6
CONTROL OPTIONS
(6) UPAC function
Optional I/O points will be operable through the program for the UPAC option if DIOB is selected.
Optional I/O points will be operable in the same manner if DIOA is selected. Therefore, up to 20 DI
points and 18 DO points will be operable if two DIO expansion cards as options are used and one of the
expansion cards is set to DIOA and the other one is set to DIOB. This means that the operation of up to
31 DI points and 23 DO points will be available to a single FRENIC-VG unit with consideration of the
number of built-in I/O points.
The two DIO expansion cards mounted cannot be both set to DIOA or DIOB. If such settings are made,
operating procedure alarm
er6
will result.
6.12.2 Models and specifications
6.12.2.1 Models
• An UPAC option will be required if an optional DIO expansion card is set to DIOB (16 DI points and 10 DO
points). The standard I/O functions of the FRENIC-VG will be available if the optional DIO expansion card is
set to DIOA.
An optional DIO expansion card for the FRENIC-VG incorporates a hardware switch (SW1), with which
DIOA or DIOB will be selectable according to the application.
Model legend: OPC-VG1
-DIO
Accessories
Plug (Model: Sumitomo 3M's 10136-3000VE for 36 pins)
Housing (Model: Sumitomo 3M's 10336-52F0-008 for 36 pins)
Spacer: 3
Screw (M3): 3
[Mounting restrictions]
(1) Mountable combinations
• Two optional DIO expansion cards will be mountable if one of them is set to DIOA and the other
one is set to DIOB.
• Use the optional UPAC card as well in the case of making DIOB settings.

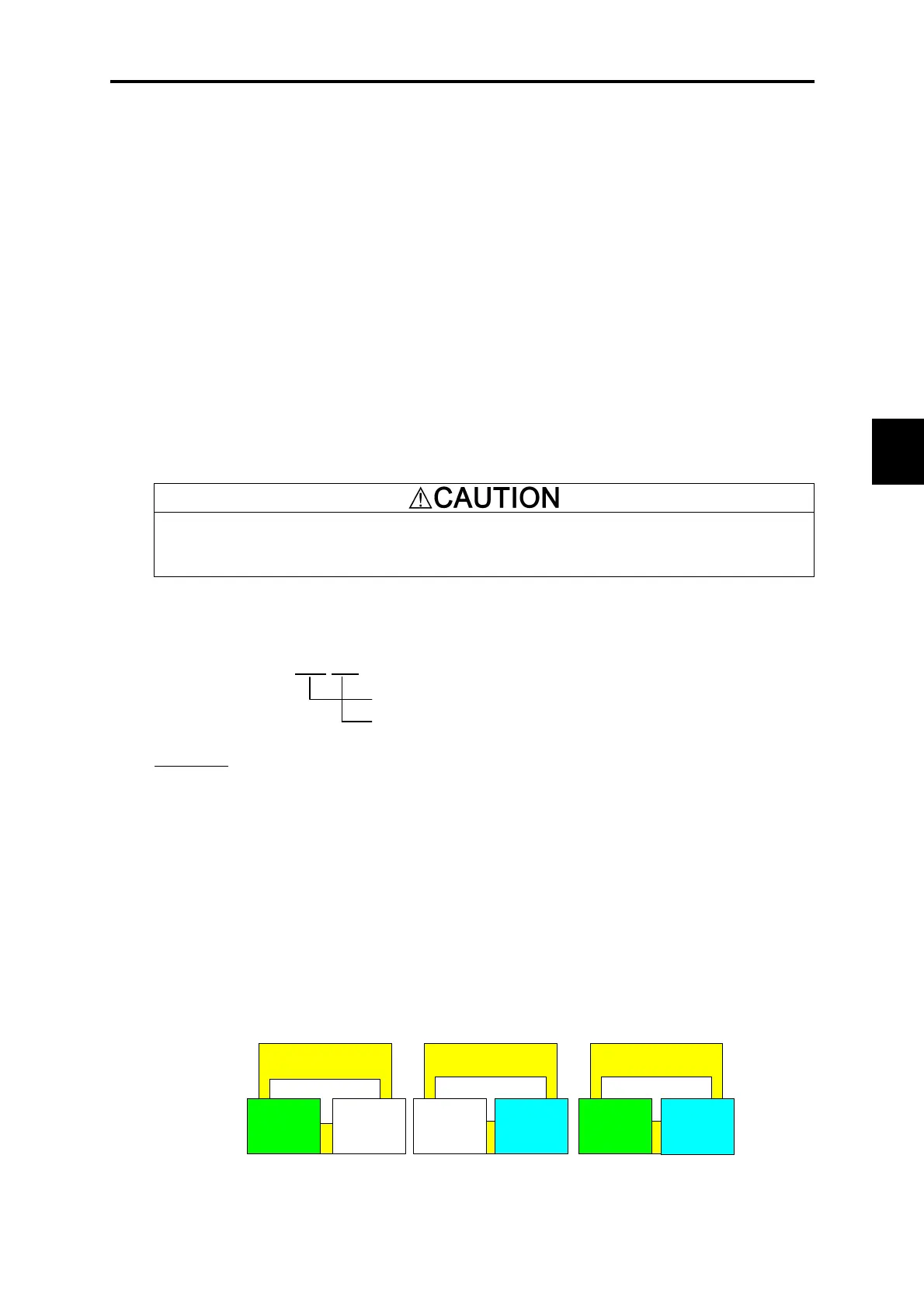

Figure 6.12.1
Name of inverter mounted: VG1→ FRENIC-VG
Name of option: DIO → Digital I/O option
FRENIC-VG
OPC-VG1-UPAC
OPC-VG1-DIO
(DIOA)
OPC-VG1-DIO
(DIOB)
FRENIC-VG FRENIC-VG
OPC-VG1-UPAC
OPC-VG1-DIO
(DIOB)
Reserved
OPC-VG1-DIO
(DIOA)
Reserved Reserved
