6.7 CC-Link Interface Card
6-153
Chap. 6
CONTROL OPTIONS

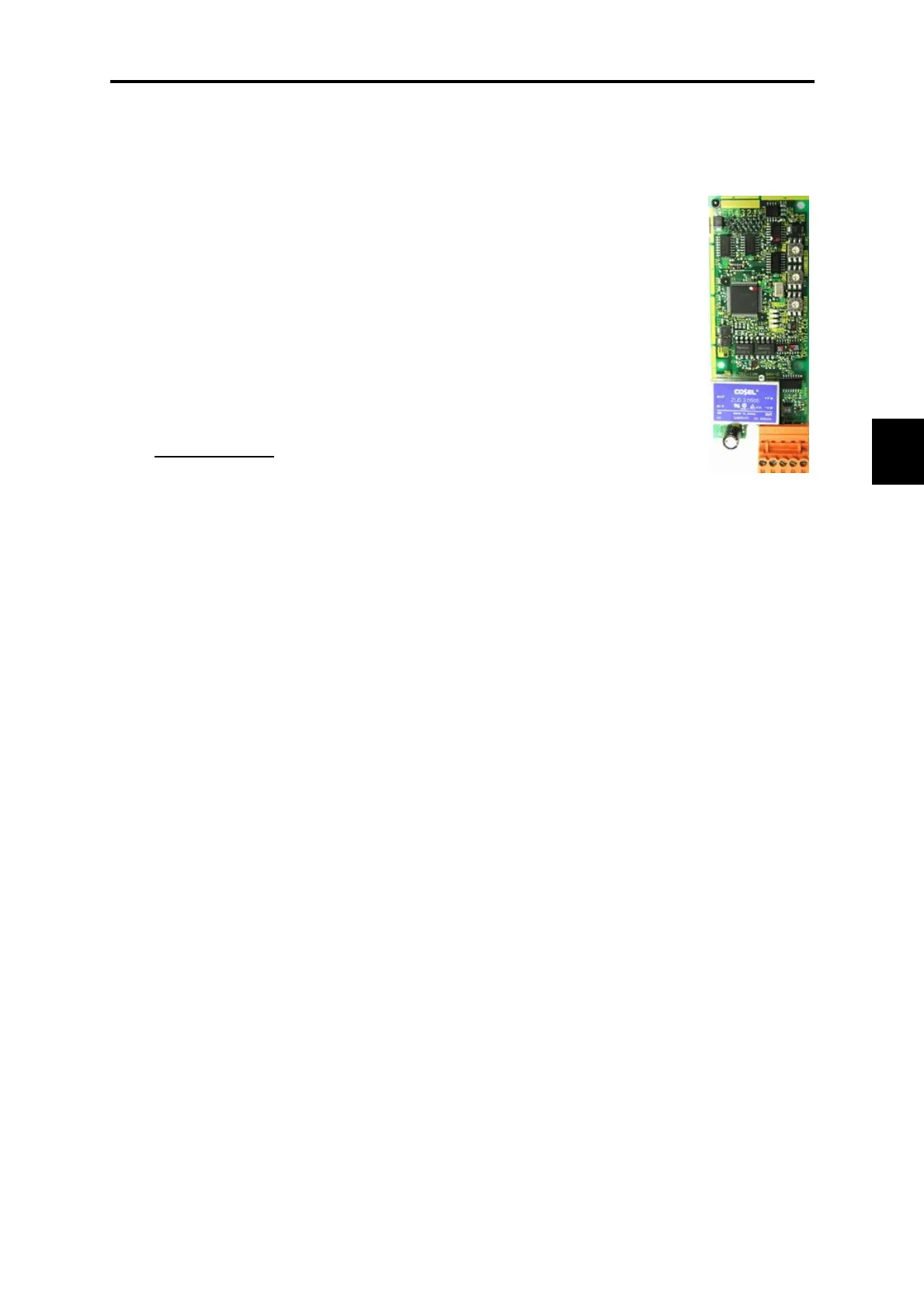

6.7 CC-Link Interface Card OPC-VG1-CCL
6.7.1 Product overview
This card is used for a CC-Link master (Mitsubishi Electric PLC, etc.) to
control FRENIC-VG via CC-Link.
CC-Link is an abbreviation of Control & Communication Link developed by
Mitsubishi Electric Corporation as a next generation FA field network. The
CC-Link system connects input/output units, special function units (e.g.,
inverter), etc., via dedicated cables, allowing the CPU for PLC to control such
units. The CC-Link system can achieve wire-saving and high-speed data
communications.
Major application
This card is available for the following.
・ Applicable for CC-Link Ver. 1.10 and Ver. 2.00
・ Supports new FRENIC-VG mode and existing FRENIC5000VG7 compatible mode
・ Input of signals for operation, stop, etc.；FWD, REV, X1 to X9, X11 to X14, RST
・ Setting of speed commands; 16-bit binary data
・ Monitoring running status (bit data)
Running forward, running reverse, with speed, speed match, arrival at speed, speed detection,
operation preparation completed, alarm relay output, during monitoring, speed setting completed,
command code execution completed, alarm state, remote station ready
・ Monitoring motor speed; 16-bit binary data
・ Monitoring running status (Word data)
Speed command, output frequency, torque command value, output current, output voltage,
cumulative run time, etc.
・ Reference/change of function codes
