TX100 S3 Core Edition Upgrade and Maintenance Manual 107
System fan modules

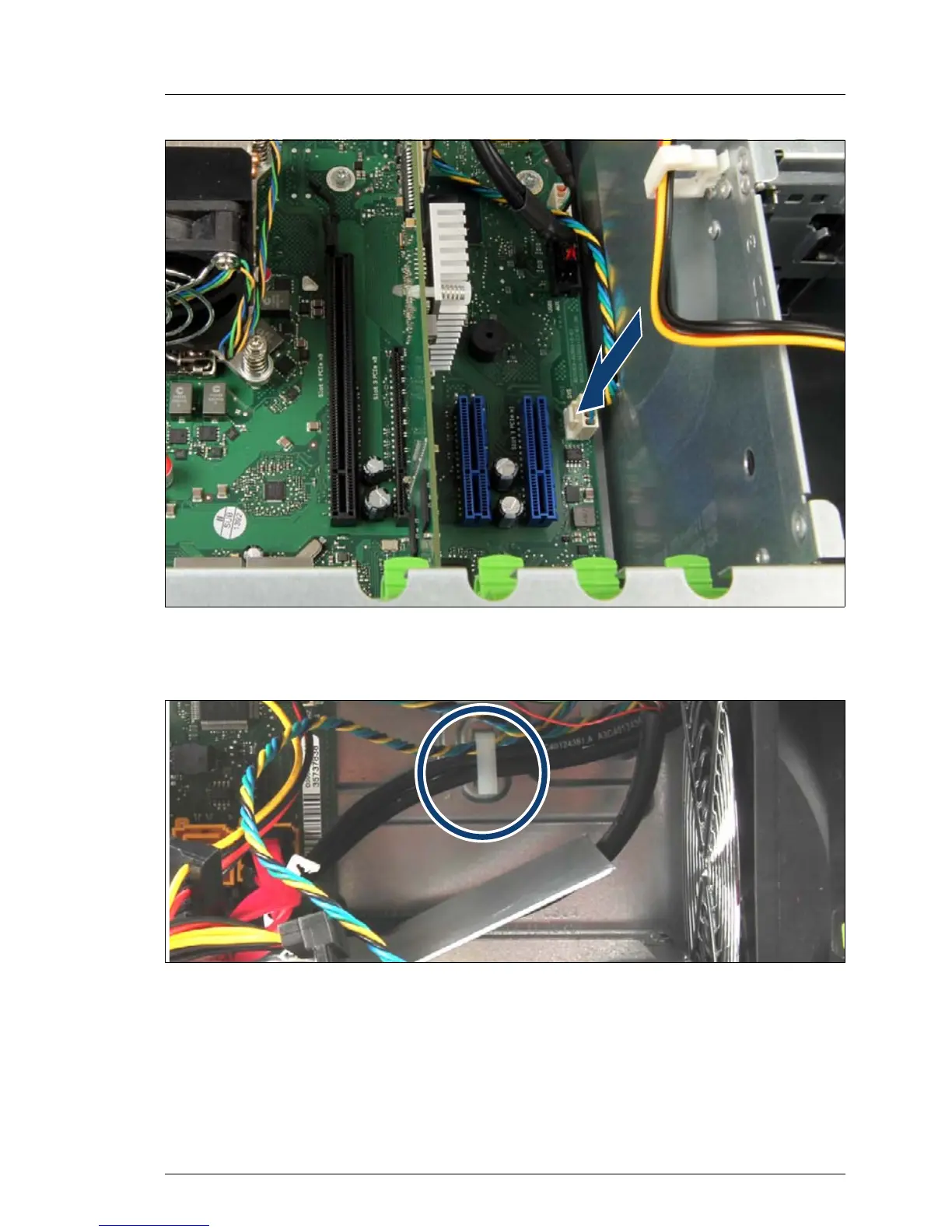

Figure 56: Connecting the fan cable
Ê Connect the fan cable to system board connector FAN1 SYS.
Figure 57: Cable clamp of the fan cable
Ê Open the cable clamp and insert the fan cable.
Ê Close the cable clamp.
