120 Upgrade and Maintenance Manual TX100 S3 Core Edition
Main memory
10.1 Basic information
– The system board is equipped with four memory slots.
– The system has to be equipped with at least one memory module. Populate
memory slot 1 / channel A (DIMM-1A) first.
– Supported memory modules:
DDR3-1333 PC3-10600 unbuffered single rank (SR) or dual rank (DR)
UDIMM memory modules with ECC
– Supported capacities: 2 GB, 4 GB or 8 GB.
– Maximum amount of RAM: 32 GB
10.1.1 Memory sequence
– Populate memory slot 1 / channel A (DIMM-1A) first.
– Within both channels, memory slot 1 must be populated prior to slot 2.
– If memory modules with different capacities are used:
– Install modules with higher capacities first.
– Within a channel, install modules in descending order of capacity.
– If memory modules with different speeds are used, the lowest clock rate
applies for all DIMMs.

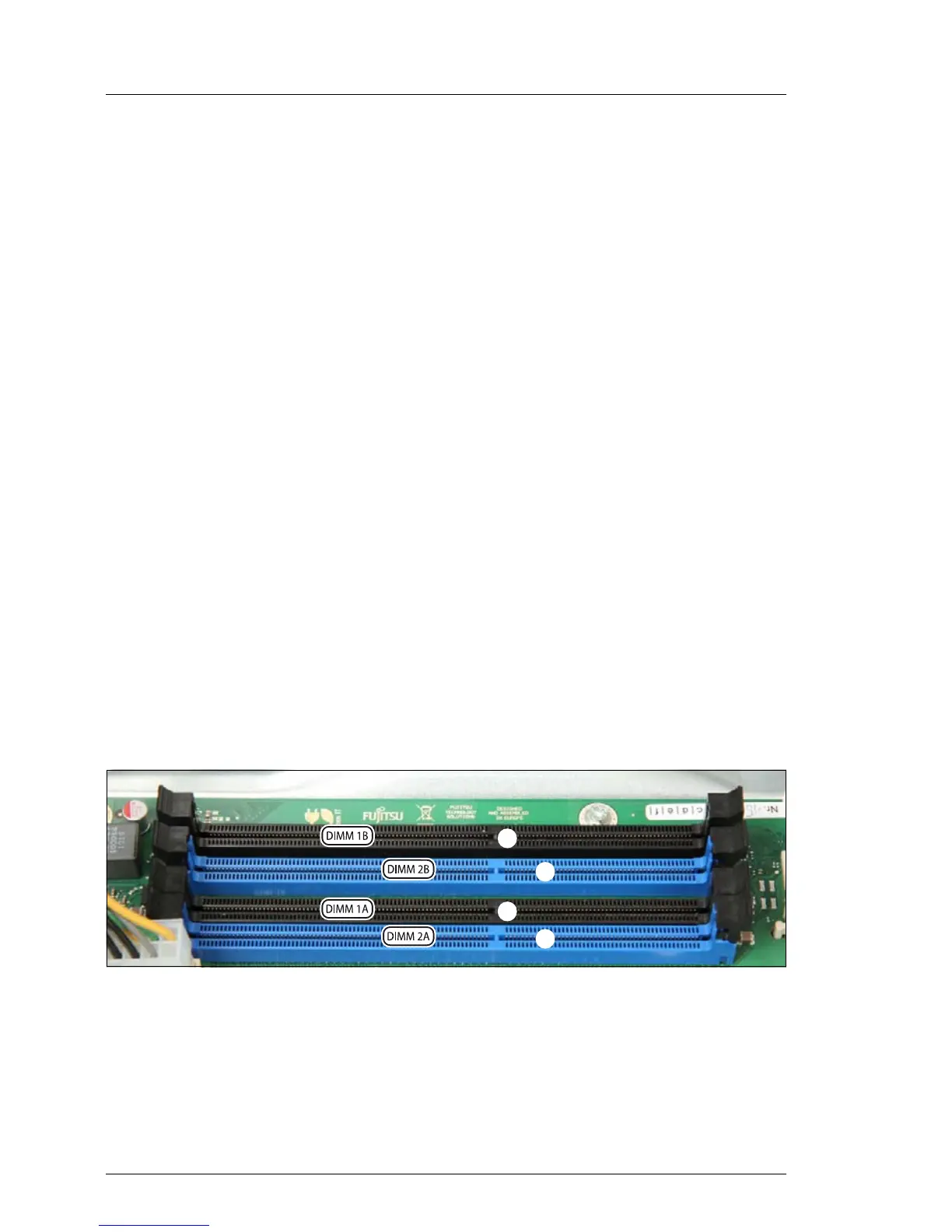

Figure 65: Memory overview
/
