TX100 S3 Core Edition Upgrade and Maintenance Manual 49
Basic hardware procedures
4.3.3 Removing the front cover

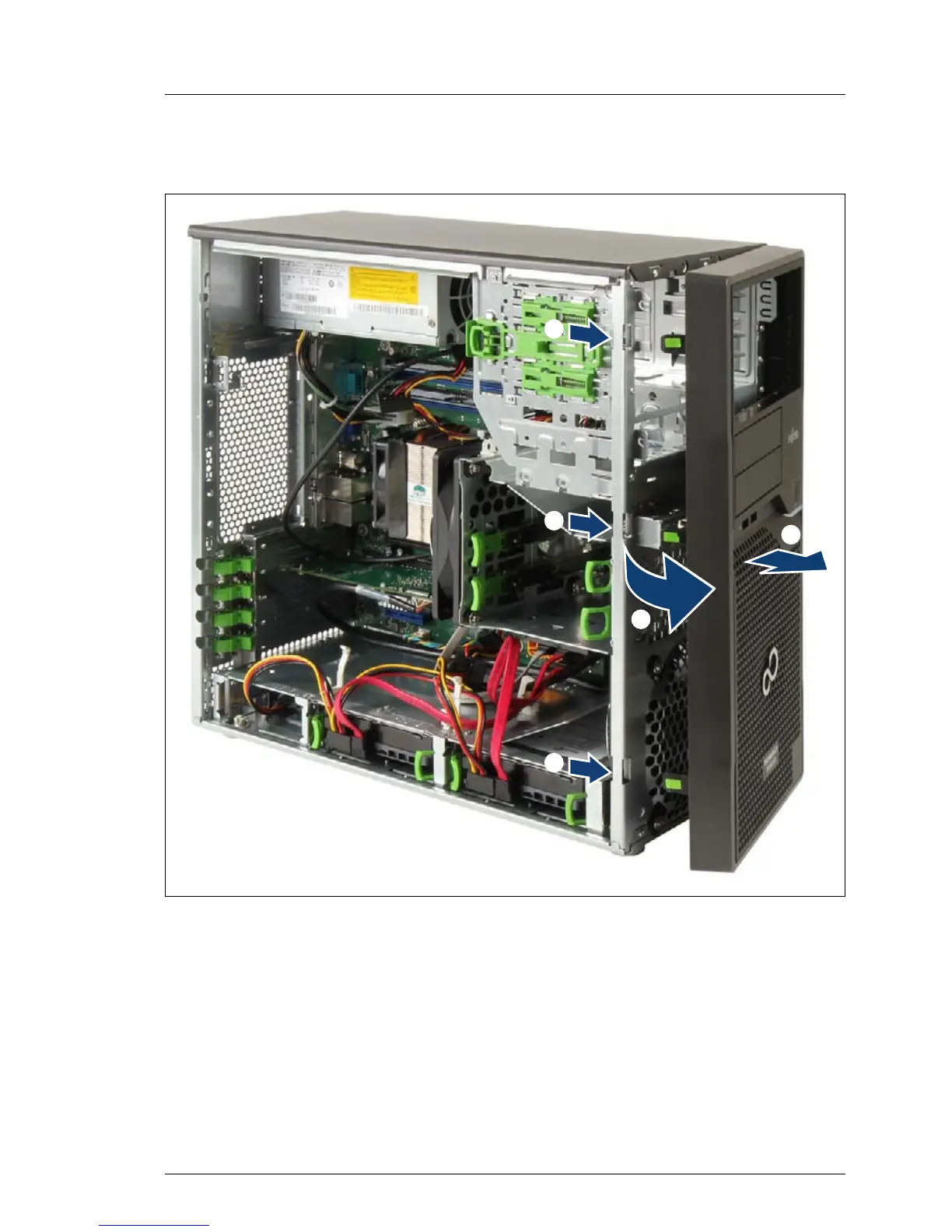

Figure 10: Removing the front cover
Ê Disengage the three locking tabs on the front cover (1).
Ê Carefully rotate open (2) and unhook the front cover (3).
/
/
/
