Basic hardware procedures
4.7 Removing the HDD cage
4.7.1 Preliminary steps
Before replacing the system fan module, perform the following steps:
Ê Shut down the server as described in section "Shutting down the server" on
page 40.
Ê Remove the AC power cord from the cable tie and disconnect it from the
system as described in section "Disconnecting the power cord" on page 41.
Ê Open the side cover as described in section "Removing the side cover" on
page 43.
Ê Remove the HDDs as described in section "Removing 3.5-inch HDDs" on
page 93.
I Ensure that all cables are uniquely identified so that you can reconnect
them into their original locations after concluding the task.

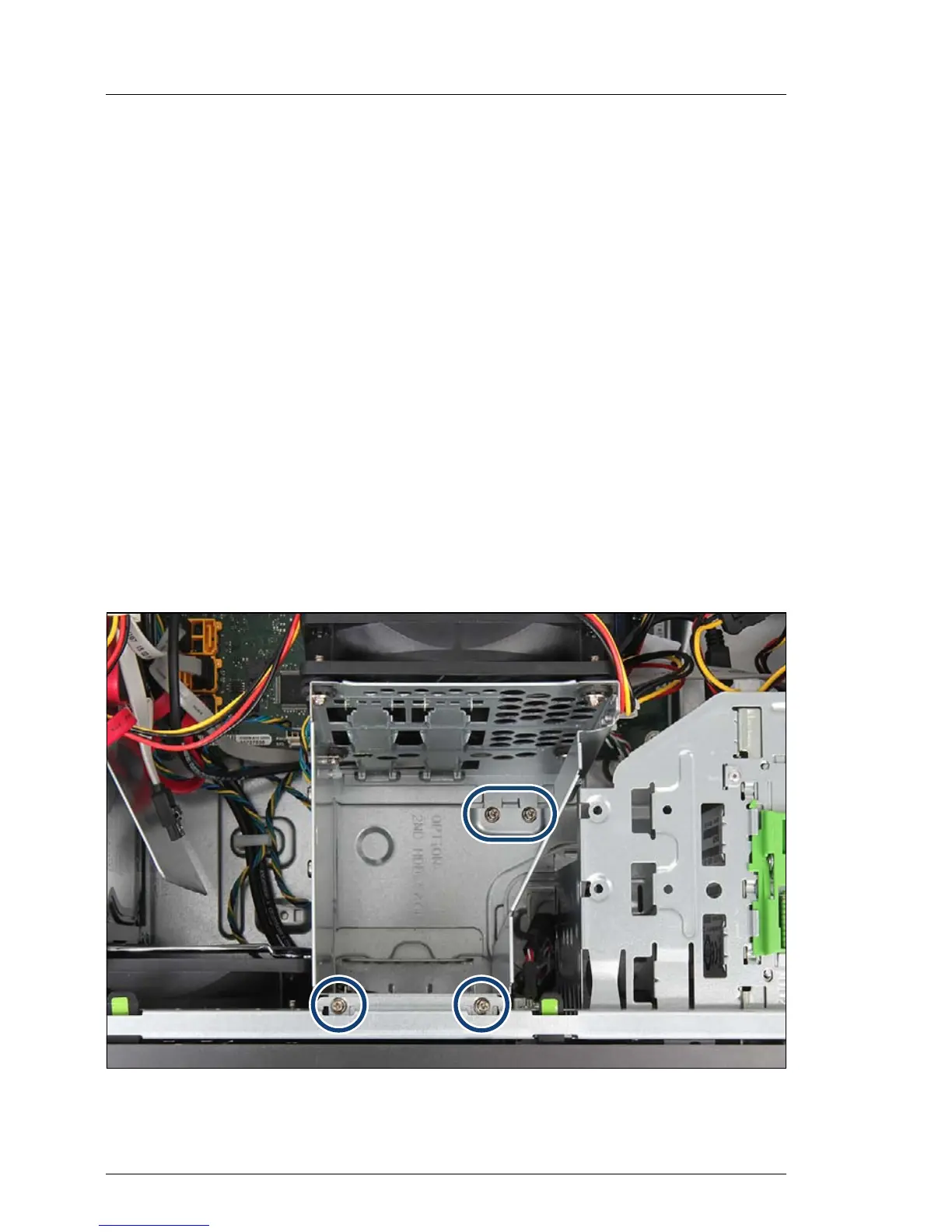

Figure 20: Removing the screws from the HDD cage
Ê Remove four screws from the HDD cage (see circles).
