TX100 S3 Core Edition Upgrade and Maintenance Manual 131
Processo
r
11.2.2 Preliminary steps
Before upgrading or replacing the processor, perform the following steps:
Ê Shut down the server as described in section "Shutting down the server" on
page 40.
Ê Remove the AC power cord from the cable tie and disconnect it from the
system as described in section "Disconnecting the power cord" on page 41.
Ê Bring the server to its horizontal position.
Ê Open the side cover as described in section "Removing the side cover" on
page 43.
11.2.3 Removing the processor heat sink

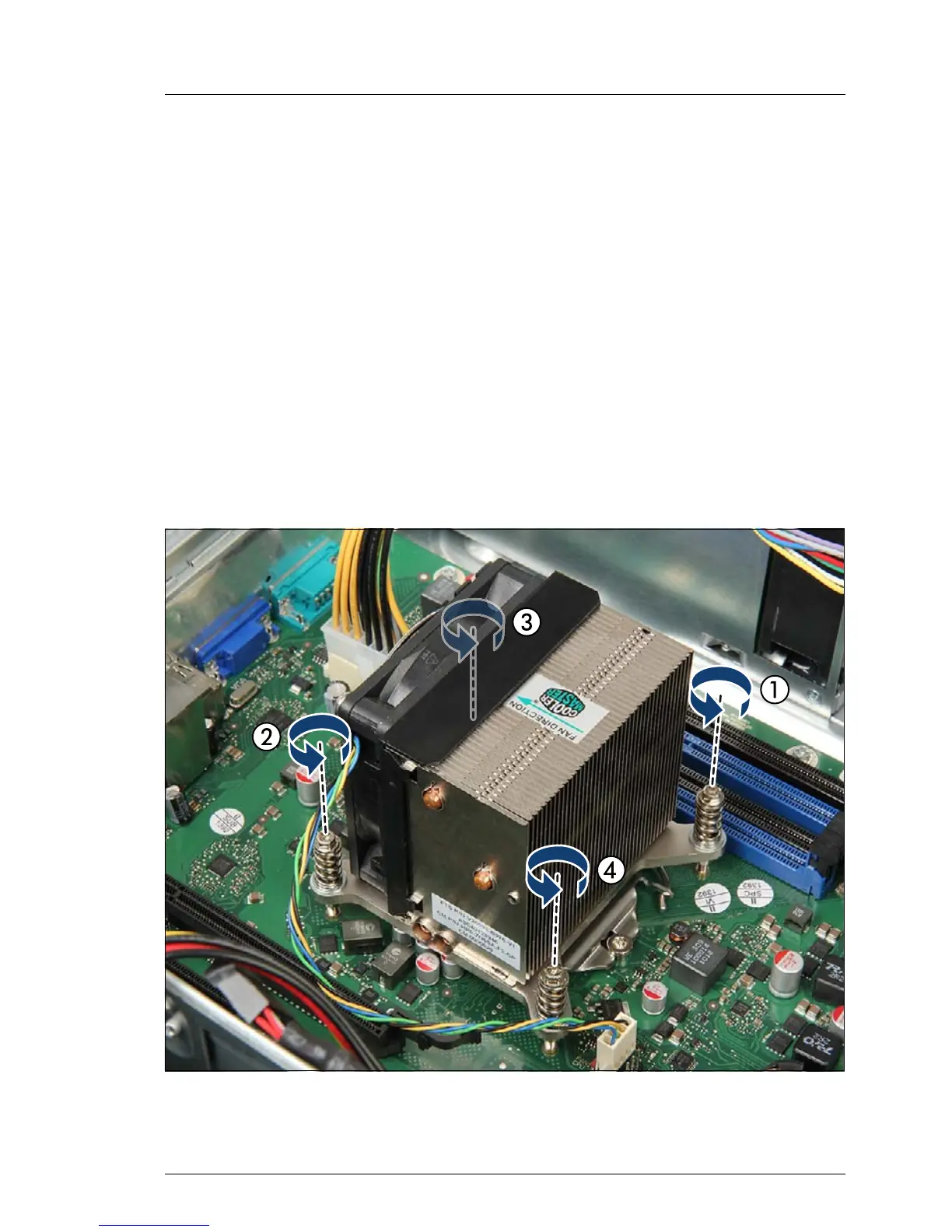

Figure 70: Removing the processor heat sink (A)
Ê Loosen the four captive screws on the heat sink in a crossover pattern (1-4).
