174 Upgrade and Maintenance Manual TX100 S3 Core Edition
Accessible drives
12.4.4 Replacing a backup drive
Ê Remove the defective backup drive as described in section "Removing a
backup drive" on page 166.

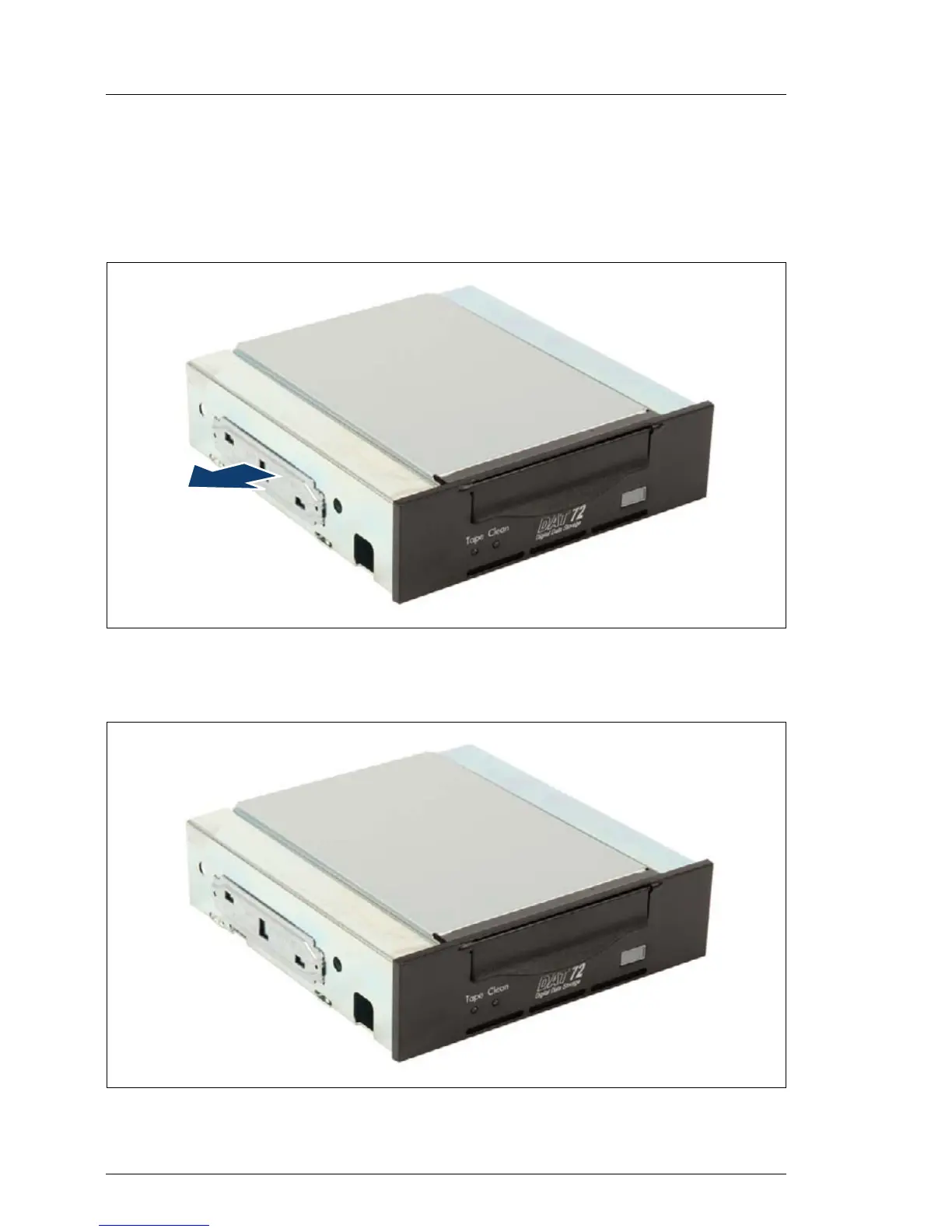

Figure 108: Removing the fixation plate
Ê Remove the fixation plate from of the left side of the backup drive.
Figure 109: Attaching the fixation plate to the backup drive
