Fujitsu PRIMERGY TX100 S3 Core Edition Upgrade And Maintenance Manual

TX100 S3 Core Edition Upgrade and Maintenance Manual 231
Cabling
15.3.3 Disconnecting/connecting the front USB cable

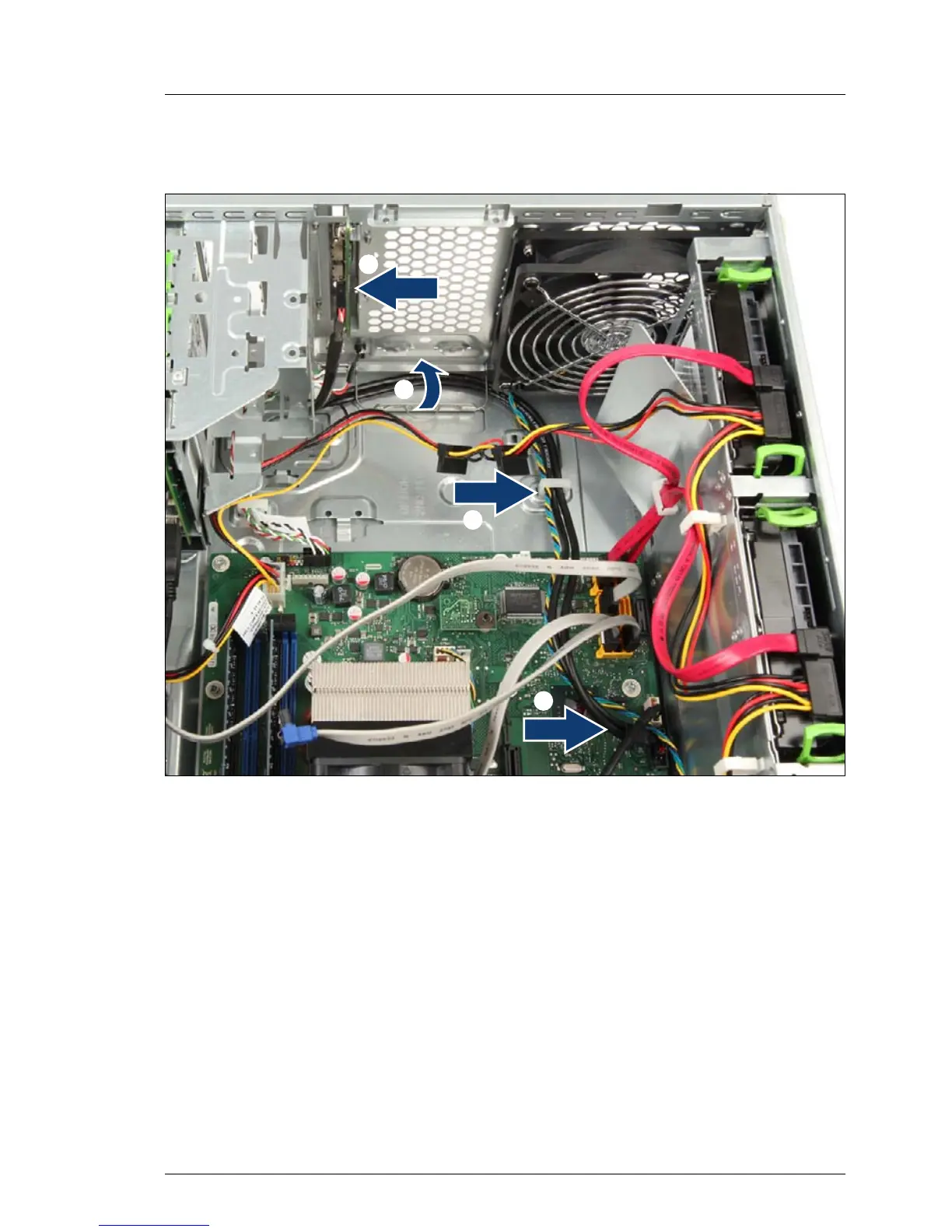

Figure 151: Replacing the front USB cable
Ê Open the cable clamp (1).
Ê Open the retaining bracket (2).
Ê Disconnect the defective front USB cable on the front USB module (3).
Ê Disconnect the defective front USB cable on the system board (4).
Ê Remove the defective front USB cable.
Ê Connect the new front USB cable on the front USB module (3).
Ê Connect the new front USB cable on the system board (4).
Ê Route the cable as shown and fasten it with the cable clamp (1) and the
retaining bracket (2).
/
0
1
2
