Fujitsu PRIMERGY TX100 S3 Core Edition Upgrade And Maintenance Manual

90 Upgrade and Maintenance Manual TX100 S3 Core Edition
Hard disk drives
7.2.4 Connecting cables

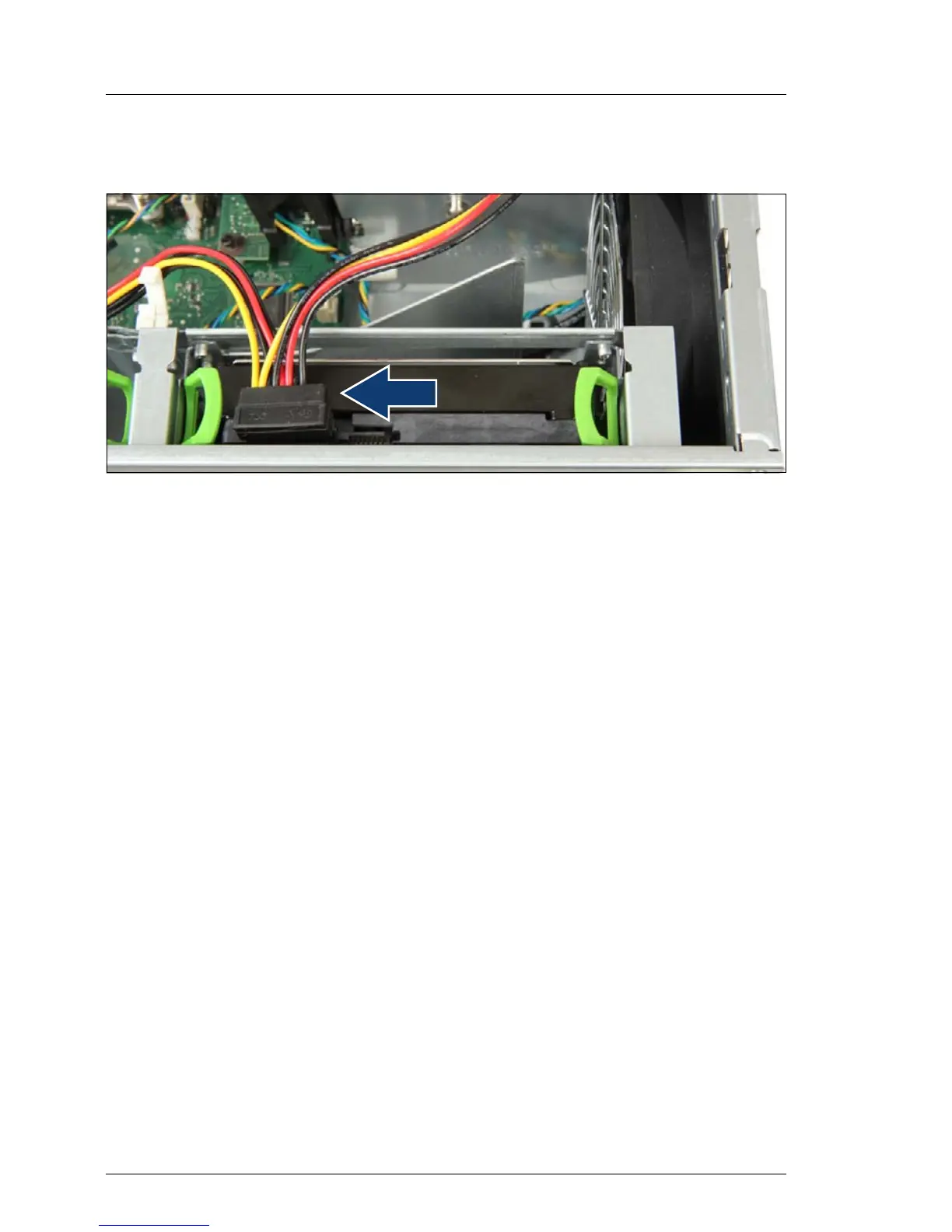

Figure 41: Connecting the power cable
Ê Connect the 15-pin SATA power connector P4 of the SATA power cable to
HDD 1.
I P5 is used for HDD 2
P6 is not used
P3 is used for HDD3
P2 is used for HDD4
Ê For further cabling information, please refer to section "Cabling" on
page 217.
