Fujitsu PRIMERGY TX100 S3 Core Edition Upgrade And Maintenance Manual

TX100 S3 Core Edition Upgrade and Maintenance Manual 157
Accessible drives
12.2.5 Installing a backup drive
12.2.5.1 Preparing the backup drive
Removing fixation plates from the chassis
I There are two fixation plates for accessible drives. You need one fixation
plate for an accessible drive to be installed.

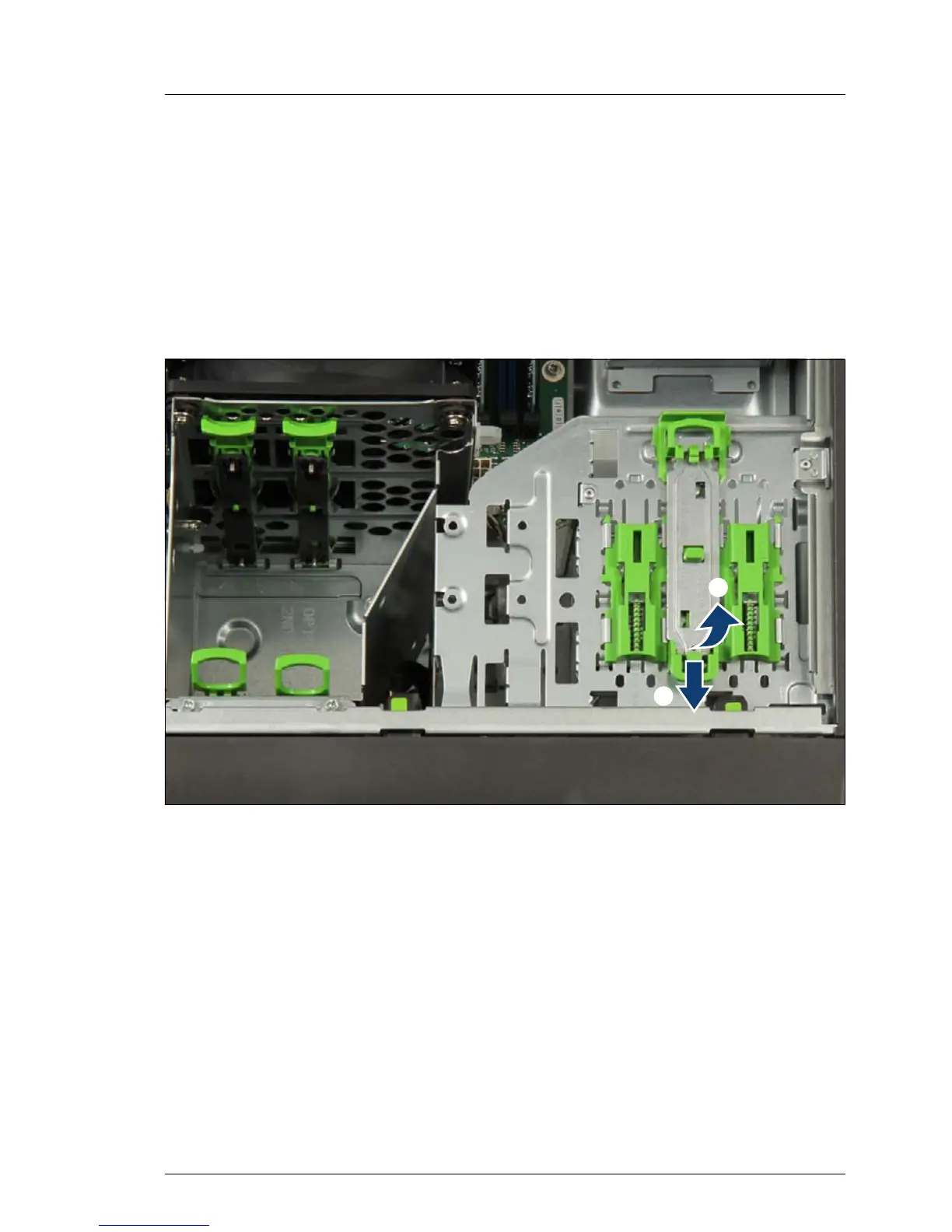

Figure 93: Removing the fixation plate from the chassis
Ê Pull out on the green handle (1).
Ê Lift up the fixation plate and remove it (2).
/
