TX100 S3 Core Edition Upgrade and Maintenance Manual 179
Front panel and external connectors
13.1.4 Removing the HDD activity LED

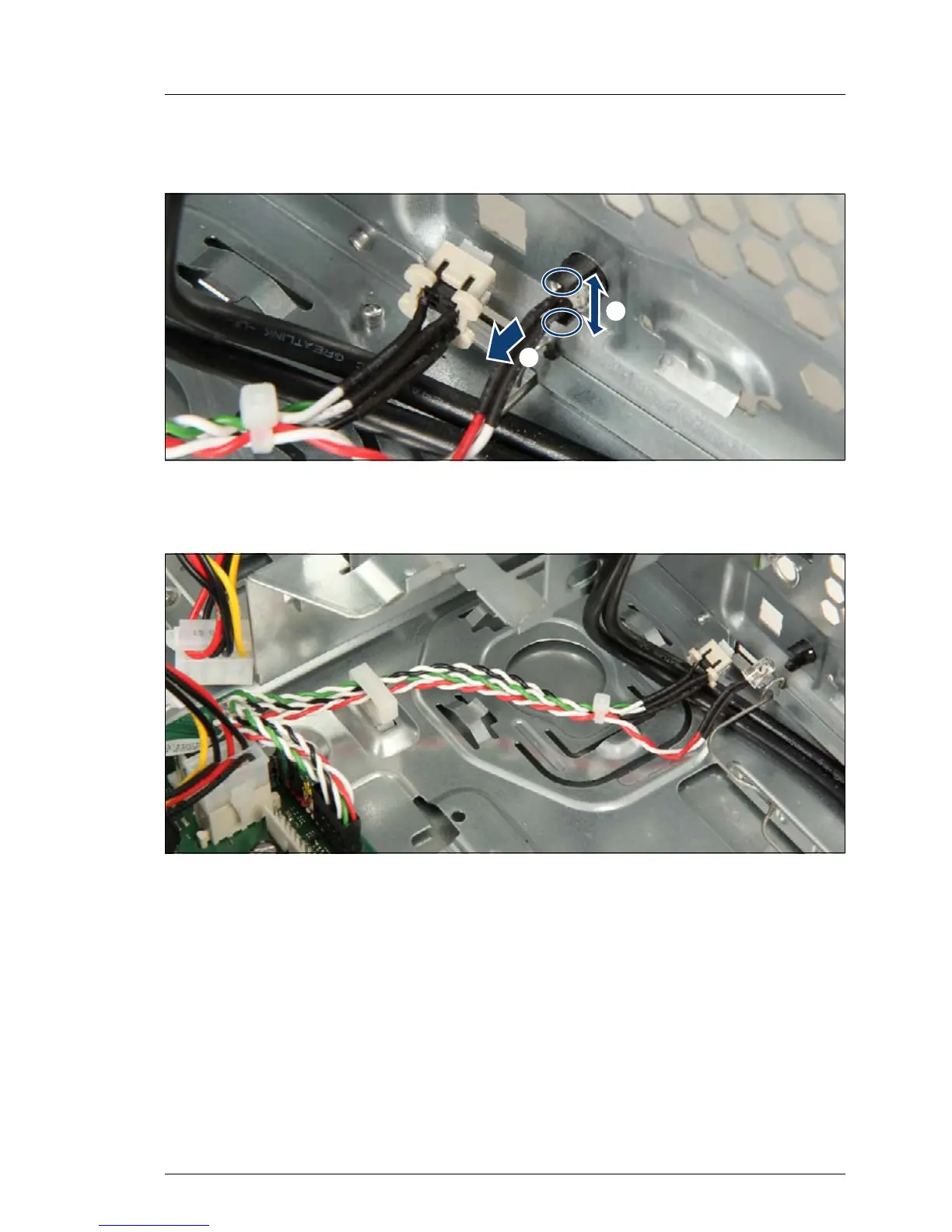

Figure 111: Removing the HDD activity LED
Ê Push apart the two locking latches (1) and pull the LED into the chassis (2).
Figure 112: On/Off button and LED removed
/
